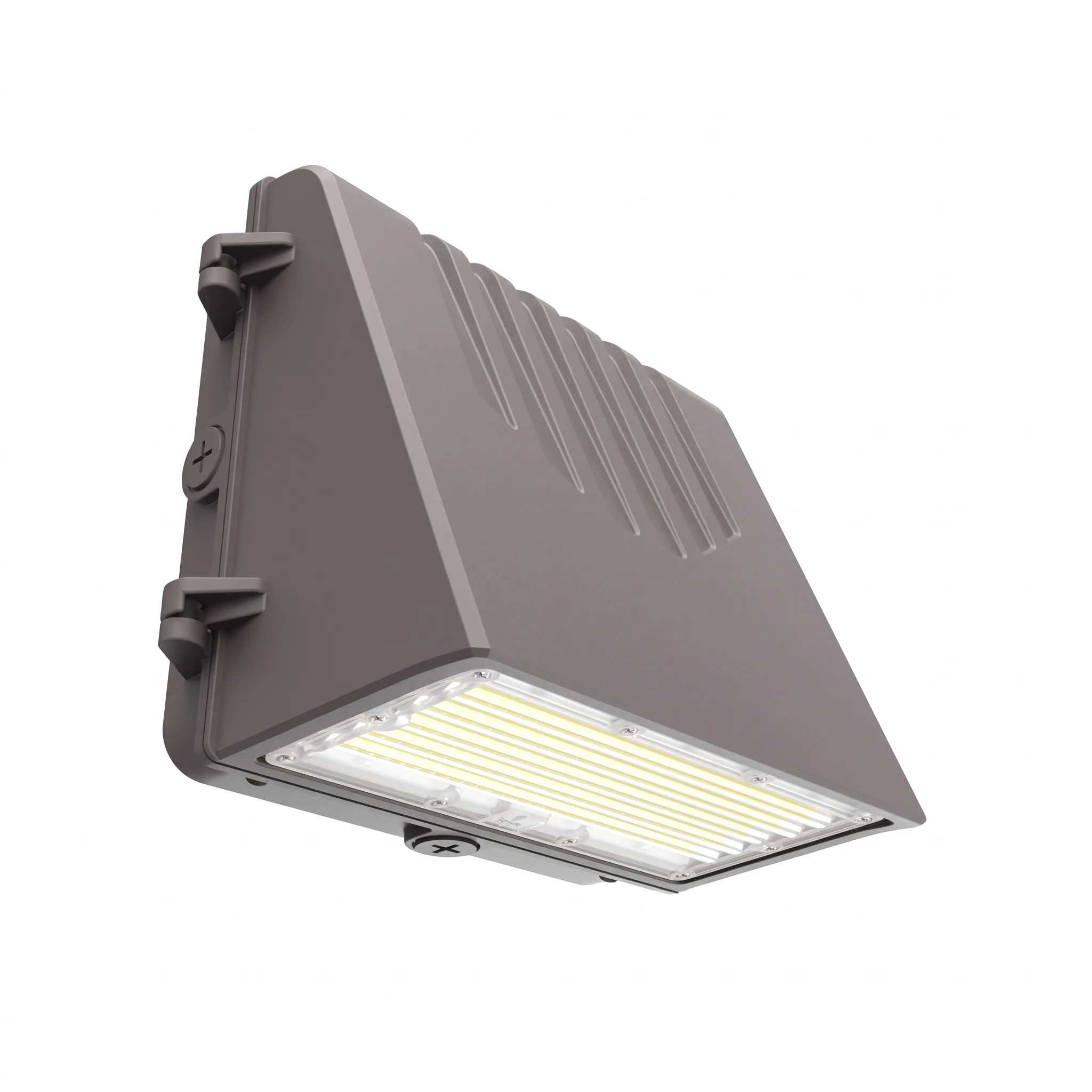

Wall Pack Edge.

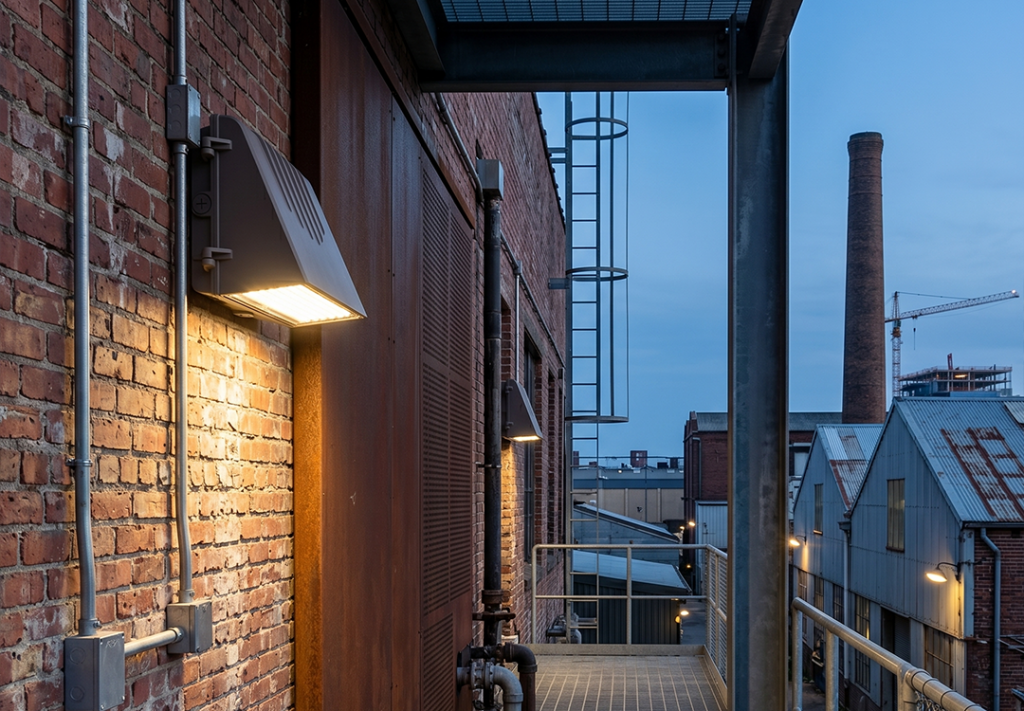

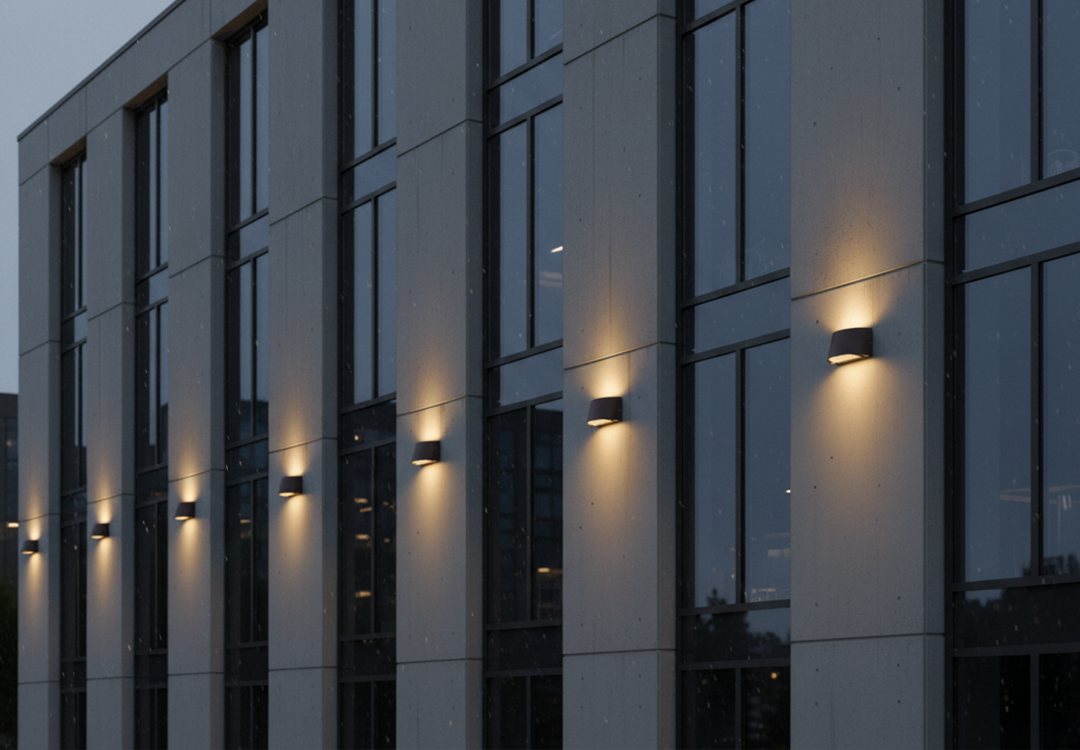

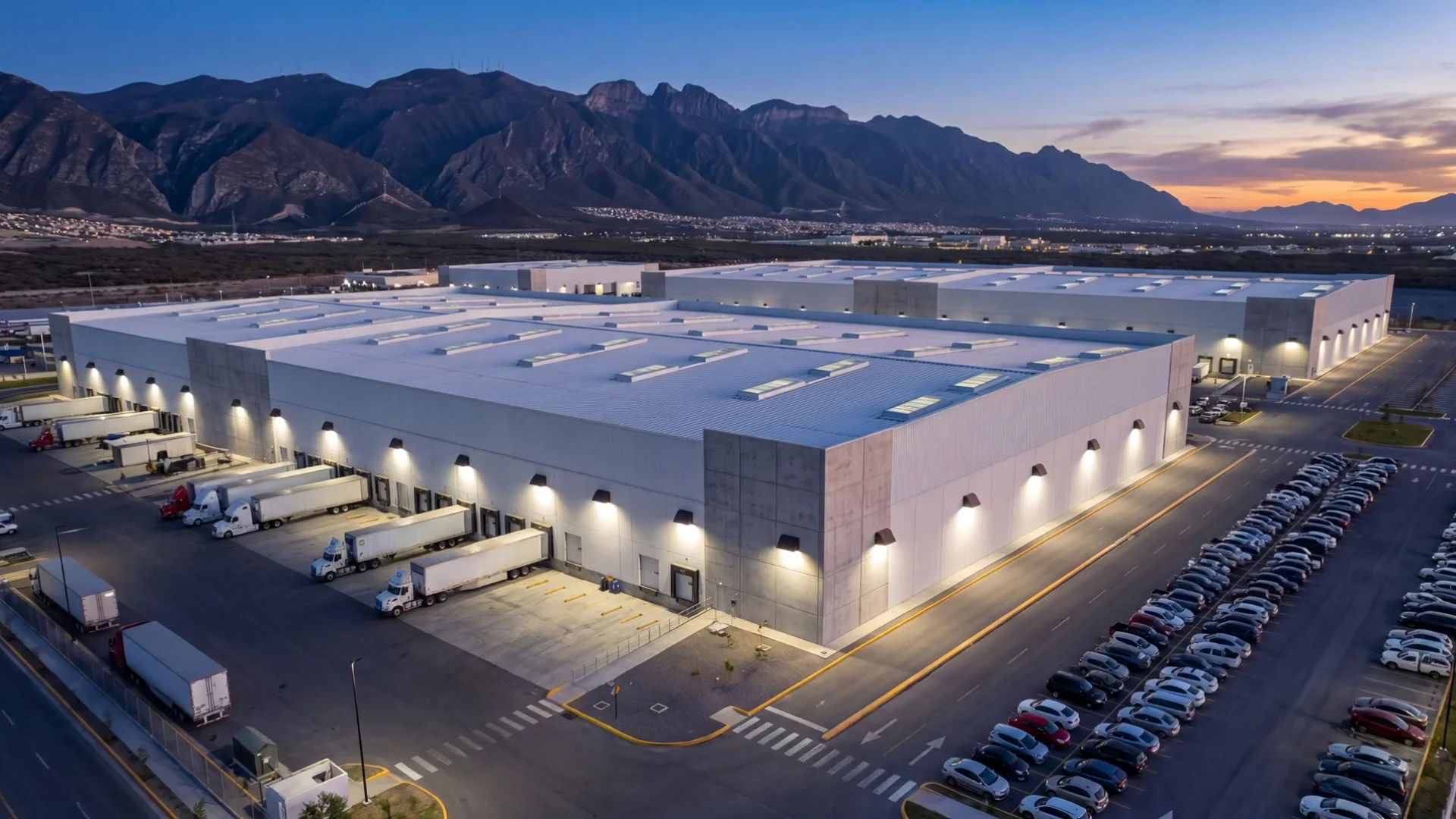

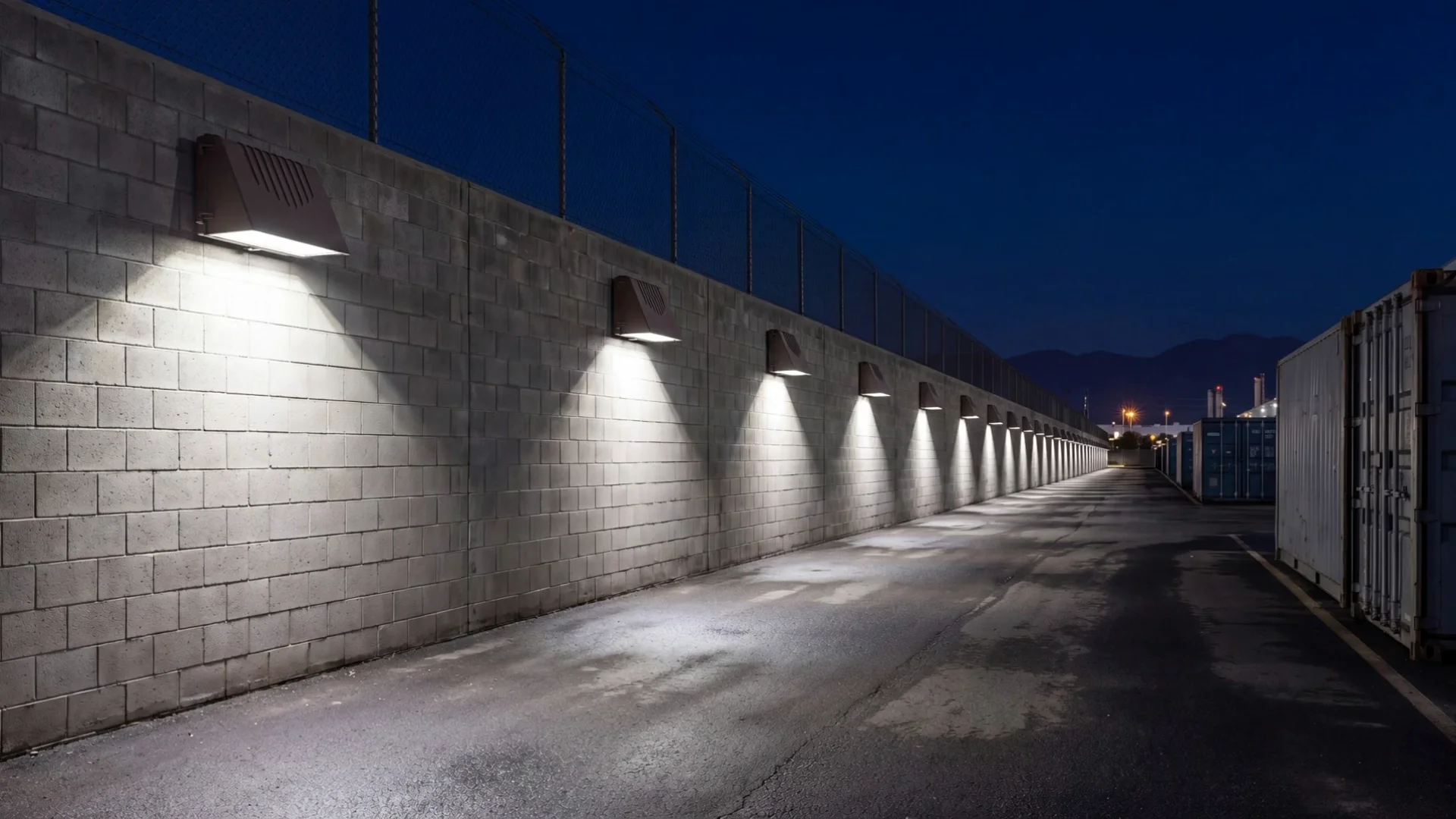

Two sizes, field-selectable 15–120 W.Full-cutoff wall pack for facades, entrances, walkways and perimeter walls at manufacturing plants. A 3-in-1 switch sets wattage, CCT and photocell in the field.
IN ONE SERIES
Set it on site.
Wattage, CCT and photocell at install.Two sizes and five packages cover 15 to 120 W. Size, package, battery and finish are chosen when ordering; in the field, the 3-in-1 switch sets wattage (four steps per package), color temperature and photocell. Factory setting: maximum package wattage, 5000 K and photocell on.
Flux and efficacy for each combination per the 60 LM-63 IES files (5 packages × 4 wattages × 3 CCTs, Type III optic); the photocell does not change the photometry. We run the photometric layout for your project at no cost.
Built for the outdoors,
compact and field-adjustable.Die-cast aluminum with cooling fins, a Type III full-cutoff optic and a 3-in-1 switch to set wattage, CCT and photocell in the field.
WALL PACK EDGE
FULL-CUTOFF LED WALL PACK · 10 IN AND 14 IN
Light only

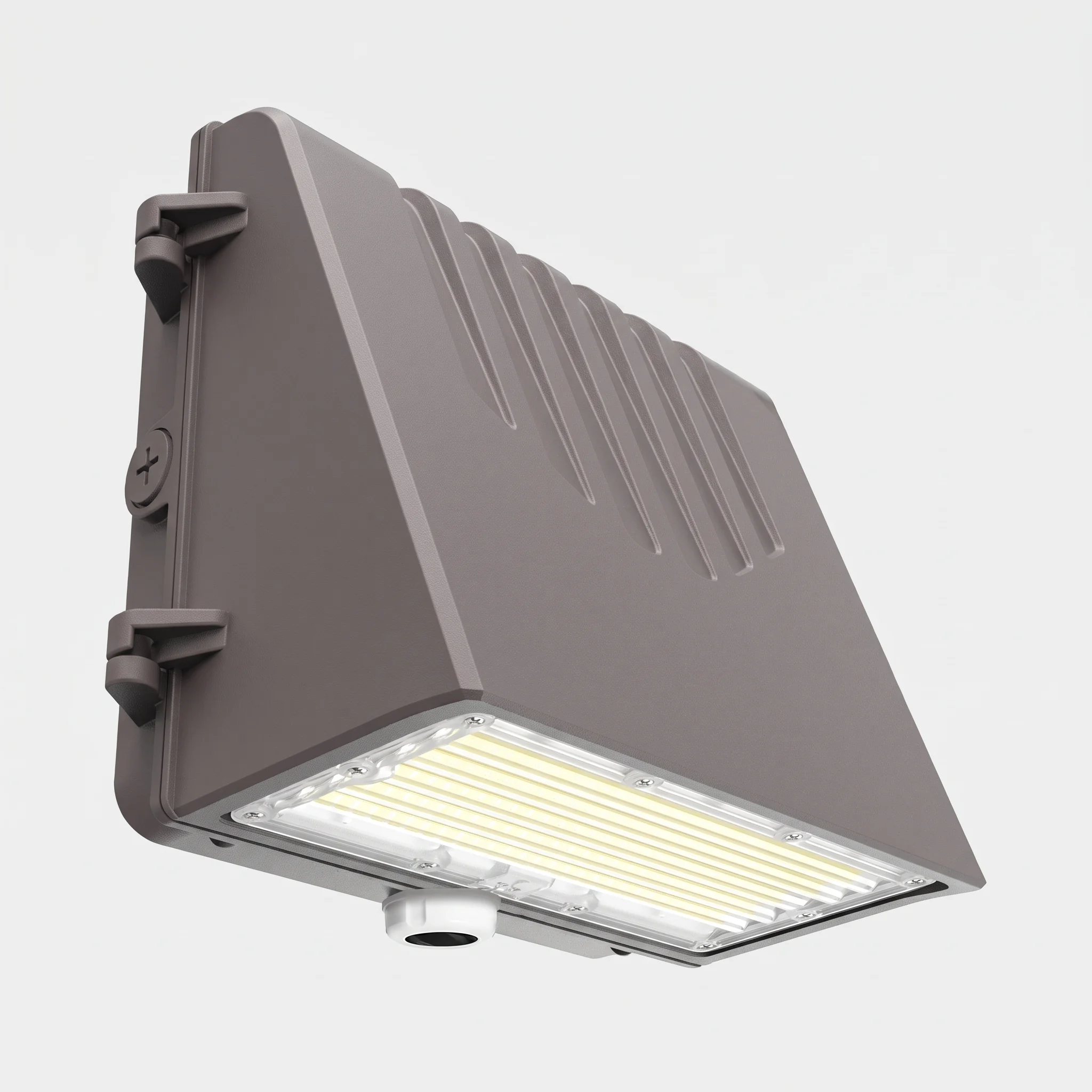

where it's needed.The Jungo Connect One controller installs on the luminaire as an accessory and combines Bluetooth Mesh® (SIG Mesh) connectivity with two sensors: microwave for occupancy and illuminance for daylight. No schedules to program: set the rule once and the system runs on its own, 24/7.
Two sizes. Five packages.

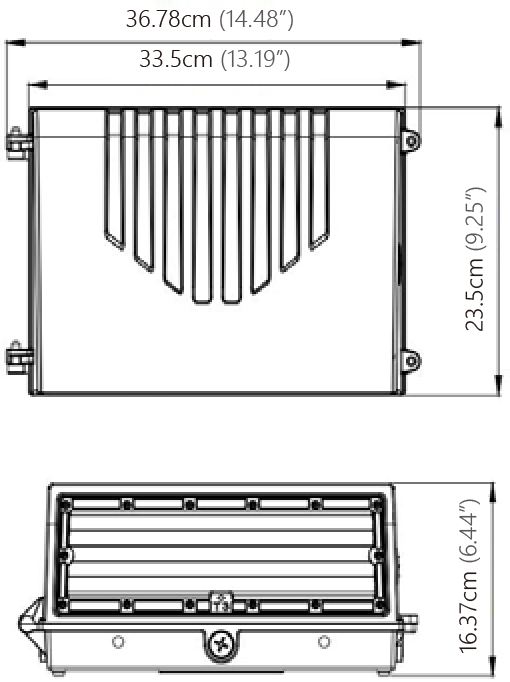

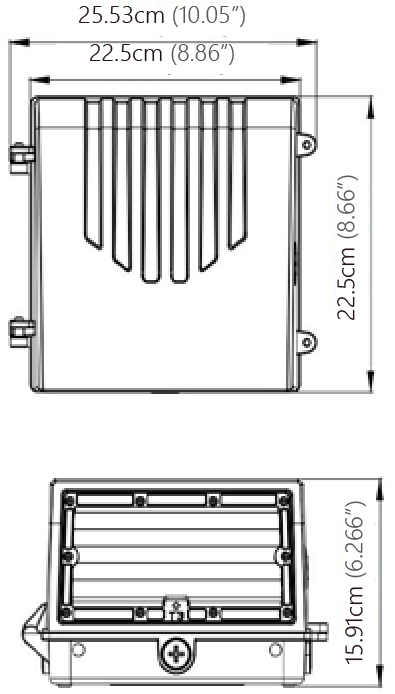

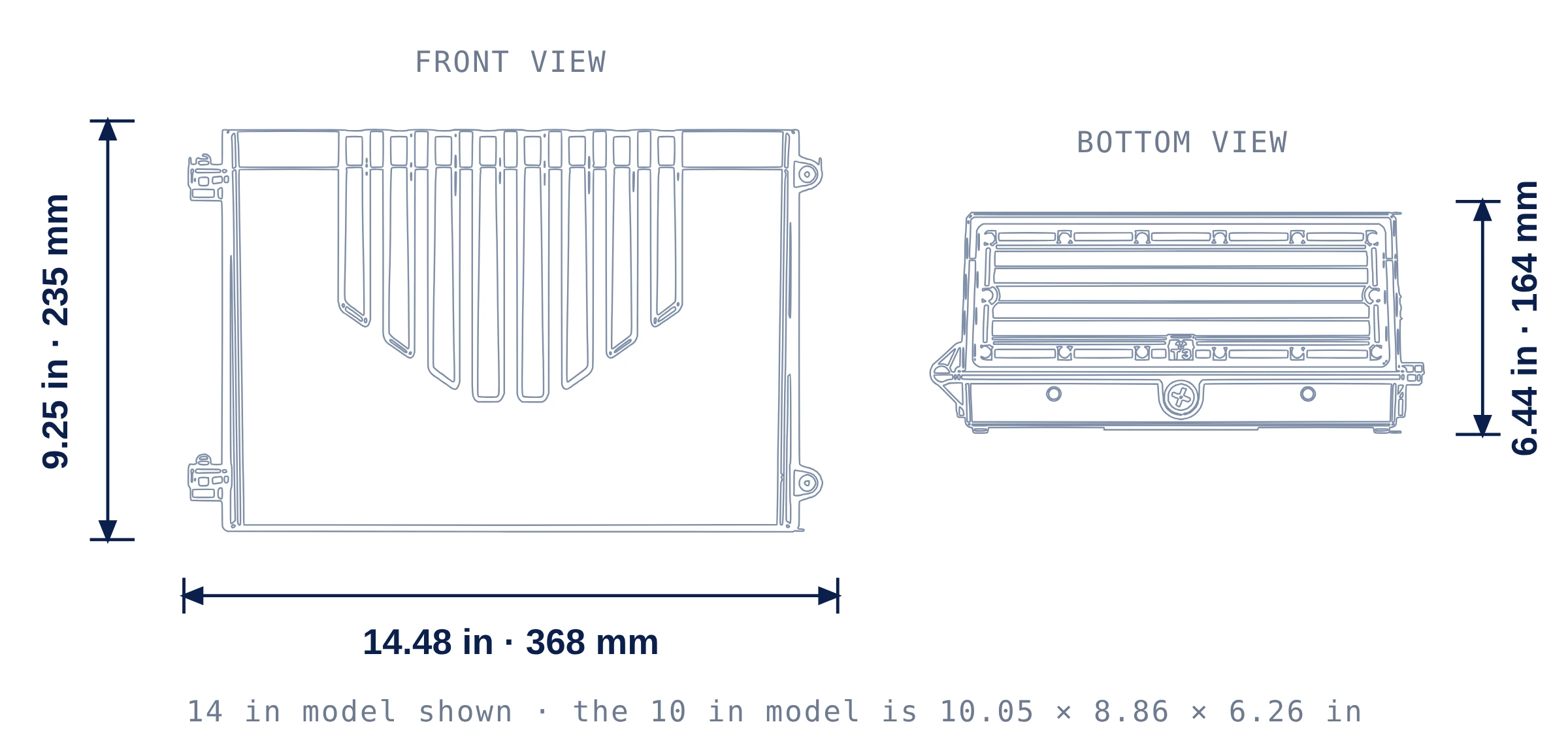

The 10 in model measures 10.05 × 8.86 × 6.26 in and weighs 3.7 lb; the 14 in model, 14.48 × 9.25 × 6.44 in and 6.0 lb. Wattage, CCT and photocell are set in the field with the 3-in-1 switch; the optic is Type III full cutoff.
14 in: 14.48 × 9.25 × 6.44 in · 6.0 lb
10 IN AND 14 IN · 15–120 W
14 in: 14.48 × 9.25 × 6.44 in · 6.0 lb

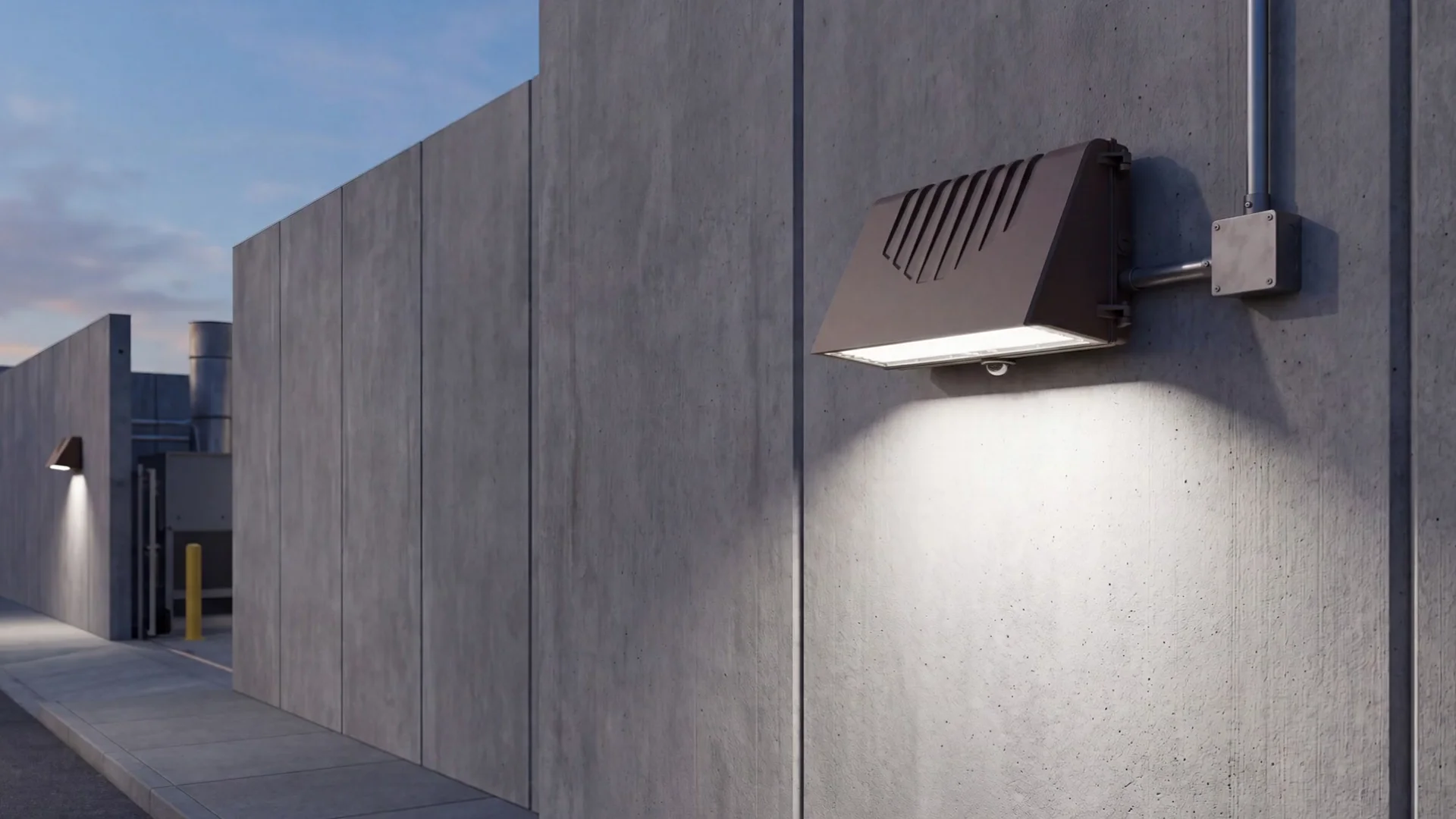

Ready for the wall.
Mounts to a junction box or directly to the wall, with five ½ in knockouts. The emergency battery is factory-installed and selected in the ordering code; the Jungo Connect One sensor is an optional accessory.
06 — FOR SPECIFIERS
Everything to specify it.
Certified and verifiable.
Download the spec sheet and the 60 IES files for your DIALux or AGi32 layout. UL listing can be verified in the public UL Product iQ directory.
Spec sheet
PDF · ENGLISH (US)
↓
IES
IES files
ZIP · 60 FILES · LM-63
↓
Installation guide
PDF · ENGLISH (US)
↓
DLX
Photometric layout
FREE · FOR YOUR PROJECT
→
UL 1598
UL SOLUTIONS · FILE E497790
UL listed luminaires for general use. Verifiable in the public UL Product iQ directory.
Verify on UL Product iQ →

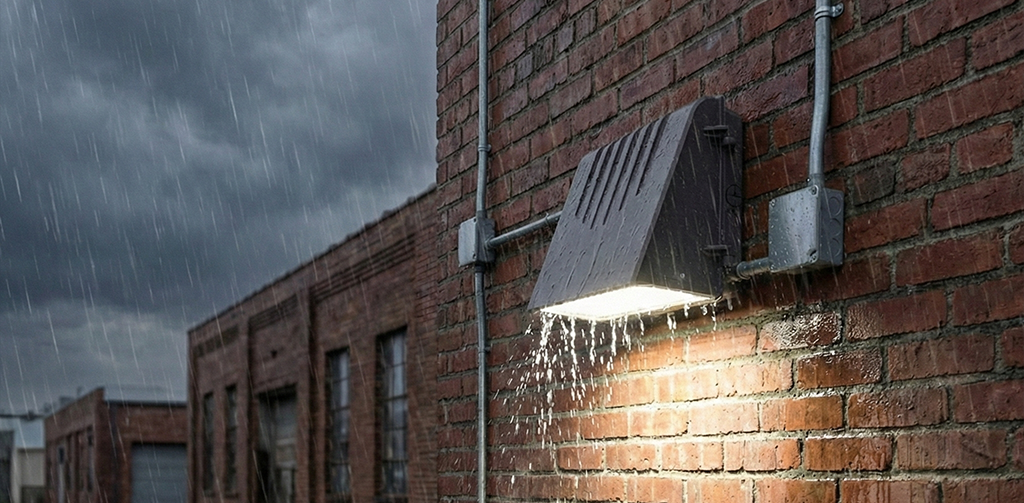

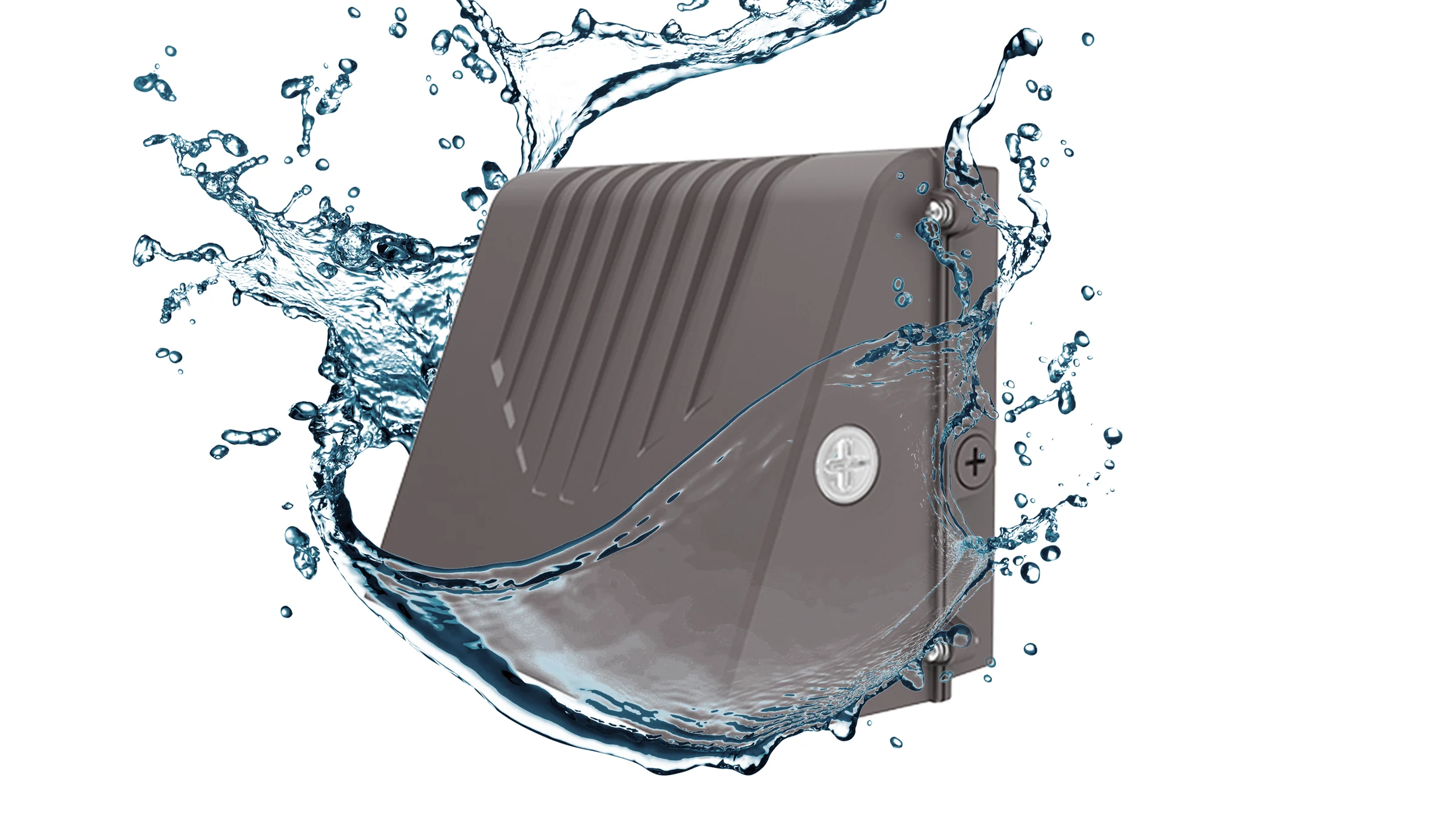

IP65
Ingress protection
IP RATING
Dust and rain on exterior walls, from −40 to 122 °F.
07 — FAQ
About the Wall Pack Edge
Have another question? An advisor will answer you on WhatsApp.

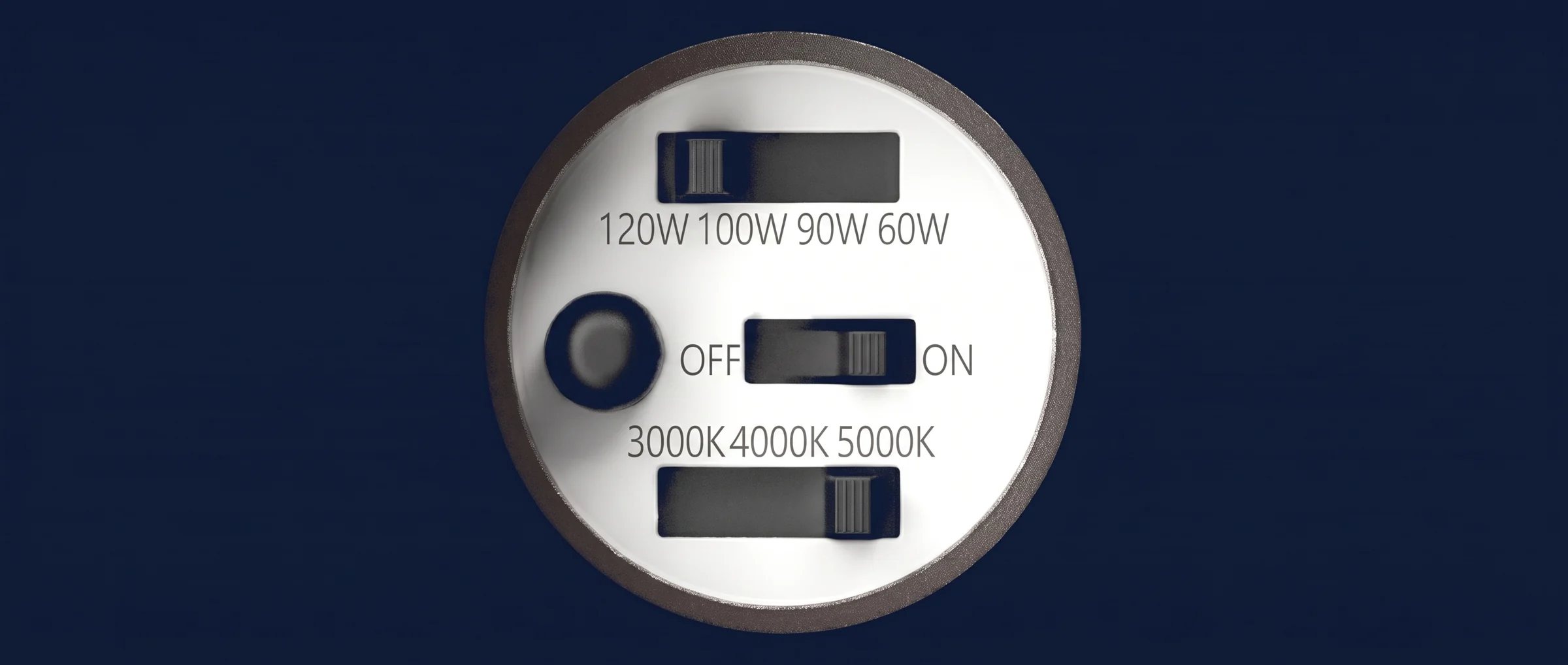

What does the 3-in-1 switch set?
What does the 3-in-1 switch set?
Wattage (four steps per package, from 15 to 120 W), color temperature (3000, 4000 or 5000 K) and photocell (on or off). Factory setting: maximum package wattage, 5000 K and photocell on.

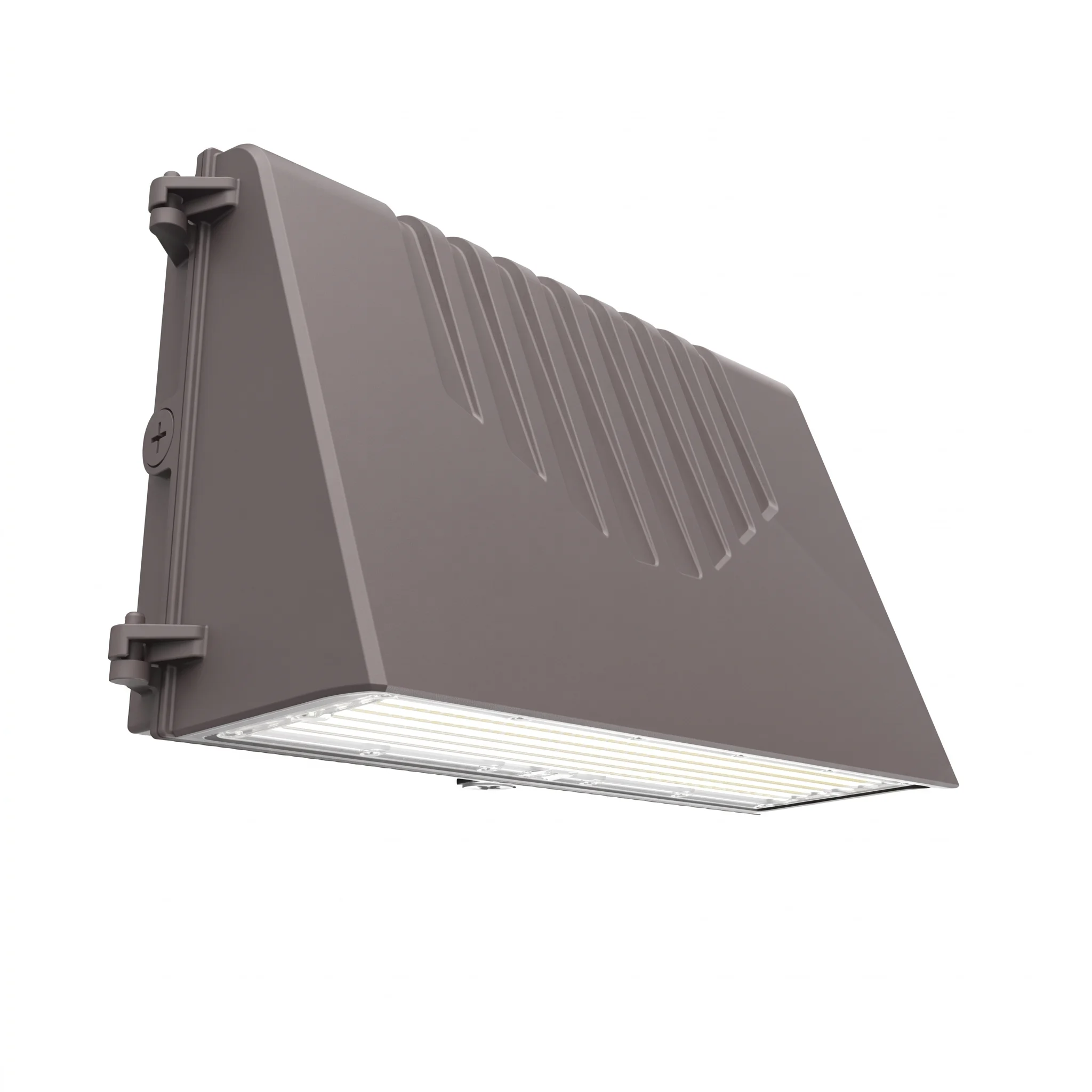

How does the photocell work?
How does the photocell work?

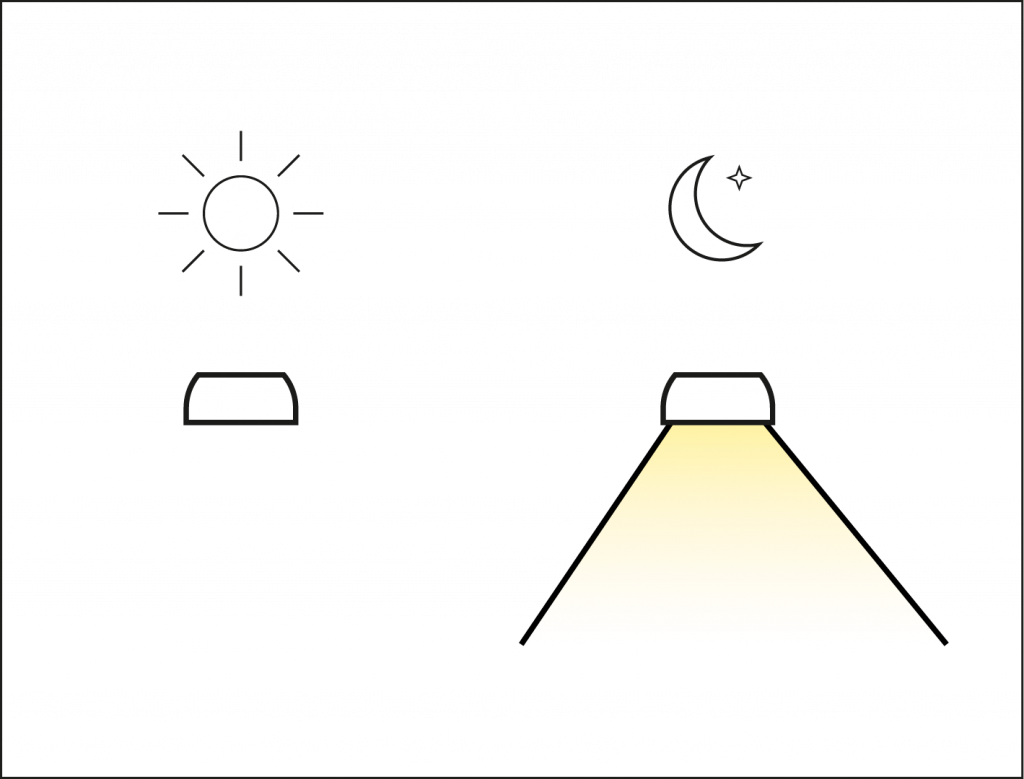

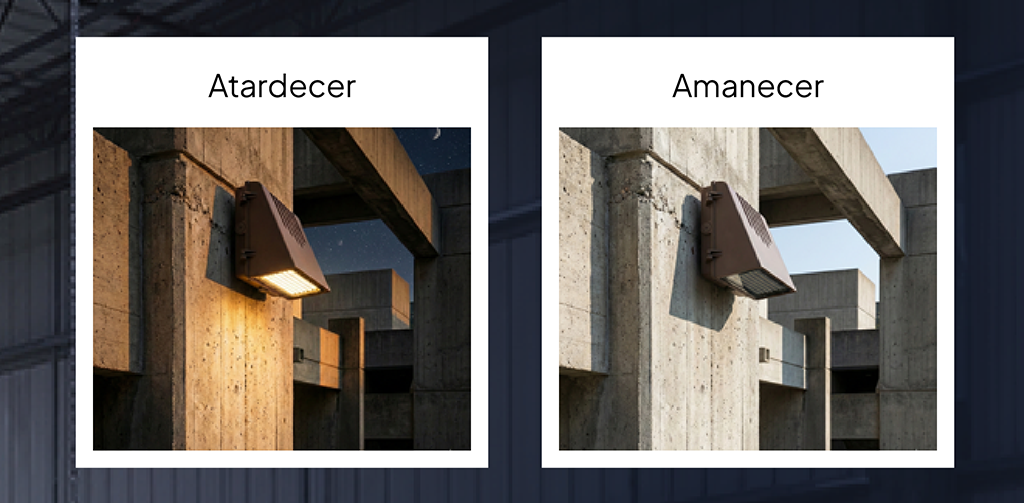

It is a built-in mini photocell: it turns the fixture on at dusk and off at dawn. Enable or disable it with the same 3-in-1 switch.
Can the Wall Pack Edge be controlled with Jungo Connect®?
Can the Wall Pack Edge be controlled with Jungo Connect®?
Yes. It works with the optional Jungo Connect One accessory (JCO-BTS) for occupancy and daylight sensing, managed from the app or the web platform.
Is it certified?
Is it certified?
Yes. It is UL listed to UL 1598 (UL Solutions, File E497790), verifiable in the public UL Product iQ directory, and TAA compliant.

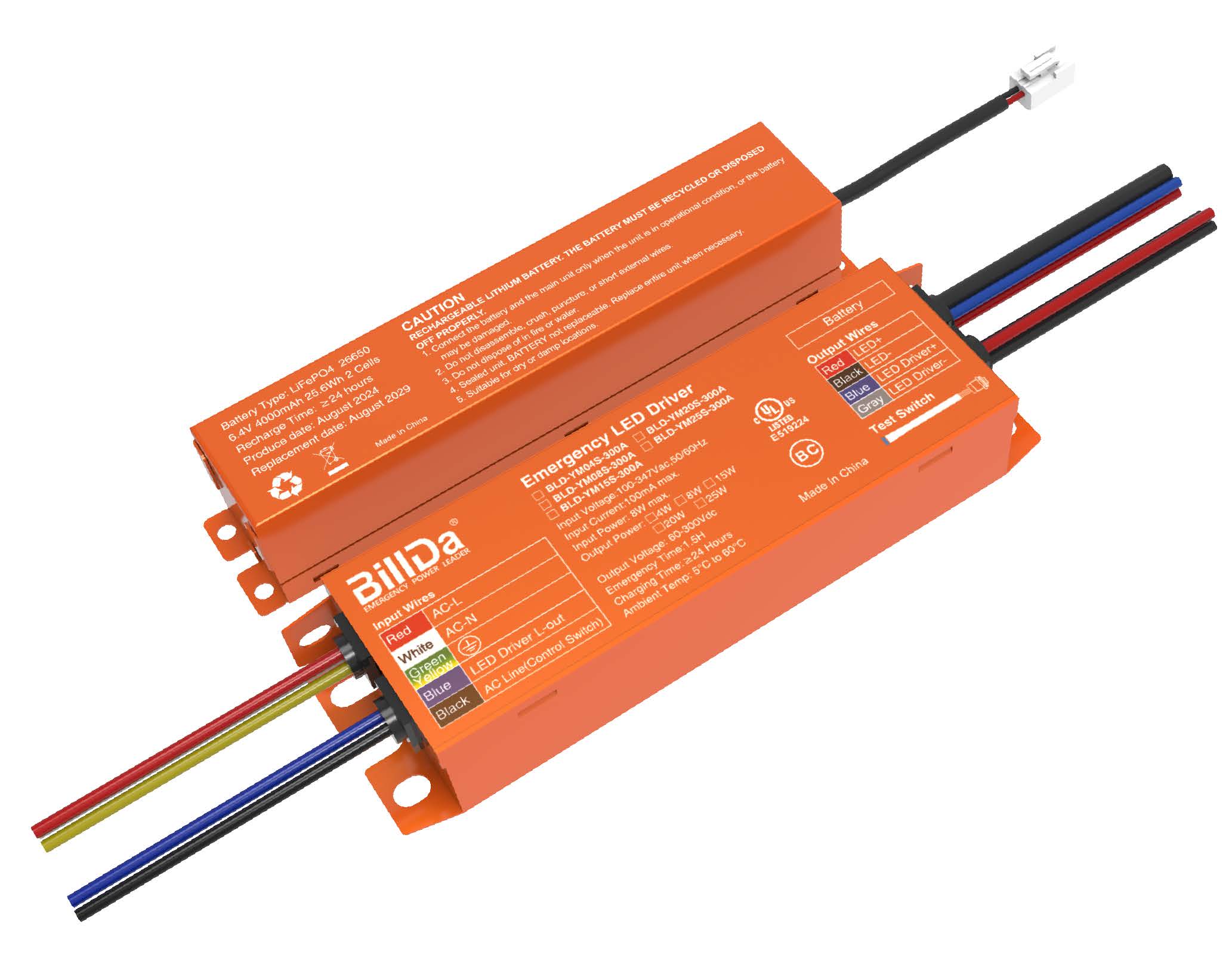

Is emergency backup available?
Is emergency backup available?
Yes, as a factory-installed option: a 4 W battery (YM04S, 10 in · 40 W), 8 W (YM08S, 10 in · 80 W and 14 in) or 15 W (YM15S, 14 in). It is selected in the ordering code and keeps entrances and egress paths lit during a power outage.
