Linear.
Pendant linear, up and down light. 36 W.Aluminum linear luminaire for offices, meeting rooms, lobbies and retail. Three field switches set the CCT of the uplight, the CCT of the downlight and how the light is split between them. It joins seamlessly in runs of up to 20 fixtures and mounts pendant, on the ceiling or on the wall.
3 up CCTs · 3 down CCTs
Configure your Linear.
One model. Three field switches.The Linear is a single 4FT, 36 W model. Switch A sets the CCT of the uplight, switch B the CCT of the downlight, and switch C how the light is split: from all up to all down in five positions. Everything is set on the fixture, without changing products.
Lumen output for each configuration per the laboratory IES files (IES LM-79) at 36 W: up to 4,352 lm and 119 lm/W. The image shows the real split of light between ceiling and desks; actual levels depend on mounting height and spacing.
Continuous, seamless
and field adjustable.Aluminum profile with a polycarbonate diffuser, a deep low-glare reflector and joint-free coupling. Switches A, B and C sit on the end cap and are set before mounting.
LINEAR
LED LINEAR · 4FT · 36 W
Light on the desk and the ceiling,
in the proportion you choose.The Linear lights only downward, only upward or split between both: 0/100, 30/70, 50/50, 70/30 or 100/0. Uplight bounces off the ceiling and fills the space without glare; downlight sets the level on the work plane. Each side has its own CCT.
One model. Two finishes.

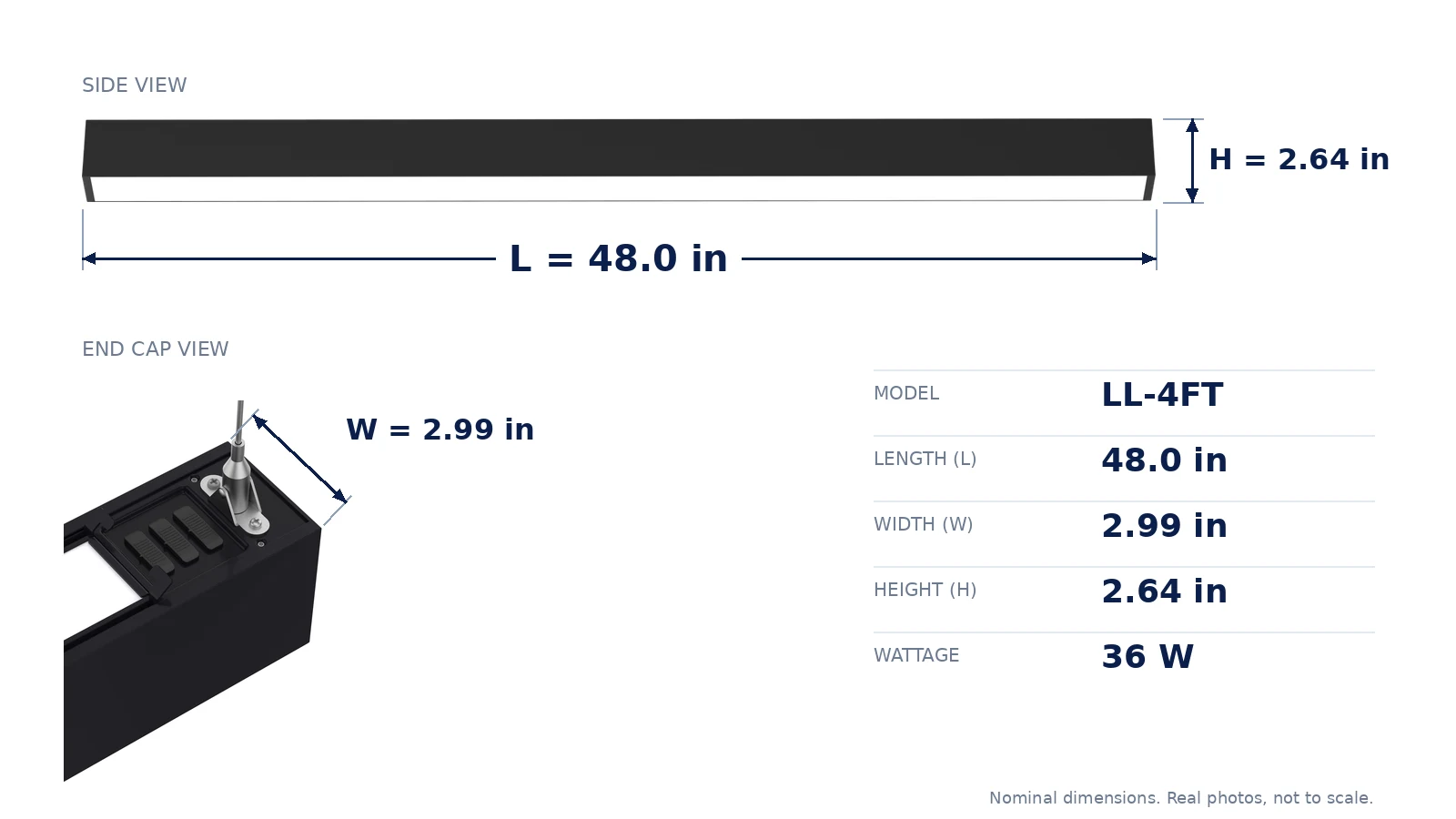

The Linear is 48.03 in long, 2.99 in wide and 2.64 in tall, in black or white. CCT and distribution are set with switches A, B and C.
4FT · 36 W
48.03 × 2.99 × 2.64 in
Pendant, in runs or on the wall.
It ships with steel aircraft cables for pendant mounting. It joins in runs of up to 20 fixtures with straight, L, T and X connectors, and mounts on the wall, on the ceiling or recessed with its kits. All accessories are ordered separately.
06 — SPECIFIERS
Everything to specify it.
Listed and verifiable.
Download the spec sheet, the installation guide and the 33 IES files (every distribution with every up and down CCT) for your DIALux or AGi32 layout.
Spec sheet
PDF · ENGLISH (US)
↓
IES
IES files
ZIP · 33 FILES · LM-63
↓
Installation guide
PDF · ENGLISH (US)
↓
DLX
Photometric study
FREE · FOR YOUR PROJECT
→
UL 1598
UL · LISTED · E497790
LED luminaire listed by UL to the UL 1598 standard.
Verify on UL Product iQ →
5 + 10
YEARS OF WARRANTY
STANDARD + EXTENDED
5-year standard warranty and 10-year extended warranty.
07 — FAQ
About the Linear
Have another question? An advisor will answer you on WhatsApp.
What do switches A, B and C do?
What do switches A, B and C do?
A sets the CCT of the uplight and B the CCT of the downlight (3500, 4000 or 5000 K each). C splits the light between up and down in five positions: 100/0, 70/30, 50/50, 30/70 and 0/100. Set them with the power off, before mounting.
How many can I join in one run?
How many can I join in one run?
Up to 20 4FT fixtures in one seamless run, with straight connectors or L, T and X corners. Power feeds at a single point and the connectors carry it along the run.
Which distribution suits an office?
Which distribution suits an office?
For open offices and meeting rooms, 30/70 or 50/50: uplight reduces contrast and screen glare, and downlight sets the level on the desk. 0/100 delivers the most output to the work plane.
Is it certified?
Is it certified?
Yes. It is UL listed to UL 1598 (file E497790), TAA compliant and USMCA compliant.
Does it offer emergency backup?
Does it offer emergency backup?
Yes, with the optional LL08 emergency battery, which keeps the fixture on during a power outage. It is ordered as an accessory.
08 — COMPLETE YOUR PROJECT
Related products
LINEAR
How many Linear fixtures does your office need?
We run a free photometric layout for your offices, meeting rooms, lobbies and retail spaces and help you choose the distribution, the CCTs and the layout of the runs.
