Hazardous Locations
A SERIES

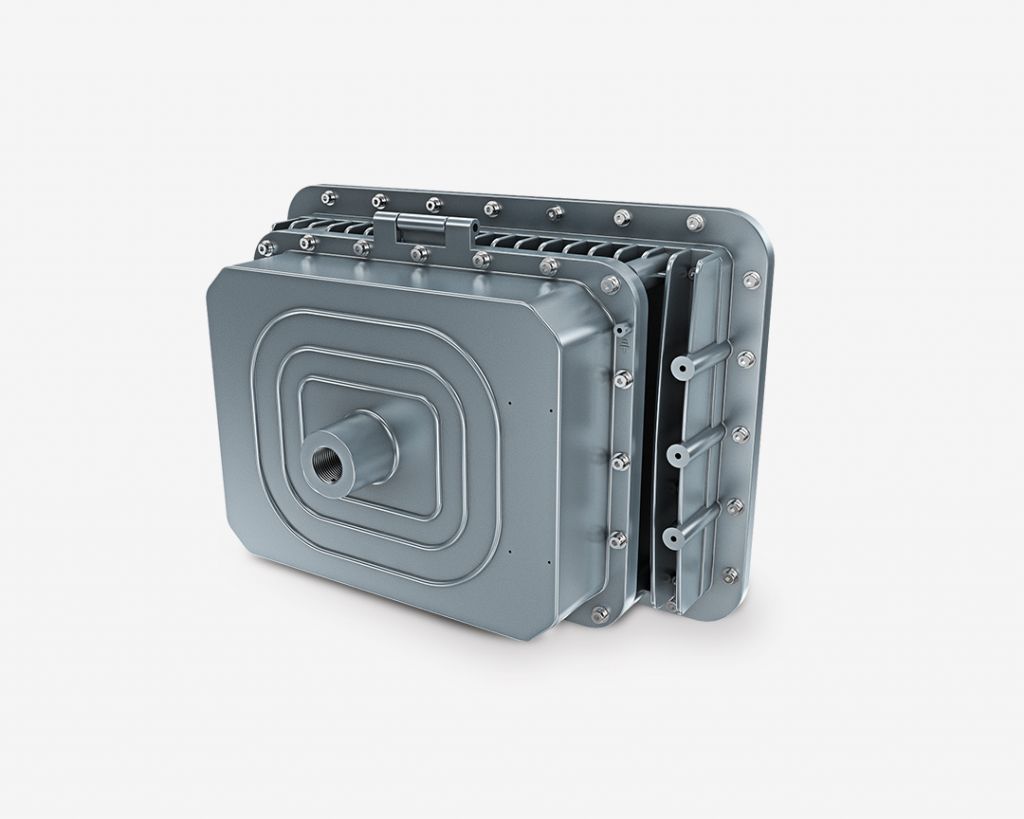

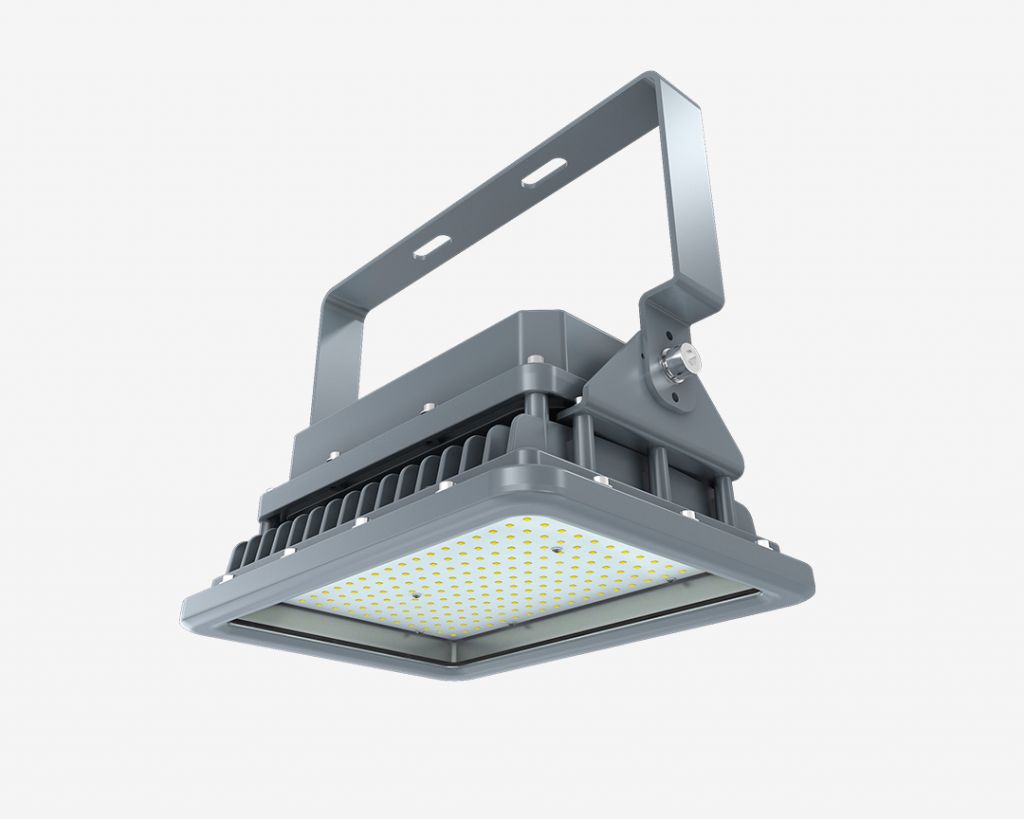

A SERIES It is a luminaire designed for hazardous applications, its innovative vertical flow cooling design allows it to operate in harsh environments of extreme heat with temperatures up to 50°C such as metal smelting facilities, iron forges, steel mills, power generation, factories and chemical plants.
To Series
key features
1. Protection
Hermetic body with IP66 protection
2. Operating Temperature
Wide operating temperature: -40° to 50°C
3. Mounting
Rotatable bracket available
4. Optics
120° opening angle
5. Protection
10kV surge protection
6. Maintenance
100,000 hour light maintenance
SPECS
ten models
20W
20W
2,800lm
40W
40W
5,600lm
60W
60W
8,400lm
80W
80W
11,200lm
100W
100W
14,000lm
150W
150W
21,000lm
200W
200W
28,000lm
250W
250W
35,000lm
300W
300W
42,000lm
400W
400W
56,000lm
Luminous Efficacy
140lm/W
Input voltage
100 – 277 V~ / 200 – 480 V~
dimmable
0 – 10V (optional)
Color Temperature
4000K or 5000K
irc
>70
Optics
Borosilicate
Opening angle
120°
Operating Temperature
-40 to 50°C
Mounting
Wall/Ceiling/Pole Hanging
CUSTOMIZE YOUR LUMINAIRE
guide to order
1
Series
EXA –A-Series
2
Model
20W – 2,800lm
40W – 5,600lm
60W – 8,400lm
80W – 11,200lm
100W – 14,000lm
150W – 21,000lm
200W – 28,000lm
250W – 35,000lm
300W – 42,000lm
400W – 56,000lm
3
Power supply
S – Not Dimmable
D. – Dimmable 0-10V
4
Color Temperature
40 – 4000K
50 – 5000K
5
Voltage *
S – 100 – 277 V~
h – 200 – 480 V~
*High voltage not compatible with 20 W and 40 W
Example: EXA-150W-S-50-S (A Series, 150W, 21000 lm, Non-Dimmable, 5000K, 100 – 277 V~)
Example: EXA-20W-D-40-H (A Series, 20W, 2800 lm, Dimmable, 4000K, 200 – 480 V~)
Dimensions per model
EXA-20W
20W / 2,800lm
EXA-40W
40W / 5,600lm
EXA-60W
40W / 5,600lm
4.15kg
EXA-80W
80W / 11,200lm
EXA-100W
100W / 14,000lm
6.95kg
EXA-150W
150W / 21,000lm
EXA-200W
200W / 28,000lm
8.3kg
EXA-250W
250W / 35,000lm
EXA-300W
300W / 42,000lm
EXA-400W
400W / 56,000lm
8.3kg
Certifications & Guarantees
ATEX - European Union
II 3 G Ex ec IIC T3 Gc
Il 2 D Ex tb IIIC T103°C Db
II 2 G Ex mb eb IIC T3 Gb
Il 2 D Ex tb IIC T125°C Db
