Hazardous Locations
I SERIES

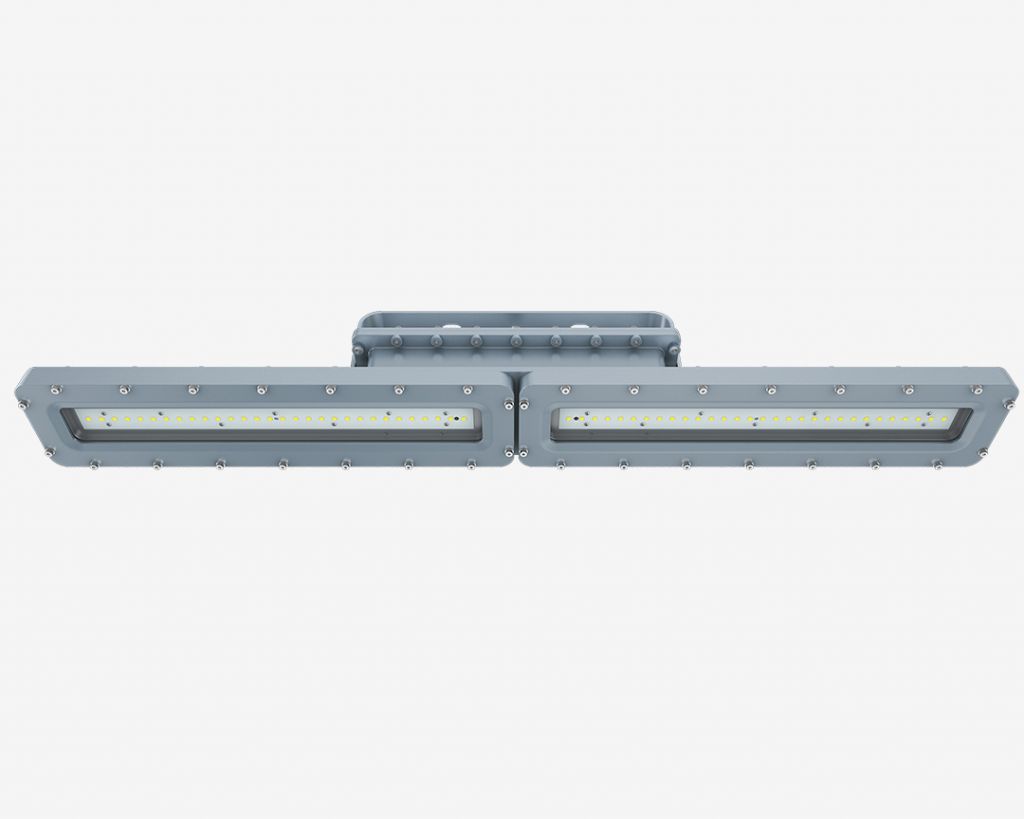

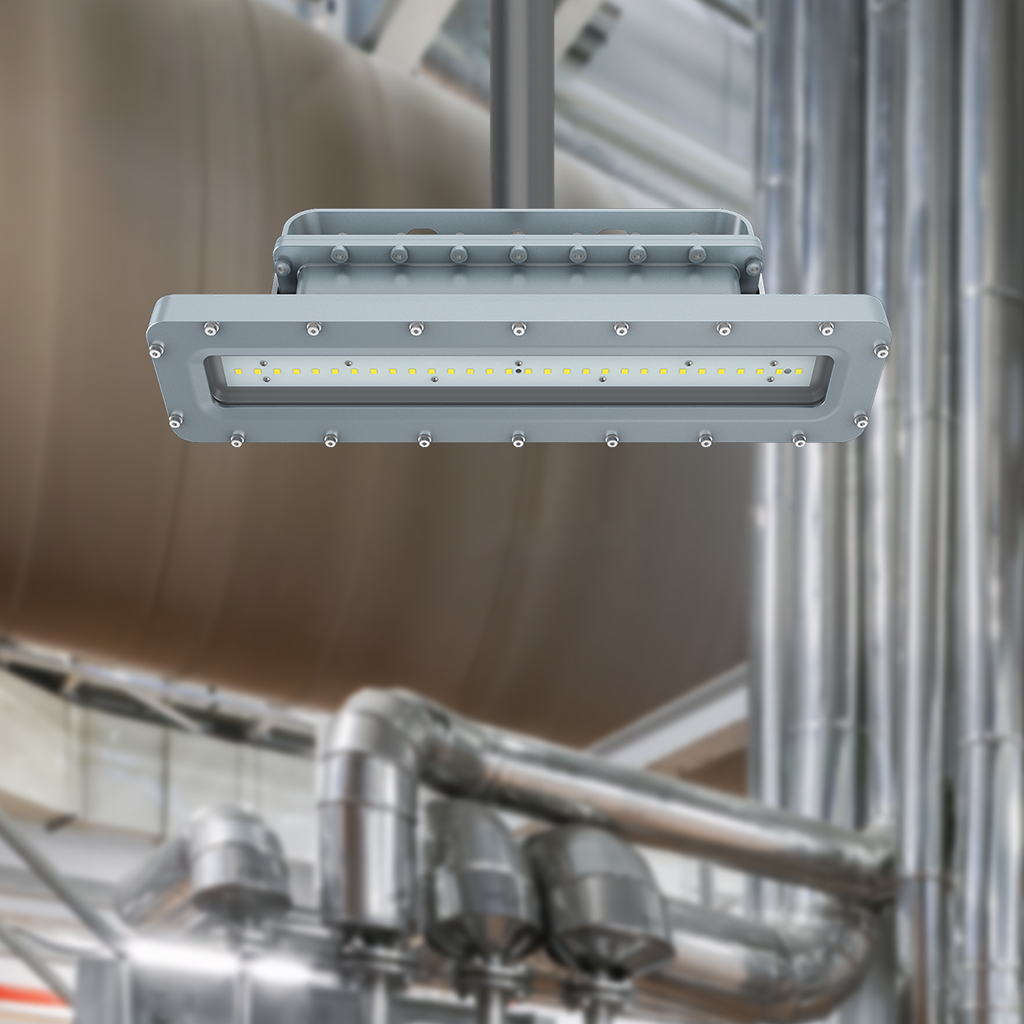

I SERIES It is a luminaire designed for hazardous applications, its innovative vertical flow cooling design allows it to operate in harsh environments of extreme heat with temperatures up to 60°C such as metal smelting facilities, iron forges, steel mills, power generation, factories and chemical plants.
I-Series
key features
1. Protection
Hermetic body with IP66 protection
2. Optics
120° opening angle

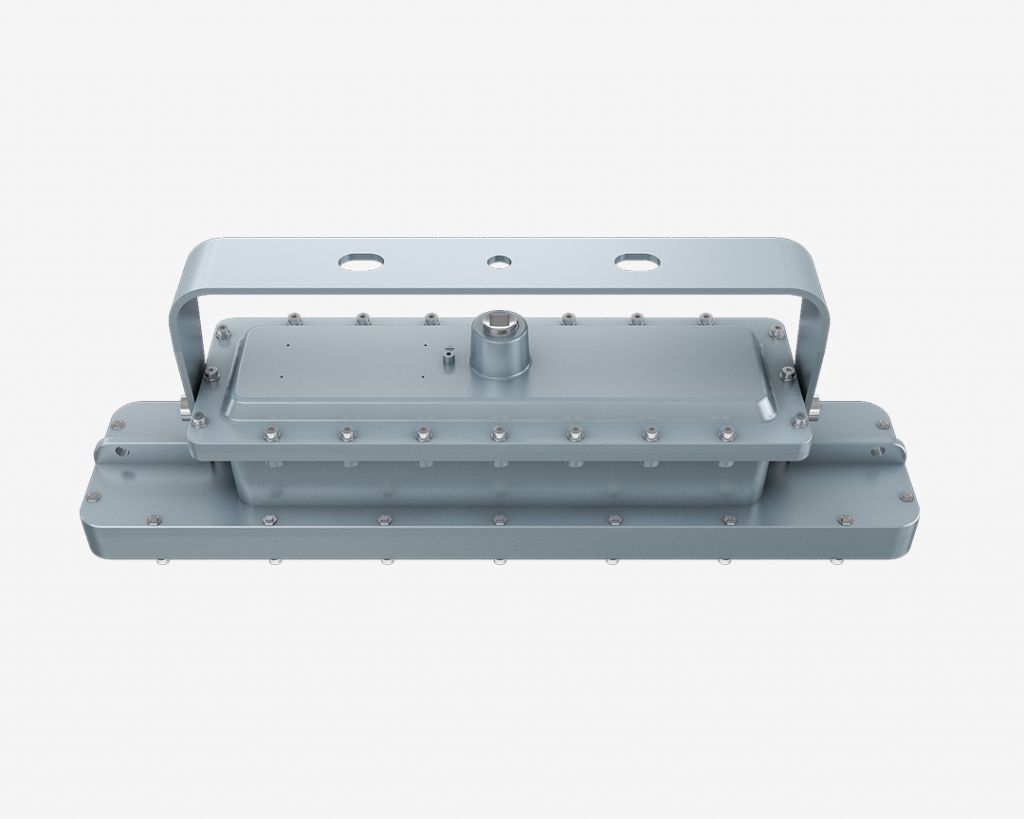

3. Mounting
Rotatable bracket available
4. Operating Temperature
Wide operating temperature: -40° to 50°C
5. Protection
10kV surge protection
6. Maintenance
100,000 hour light maintenance
SPECS
six models
20W
20W
2,800lm
40W
40W
5,600lm
60W
60W
8,400lm
80W
80W
11,200lm
100W
100W
14,000lm
120W
120W
16,800lm
Luminous Efficacy
140lm/W
Input voltage
100 – 277V~
dimmable
0 – 10V (optional)
Color Temperature
4000K or 5000K
irc
>70
Optics
Borosilicate
Opening angle
120°
Operating Temperature
-40 to 60°C
Mounting
U Type Mountable Backet
CUSTOMIZE YOUR LUMINAIRE
guide to order
1
Series
EXA –A-Series
2
Model
20W – 2,800lm
40W – 5,600lm
60W – 8,400lm
80W – 11,200lm
100W – 14,000lm
120W – 16,800lm
3
Emergency battery
No. –None
AND – Emergency battery
4
Color Temperature
40 – 4000K
50 – 5000K
Example: EXI-100W-N-50 (I Series, 100W, 14000 lm, Without Backup Battery, 5000K)
Example: EXI-20W-E-40 (I Series, 40W, 56000 lm, Battery Backup, 4000K)
Dimensions per model
EXI-20W
20W / 2,800lm
EXI-40W
40W / 5,600lm
EXI-60W
40W / 5,600lm
EXI-80W
80W / 11,200lm
EXI-100W
100W / 14,000lm
EXI-120W
120W / 16,800lm
Certifications & Guarantees
ATEX - European Union
Il2 G Ex db IIB T4 Gb
Il2 D Ex tb IIIC T63.5°C Db IP66
IECEx - International
Ex db IIB T4 Gb
Ex tb IIIC T63.5°C Db
Intertek - North America
UL 844
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A,B,C,D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
class III
