Wall Pack Industrial.

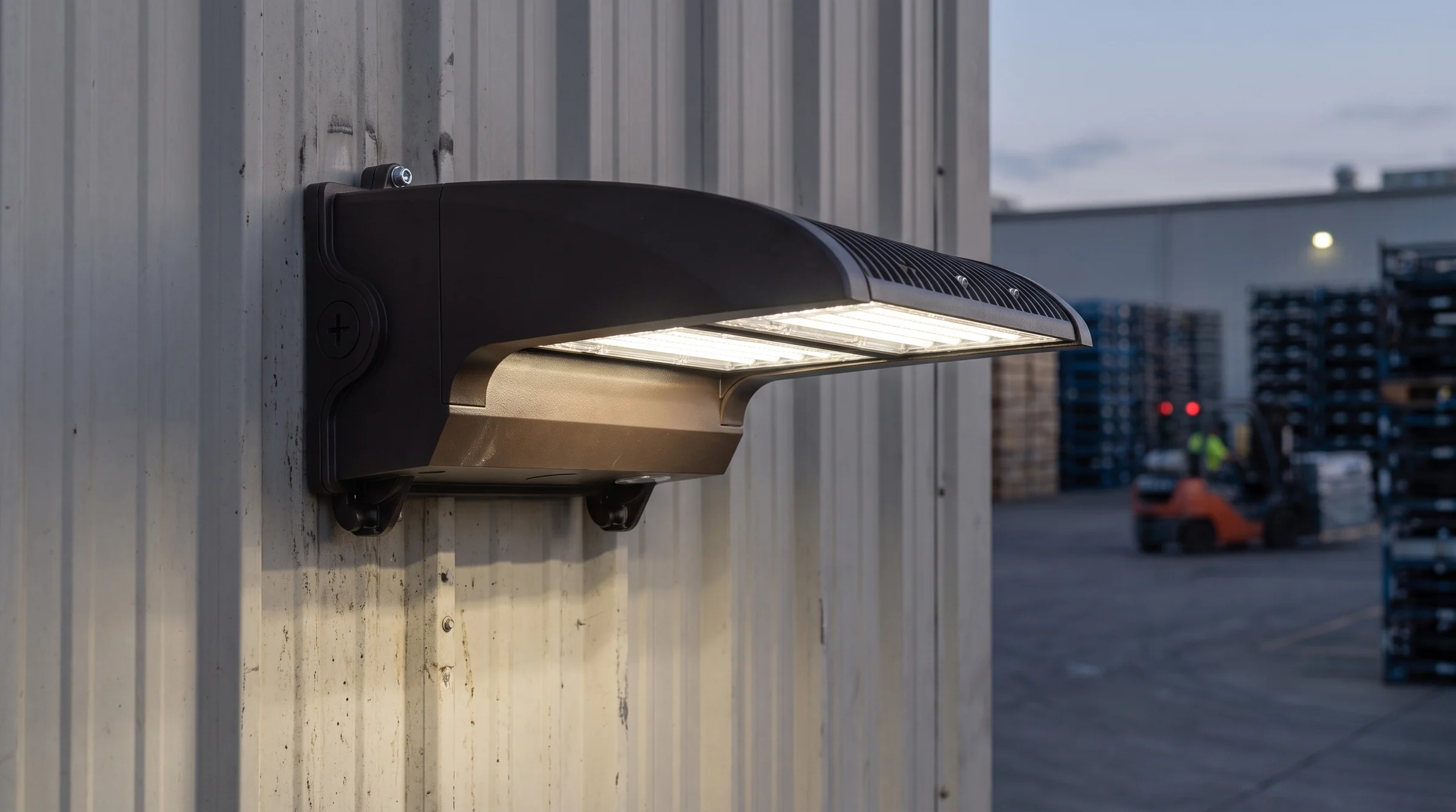

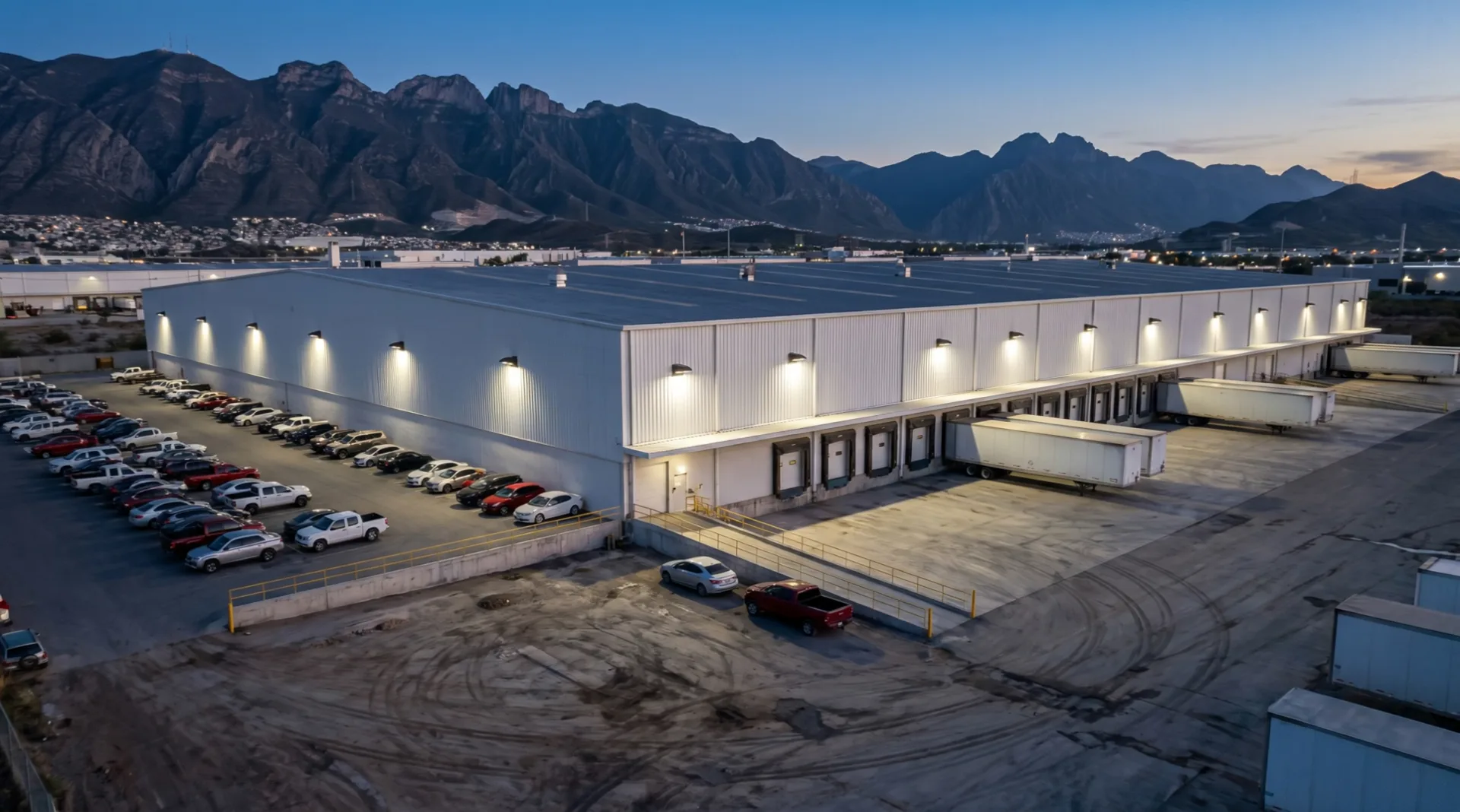

Field-selectable 60–120 W.Built for facades, entrances, loading docks and plant perimeters. A 3-in-1 switch sets wattage, CCT and photocell in the field; the head rotates −15° to 210°, tool-free.
IN ONE MODEL
Set it on site.
Wattage, CCT and photocell at install.One model covers 60 to 120 W. In the field, the 3-in-1 switch sets wattage, color temperature and photocell; the optic is Type III. Factory setting: 120 W, 5000 K and photocell off.
Flux and efficacy for each combination per the 12 LM-63 IES files (4 wattages × 3 CCTs, Type III optic); the photocell does not change the photometry. We run the photometric layout for your project at no cost.
Built for the outdoors,

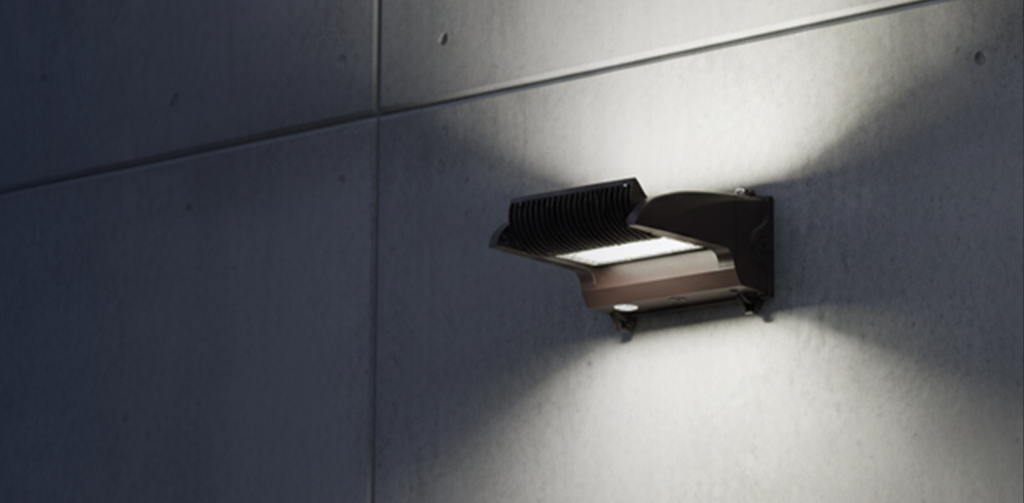

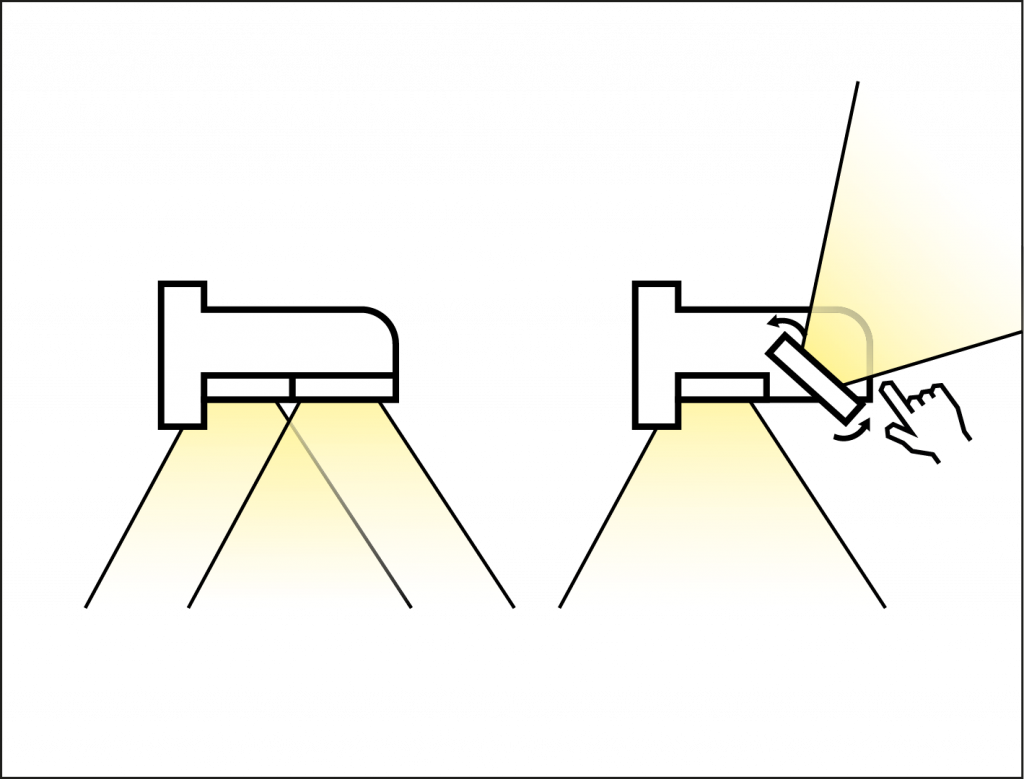

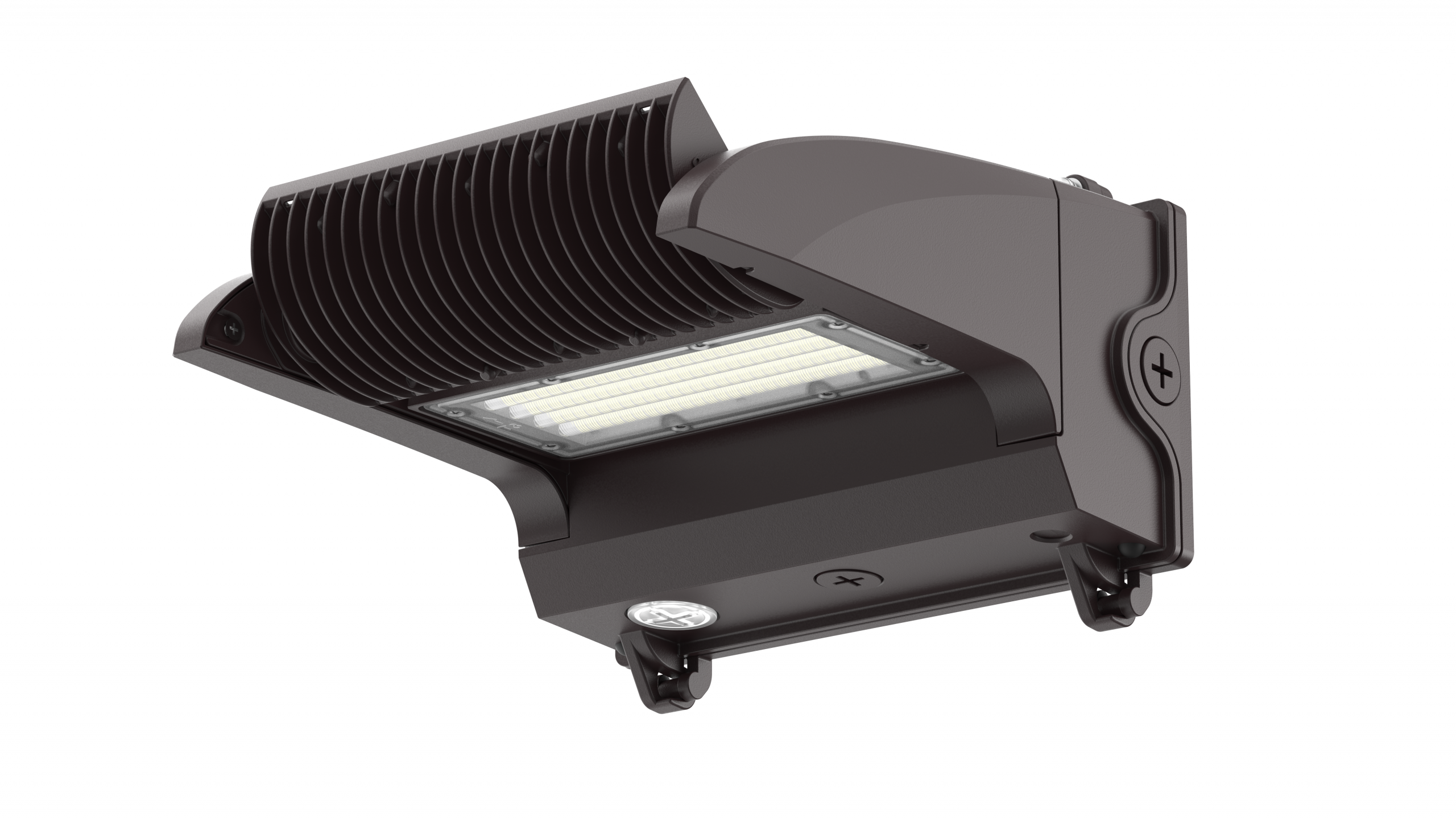

rotating and field-adjustable.Die-cast aluminum body with a finned heat sink, a head that rotates −15° to 210° tool-free, and a 3-in-1 switch to set wattage, CCT and photocell in the field.
WALL PACK INDUSTRIAL
LED WALL PACK · 4.85 LB · HEAD ROTATES −15° TO 210°
Light only

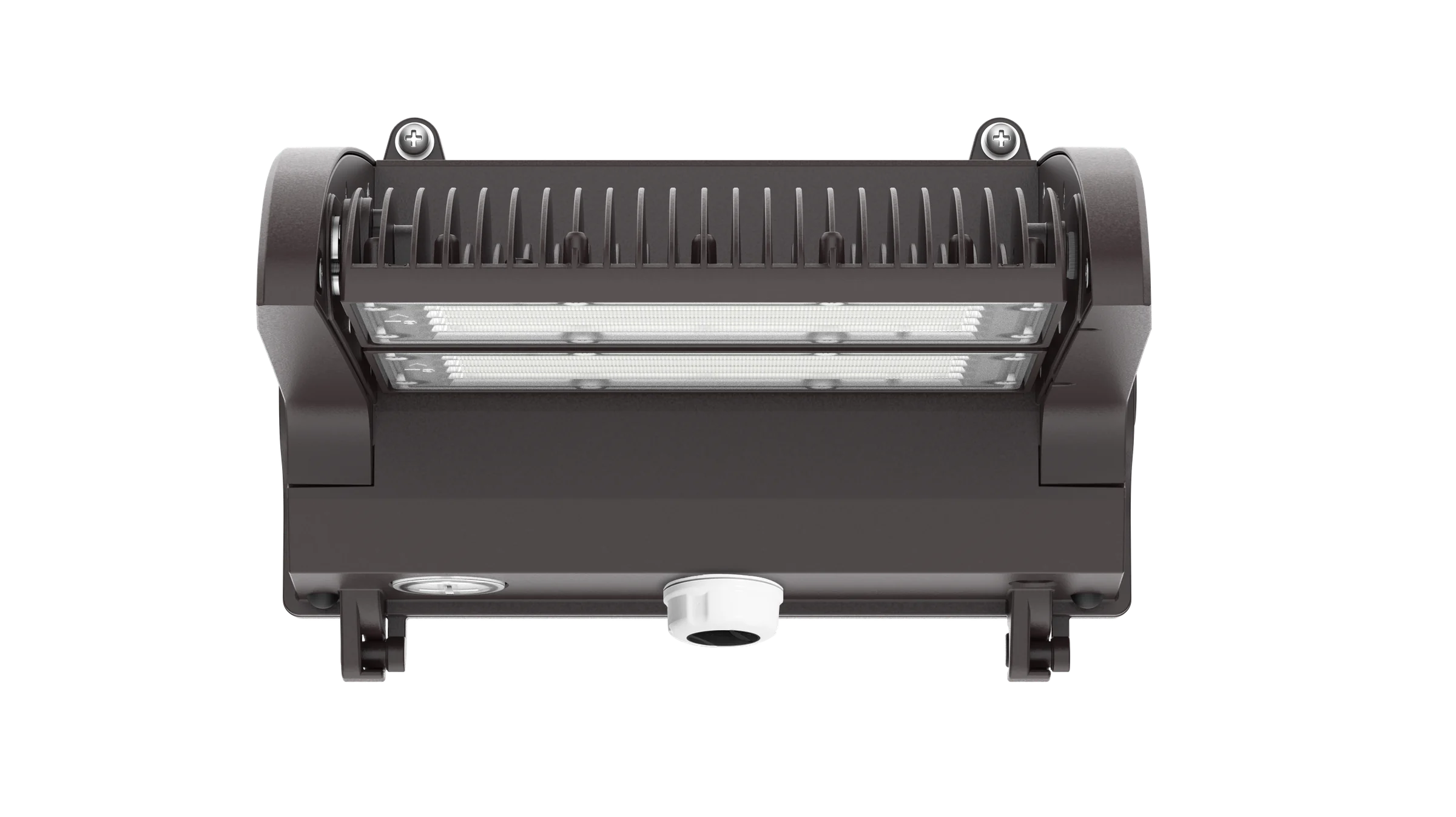

where it's needed.The Jungo Connect One controller is built into the luminaire and combines Bluetooth Mesh® (SIG Mesh) connectivity with two sensors: microwave for occupancy and illuminance for daylight. No schedules to program: set the rule once and the system runs on its own, 24/7.
One model. Four wattages.
The SO model measures 10.1 × 9.4 × 6.3 in and weighs 4.85 lb. Wattage, CCT and photocell are set in the field with the 3-in-1 switch; the optic is Type III.

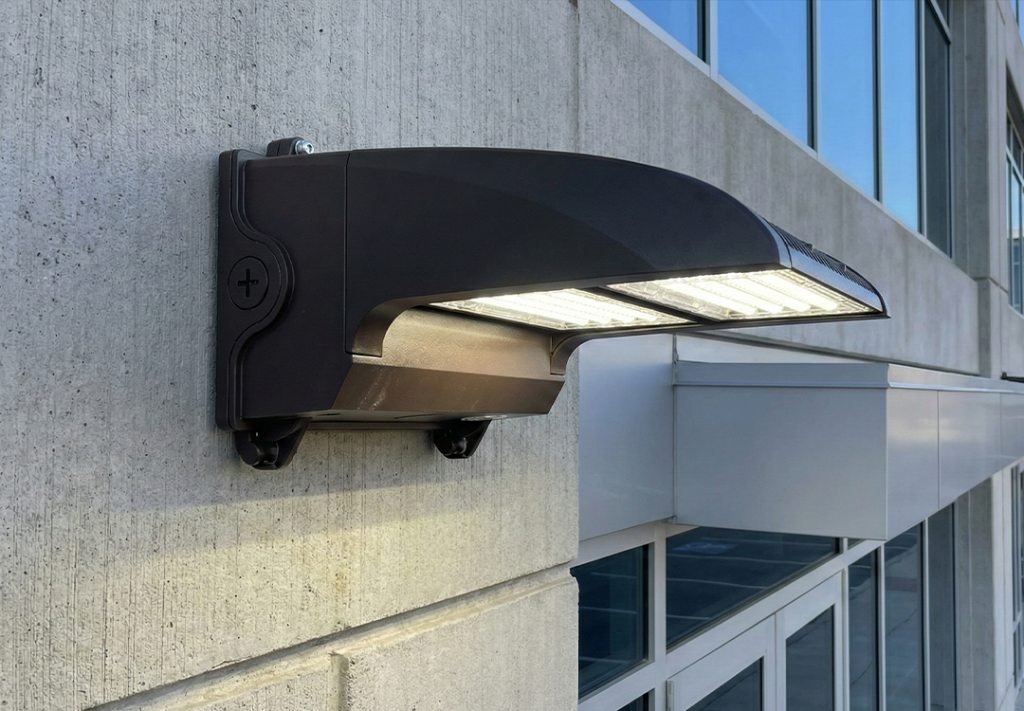

Ready for the wall.
Ships with a wall-mount box with five ½ in knockouts. The 8 W emergency battery and the Jungo Connect One sensor are factory-installed and selected in the ordering code.
06 — FOR SPECIFIERS
Everything to specify it.
Certified and verifiable.
Download the spec sheet and the 12 IES files for your DIALux or AGi32 layout. UL listing can be verified in the public UL Product iQ directory.
Spec sheet
PDF · ENGLISH (US)
↓
Installation guide
PDF · ENGLISH (US)
↓
IES
IES files
ZIP · 12 FILES · LM-63
↓
DLX
Photometric layout
FREE · FOR YOUR PROJECT
→
UL 1598
UL SOLUTIONS · FILE E497790
UL listed luminaires for general use. Verifiable in the public UL Product iQ directory.
Verify on UL Product iQ →

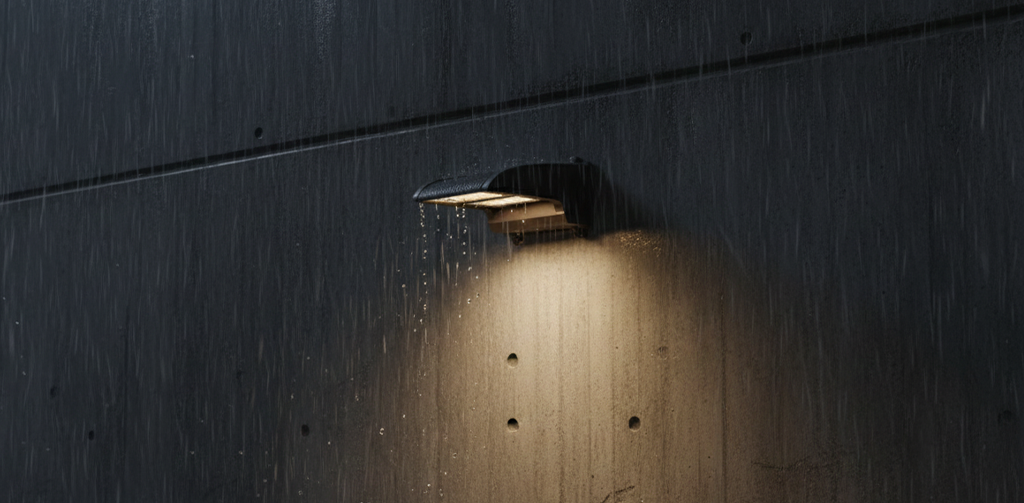

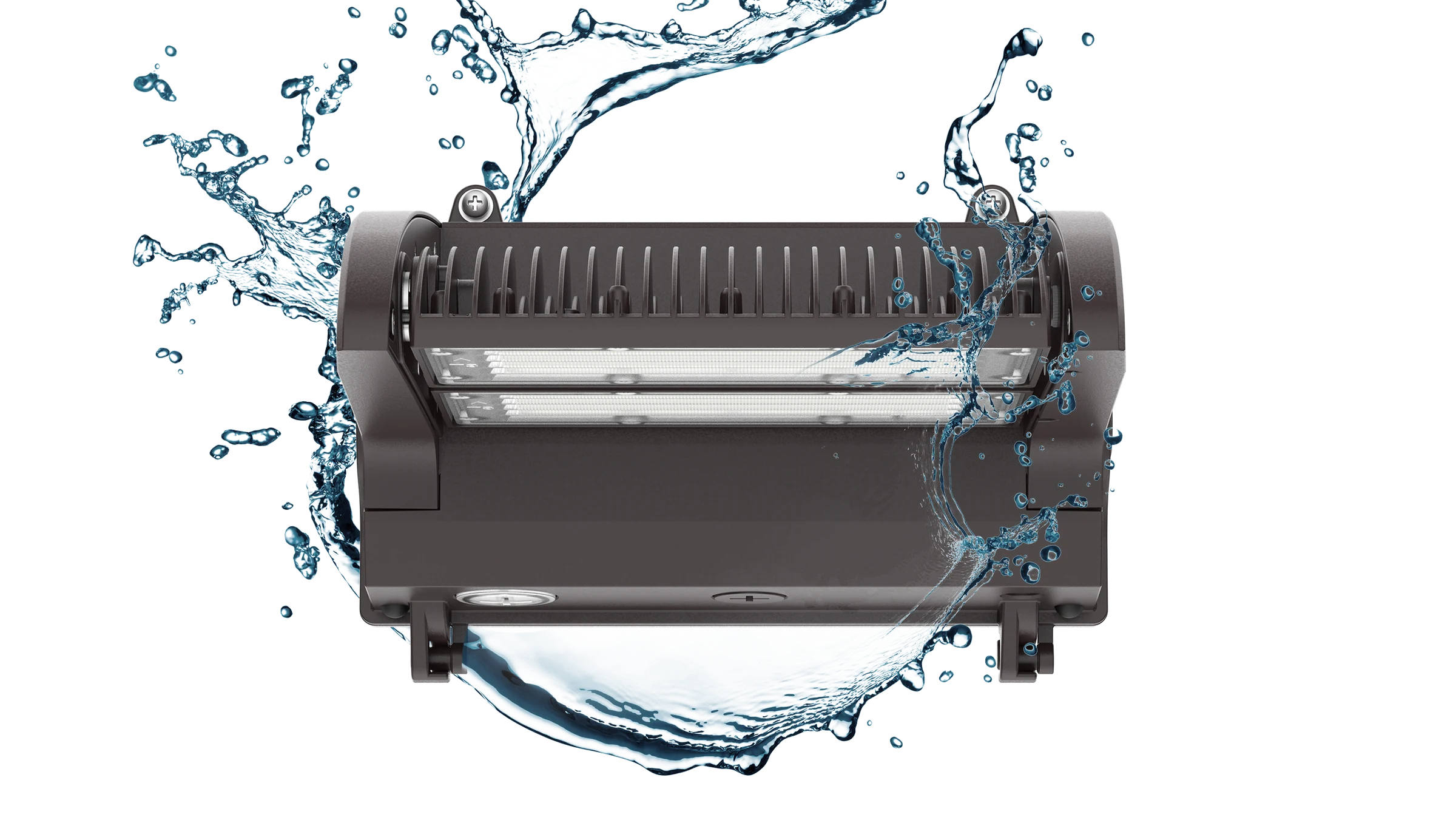

IP65
Ingress protection
IP RATING
Dust and rain on exterior walls, from −40 to 113 °F.
07 — FAQ
About the Wall Pack Industrial
Have another question? An advisor will answer you on WhatsApp.

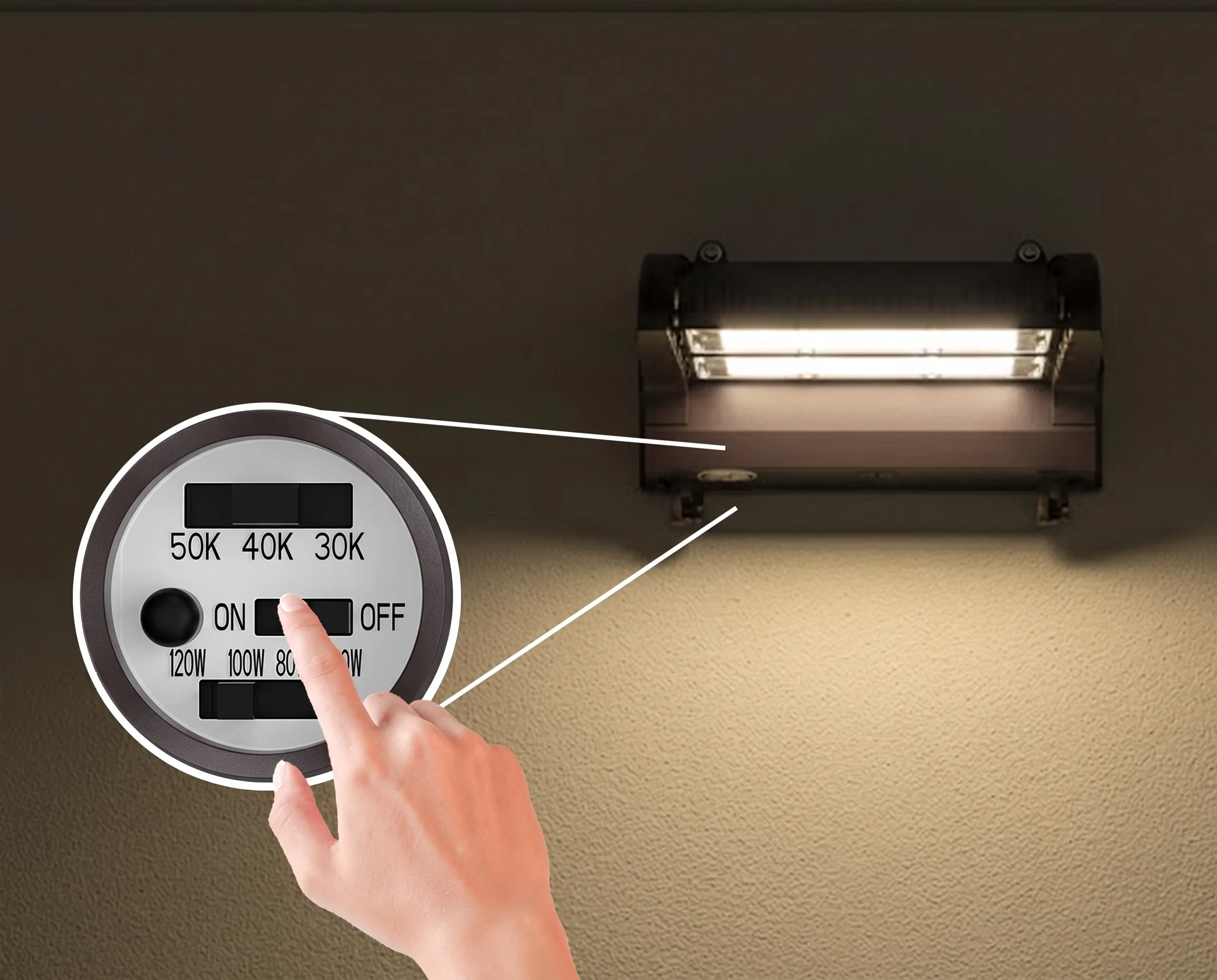

What does the 3-in-1 switch set?
What does the 3-in-1 switch set?
Wattage (60, 80, 100 or 120 W), color temperature (3000, 4000 or 5000 K) and photocell (on or off). Factory setting: 120 W, 5000 K and photocell off.

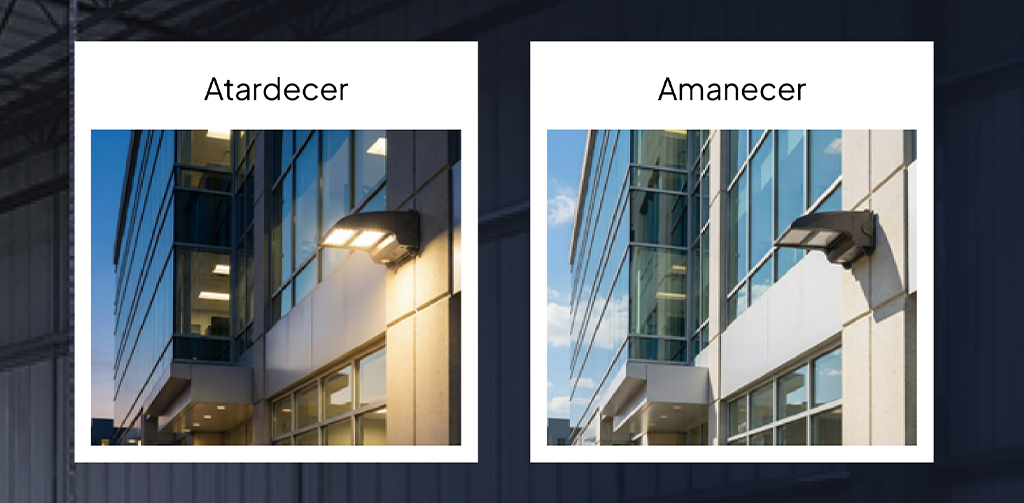

How does the photocell work?
How does the photocell work?
It is a built-in mini photocell: it turns the fixture on at dusk and off at dawn. Enable or disable it with the same 3-in-1 switch.
Can the Wall Pack Industrial be controlled with Jungo Connect®?
Can the Wall Pack Industrial be controlled with Jungo Connect®?
Yes. It is Jungo Connect Ready: the smart version (code I) integrates the Jungo Connect One sensor for occupancy and daylight, managed from the app or the web platform.
Is it certified?
Is it certified?
Yes. It is UL listed to UL 1598 (UL Solutions, File E497790), verifiable in the public UL Product iQ directory, and TAA compliant.
Is emergency backup available?
Is emergency backup available?
Yes, as a factory-installed option: an 8 W battery (code 3 in the ordering guide). It keeps entrances and egress paths lit during a power outage.
