HOME / INDOOR / LOW BAY / TRI-PROOF V2

LOW BAY · INDOOR · WET LOCATIONS

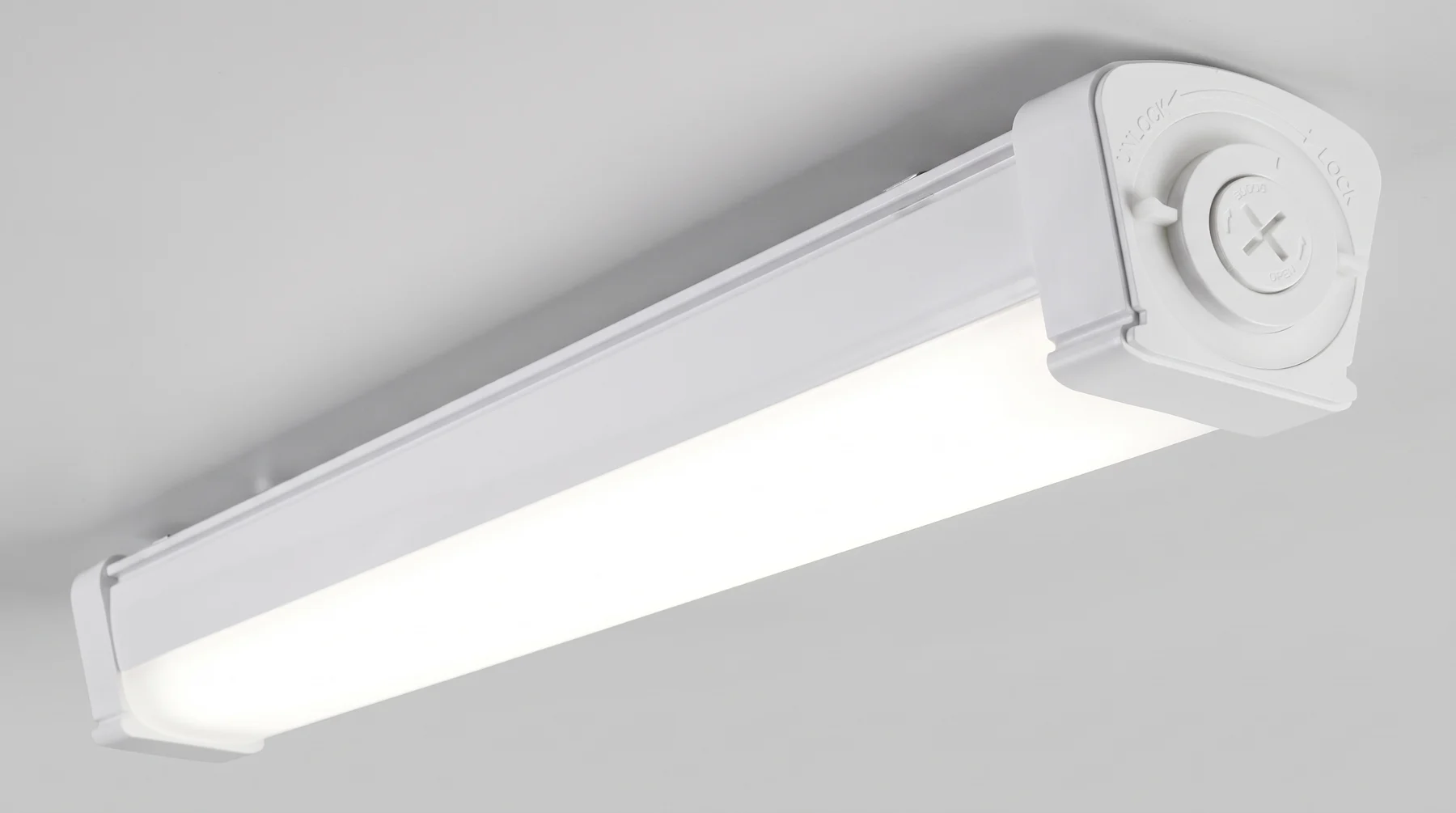

Tri-Proof V2

Dust-proof, waterproof and impact-resistant.

Sealed linear LED fixture for food plants, cold storage, manufacturing, warehouses and parking garages. IP67 + IK08 polycarbonate housing and optics, 160 lm/W, with field-selectable wattage and color temperature.

160 lm/W IP67 + IK08

Jungo Connect Ready

Get a Tri-Proof V2 Quote Spec Sheet (PDF)

TP2 · 2FT · 4FT · 8FT NOM-003-SCFI

3 WATTAGES

3 CCTs

WET LOCATION

NSF

Configure it here ↓

9 WATTAGES ACROSS 3 MODELS

MODEL · LENGTH 2 FT · 4 FT · 8 FT

SWITCH 1 · WATTAGE 10 to 70 W

SWITCH 2 · COLOR TEMP 3000 K · 4000 K · 5500 K

Jungo Connect Pro App and web · Networked control

EFFICACY 160 lm/W Across all 3 models

VOLTAGE 100–277 V~ 50 / 60 Hz · 0–10 V dimmable

PROTECTION IP67 + IK08 Dust, immersion and impact

OPERATION −30 to 50 °C L70 ≥ 100,000 h

WEIGHT 0.8 to 2.7 kg Polycarbonate housing

01 — CONFIGURATION

3 models, 9 wattages

and 3 color temperatures.

Choose the length, then set the wattage and color temperature on the fixture to match the mounting height and the task. A single SKU per length covers all 9 combinations of each model.

CONFIGURATION COMBINATION 14 OF 27

Model LENGTH

2FT 4FT 8FT

Wattage SWITCH 1

20 W 30 W 40 W

Color temperature SWITCH 2

3000 K 4000 K 5500 K

4FT model, 1,240 mm. The most versatile length for aisles, process areas and parking garages. Neutral 4000 K light. Comfortable for long shifts and staffed areas.

YOUR CONFIGURATION 4FT · 30 W · 4000 K

WATTAGE 30 W

LUMEN OUTPUT 4,800 lm 160 lm/W · SERIES EFFICACY

COLOR TEMPERATURE 4000 K

LENGTH 1,240 mm

A different application scene for each Tri-Proof V2 model; light intensity and color are illustrative. Lumen output is calculated at 160 lm/W, the series efficacy.

02 — CONSTRUCTION

Built to be washed,

not to rust.

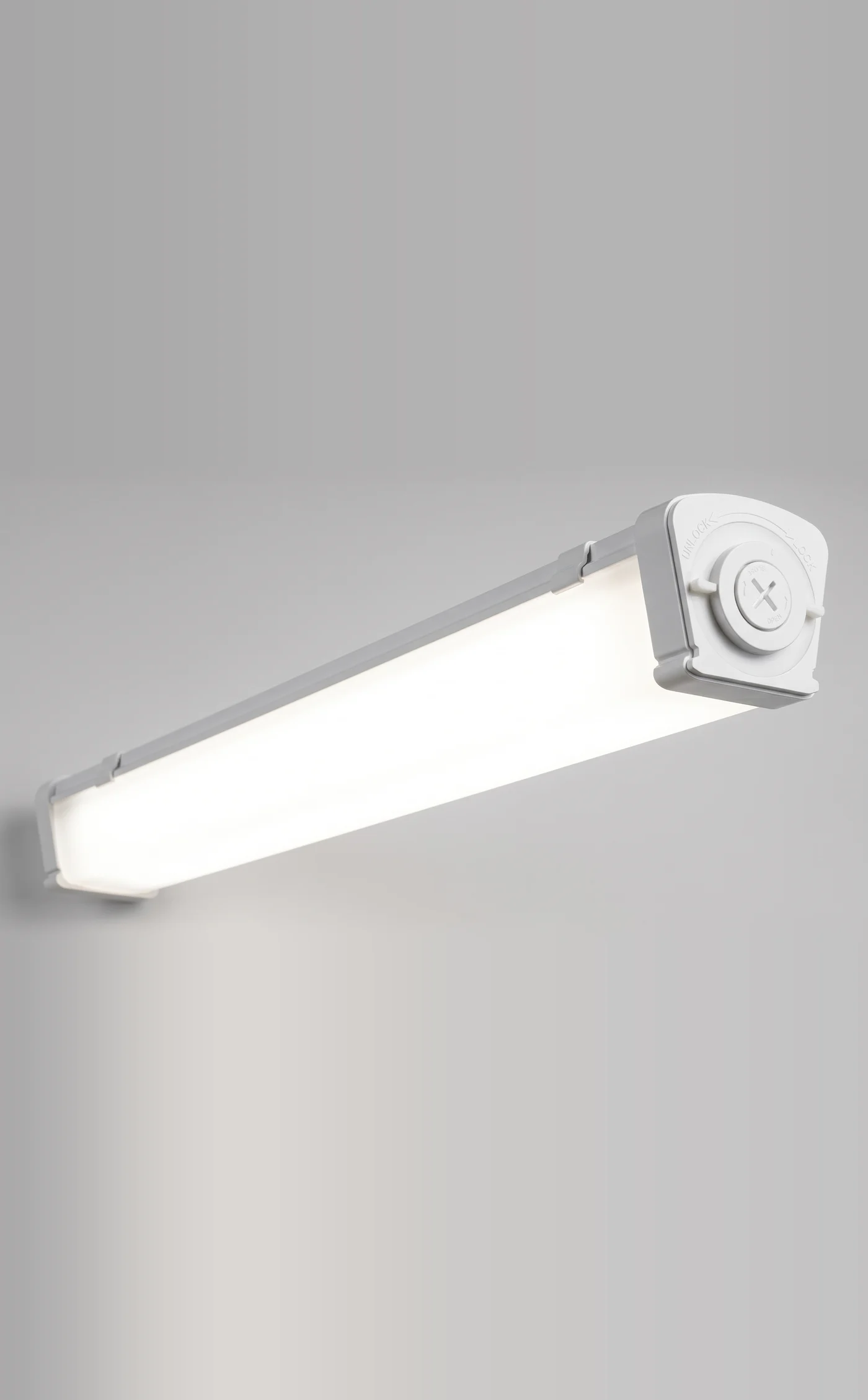

IP67-sealed polycarbonate housing and diffuser: it won't rust or corrode and weighs under 3 kg (6.6 lb). Twist-lock end caps on each side and an opal diffuser that spreads light evenly along the entire fixture.

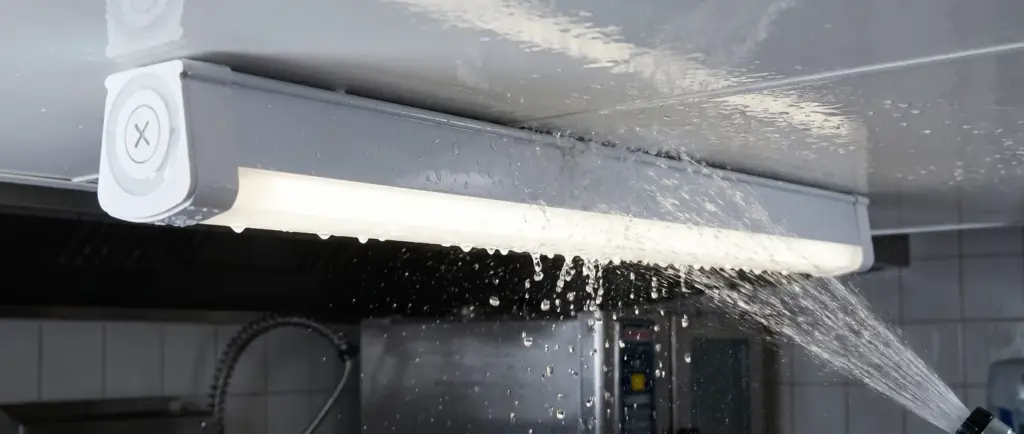

IP67 + IK08 Sealed against dust and temporary immersion, and impact-resistant. Ideal for washdown, condensation and covered outdoor areas.

TRI-PROOF | V2 POLYCARBONATE · 0.8 TO 2.7 KG · 120°

High-efficacy LEDs 160 lm/W across all 3 models and up to 11,200 lm, with CRI > 80 and a 0.90 power factor.

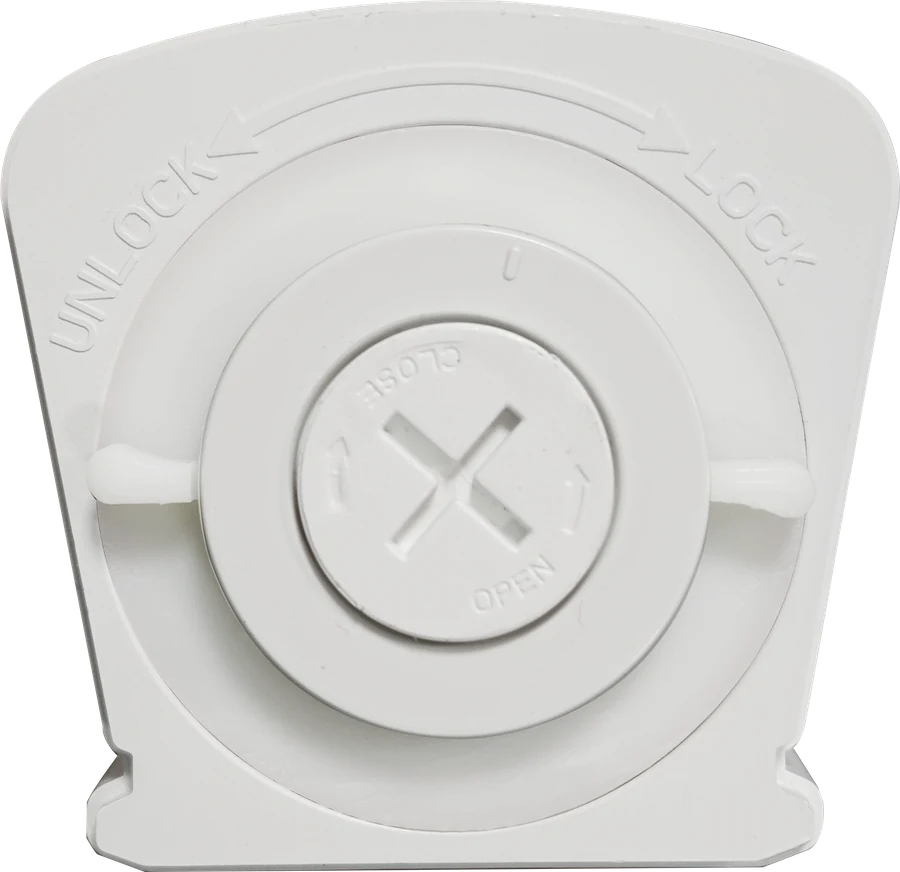

Twist-lock end cap Seals each end against dust and water, with lock and unlock positions.

LUMEN MAINTENANCE 100,000 h L70 per TM-21. CRI > 80, 0.90 power factor, THD < 20% and 2.5 kV surge protection.

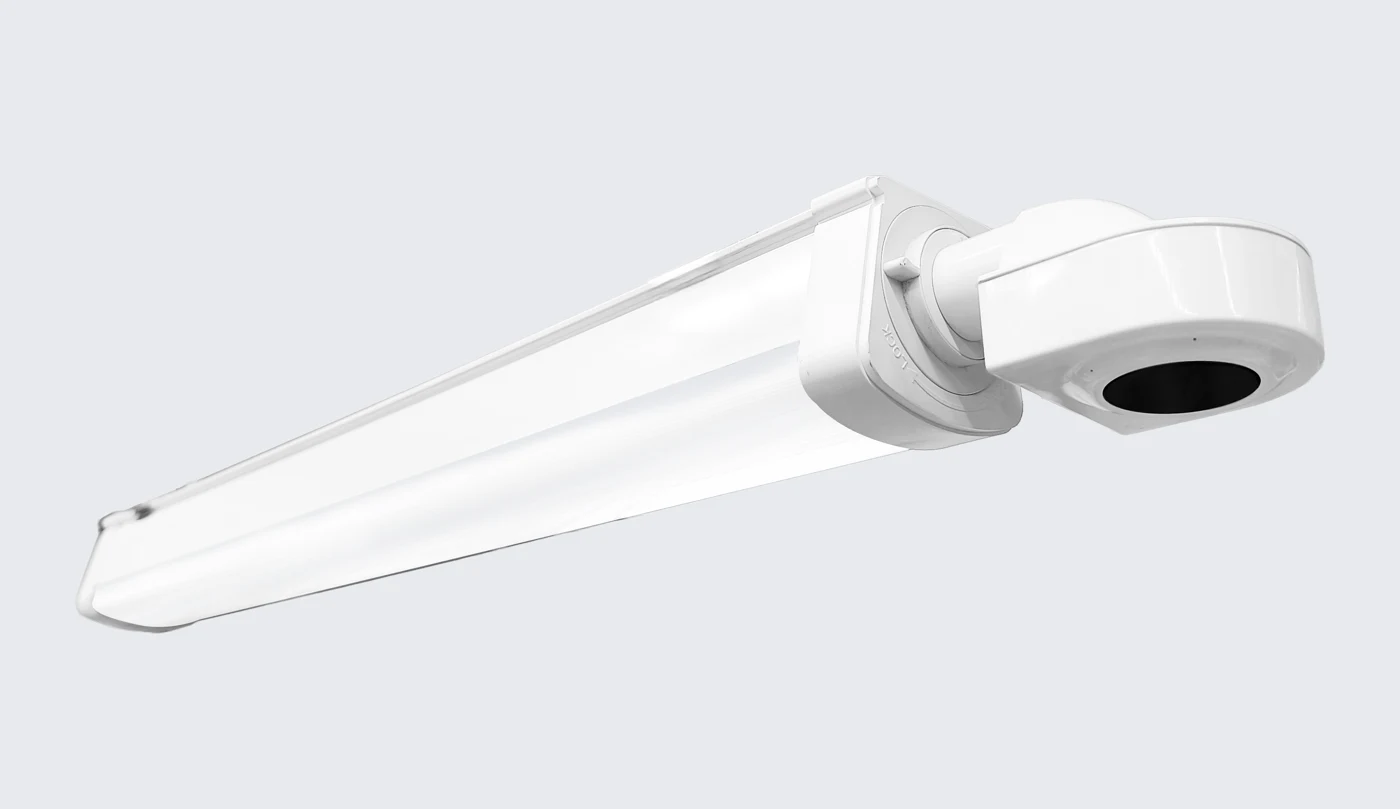

S VERSION · JUNGO CONNECT® Motion and daylight sensor Plug-and-play sensor that connects to the fixture's end cap: it turns on only when there is activity and harvests daylight. Set it up from the Jungo Connect app or web platform. See how Jungo Connect works ↓

03 — APPLICATIONS

From the cold room to the parking garage.

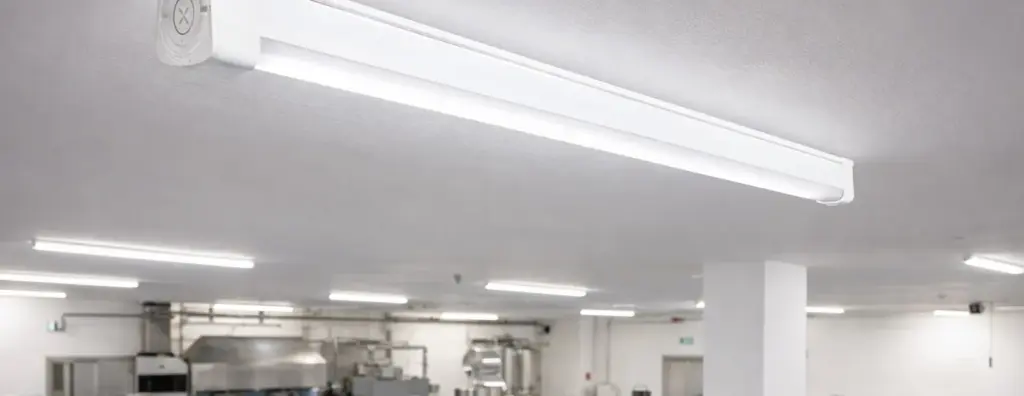

Food and beverage plants

04 — JUNGO CONNECT® · NETWORKED LIGHTING CONTROL

Light only

where it's needed.

With the S version, the Jungo Connect sensor plugs into the Tri-Proof V2 and combines Bluetooth Mesh® (SIG Mesh) connectivity with two sensors: motion for occupancy and illuminance for daylight. No schedules to program: set the rule once and the system works on its own, 24/7.

Occupancy Motion sensor · dims when the area is vacant

Daylight Illuminance sensor · holds your target lux level

● AISLE 14 · BAY 2 TIME-LAPSE

ACTIVE RULE Dim to 20% after 5 min with no occupancy. Returns to 100% when motion is detected.

MICROWAVE SENSOR No occupancy

NO OCCUPANCY 00:00

POWER · TRI-PROOF V2

48 W 20%

VACANT AREA · AUTO DIMMED −80% ENERGY USE

0 W CURRENT POWER DRAW 240 W

SAMPLE DAY · 6:00 AM TO 10:00 PM How your fixture works on a real day

NO OCCUPANCY

1 min 5 min 10 min 15 min

LEVEL WHEN VACANT

Off 10% 20% 50%

Daily chart (power vs. occupancy) — integrates with the interactive block

Occupancy detected

Fixture power

AVERAGE POWER OVER THE DAY 165 W 69% OF FULL POWER · PER FIXTURE instead of 240 W the entire shift. That's 31% less energy, automatically and with no schedules to program. Calculate your savings →

Bluetooth Mesh® (SIG Mesh) Every fixture extends the network. No control wiring.

Motion sensor Detects occupancy and applies your rule: dim or turn off after X minutes.

Illuminance sensor Measures daylight and holds your target lux level.

App and web platform Wi-Fi, Ethernet or 4G via the H20 Gateway. Rules by zone, 24/7.

Discover Jungo Connect

05 — TECHNICAL SPECIFICATIONS

Three lengths. Same performance.

All three models share efficacy, protection and selectable color temperature; length, wattage and weight vary. Wattage and CCT are set on the fixture.

SELECTABLE WATTAGE 2FT: 10 / 15 / 20 W · 4FT: 20 / 30 / 40 W · 8FT: 35 / 52 / 70 W

LUMINOUS EFFICACY 160 lm/W

LUMEN OUTPUT Up to 3,200 lm (2FT) · 6,400 lm (4FT) · 11,200 lm (8FT)

SELECTABLE CCT 3000 K / 4000 K / 5500 K

INPUT VOLTAGE 100–277 V~

FREQUENCY 50 / 60 Hz

DIMMING 0–10 V

POWER FACTOR 0.90

TOTAL HARMONIC DISTORTION (THD) < 20%

CRI > 80

PROTECTION IP67 + IK08

SURGE PROTECTION 2.5 kV

OPERATING TEMPERATURE −30 to 50 °C (−22 to 122 °F)

LUMEN MAINTENANCE L70 ≥ 100,000 h

OPTICS Opal polycarbonate diffuser · 120°

MATERIALS White polycarbonate housing · surface or pendant mount

CERTIFICATIONS NOM-003-SCFI-2014 · NSF food grade

BUILD YOUR ORDER CODE TP2-4FT-1-S Wattage and CCT are set on the fixture, so the code only defines length, battery and connection.

DIMENSIONS

LENGTH 640 / 1,240 / 2,440 mm

WIDTH 68 mm

HEIGHT 66 mm

WEIGHT 0.8 / 1.4 / 2.7 kg

06 — MOUNTING AND ACCESSORIES

Surface, pendant or continuous run.

Ships with clips for surface mounting. Use the pendant kit to suspend it, and with the C version you can link several fixtures into a single line of light. The emergency battery is selected in the order code.

Continuous connection C VERSION

Link several fixtures into a single line of light: up to 1,000 W at 110 V, 2,000 W at 220 V and 2,200 W at 277 V. Calculate below how many fixtures fit on your circuit. CODE · TP2-[MODEL]-[BATTERY]-C

Pendant kit Adjustable steel cable to hang the fixture at the height you need. 2 required per fixture. ACCESSORY · HANGKITTP2 · 2 PER FIXTURE

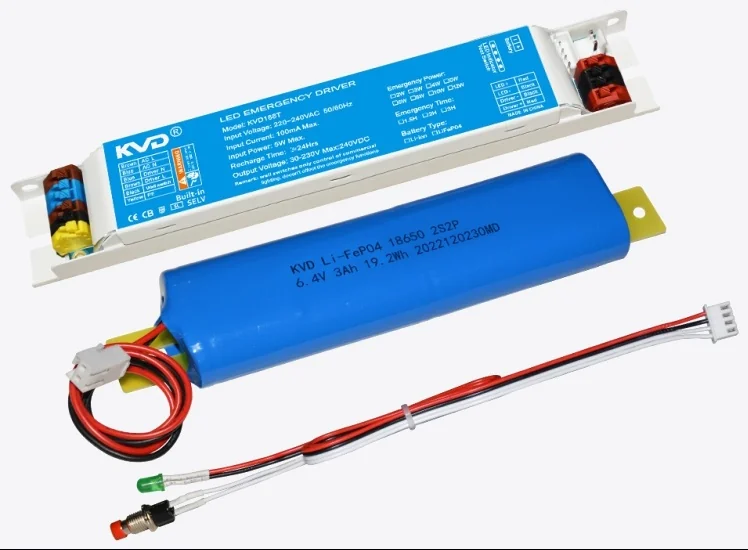

Emergency battery Keeps egress paths lit during a power outage: 90 minutes of backup. OPTION 2 IN THE ORDER CODE 4FT AND 8FT ONLY

07 — SPECIFIERS

Everything you need to specify it.

Clear, verifiable data.

Download the spec sheet with specifications, dimensions and ordering guide. If you need a lighting calculation, our team will run a photometric study at no cost.

PDF

Spec sheet

PDF · ENGLISH (US) · 2026

↓

IES

IES files

LM-63 · REQUEST FROM YOUR REP

→

DLX

Photometric study

NO COST · FOR YOUR PROJECT

→

NSF

FOOD GRADE · FOOD ZONE

Suitable for food and beverage processing areas, where the fixture is washed down along with the line.

NOM

NOM-003-SCFI-2014

Electrical product safety standard for Mexico.

IP67 IK08

Ingress and impact protection

IEC 60529 · IEC 62262

Dust, temporary immersion and impacts in washdown and cold areas.

08 — FREQUENTLY ASKED QUESTIONS

About the Tri-Proof V2

Have another question? A rep will answer you on WhatsApp.

What areas is the Tri-Proof V2 designed for?

Food and beverage plants, cold storage and refrigeration, manufacturing, warehouses, distribution centers and parking garages: any area with dust, humidity, condensation or washdown. Its polycarbonate housing won't rust or corrode.

Can I change the wattage and color temperature on site?

Yes. Each model has 3 wattages (2FT: 10/15/20 W, 4FT: 20/30/40 W and 8FT: 35/52/70 W) and 3 color temperatures (3000, 4000 and 5500 K), selected on the fixture. A single SKU per length covers all 9 combinations.

How many fixtures can I connect in a continuous run?

With the C version, up to 1,000 W at 110 V, 2,000 W at 220 V and 2,200 W at 277 V per run. For example, at 220 V you can link up to 50 4FT fixtures at 40 W. Use the calculator in the mounting section for your project.

Can I add Jungo Connect® control?

Yes. The S version includes the plug-and-play Jungo Connect motion and daylight sensor. The N version (Smart Ready) is ready to add it later. Everything is managed from the app or the web platform.

What certifications and protection does it have?

It complies with NOM-003-SCFI-2014, is rated IP67 + IK08 and is NSF food grade. You can download the spec sheet in the specifiers section; if you need a lighting calculation, we'll run a photometric study at no cost.
