HOME / INDOOR / HIGH BAY / ORION®

HIGH BAY · INDOOR · WAREHOUSES AND DCs

Orion^®.

12 wattages in 4 models.

Linear LED high bay with field-selectable wattage and color temperature. Four models from 115 to 420 W for warehouses, distribution centers and plants over 20 ft, with a fixed 105° optic for open areas or 60° × 110° for rack aisles, and efficacy up to 170 lm/W.

Up to 170 lm/W IP44 + IK08

Jungo Connect Ready

Get a quote Spec sheet (PDF)

OR · SO · MO · HO · SHO UL · E497790

3 WATTAGES

2 CCT

2 OPTICS

4 MODELS

Configure it here ↓

48 COMBINATIONS
IN 4 MODELS

SWITCH 1 · WATTAGE 3 per model · 115 to 420 W

SWITCH 2 · CCT 4000 K · 5000 K

FIXED OPTIC · SET AT ORDER 105° · 60° × 110°

Jungo Connect One App and web · Networked lighting controls

EFFICACY Up to 170 lm/W 105° · 5000 K · per IES files

VOLTAGE 100–277 V High voltage: 200–480 V

PROTECTION IP44 + IK08 10 kV surge protection

OPERATION −40 to 122 °F Rated life 72,000 h

WEIGHT 5.5 to 11.5 lb 2.13 in tall · 14.02 to 28.03 in long

01 — FIELD-SELECTABLE

Set it on site.

Wattage and CCT at install.

When you order, you choose the model, voltage and optic, which is fixed at the factory. On site, the switch on the luminaire sets wattage and color temperature for the mounting height and task.

CONFIGURATION COMBINATION 17 OF 48

Model SET AT ORDER

SO MO HO SHO

Wattage SWITCH 1 · IN THE FIELD

115 W 130 W 155 W

Color temperature SWITCH 2 · IN THE FIELD

4000 K 5000 K

Optic FIXED · SET AT ORDER

105° 60° × 110°

Asymmetric 60° × 110° aisle optic. Spreads 110° across the aisle so light reaches the top of the rack and concentrates 60° along the aisle. Daylight, 5000 K. For warehouses, distribution centers and production.

YOUR CONFIGURATION SO · 130 W · 5000 K · 105°

WATTAGE 130 W

LUMINOUS FLUX 22,100 lm 156 lm/W · PER IES FILE

COLOR TEMPERATURE 5000 K

FIXED OPTIC 105° circular

Flux and efficacy for each combination per IES LM-63 files (48 combinations). The photos show a real rack aisle seen from the forklift with each optic and color temperature; top-of-rack and floor levels are calculated from each file's actual photometry in a reference layout: 10 ft aisle, luminaires 20 ft apart with the long side parallel to the aisle, mounted at 23 ft (SO), 30 ft (MO), 36 ft (HO) and 43 ft (SHO), with three-level racks. We run the photometric layout for your project at no cost.

02 — CONSTRUCTION

Built to work

from end to end.

A die-cast aluminum body only 2.13 in tall, linear LED modules with polycarbonate optics and a central channel that houses the driver and the wattage/CCT switch.

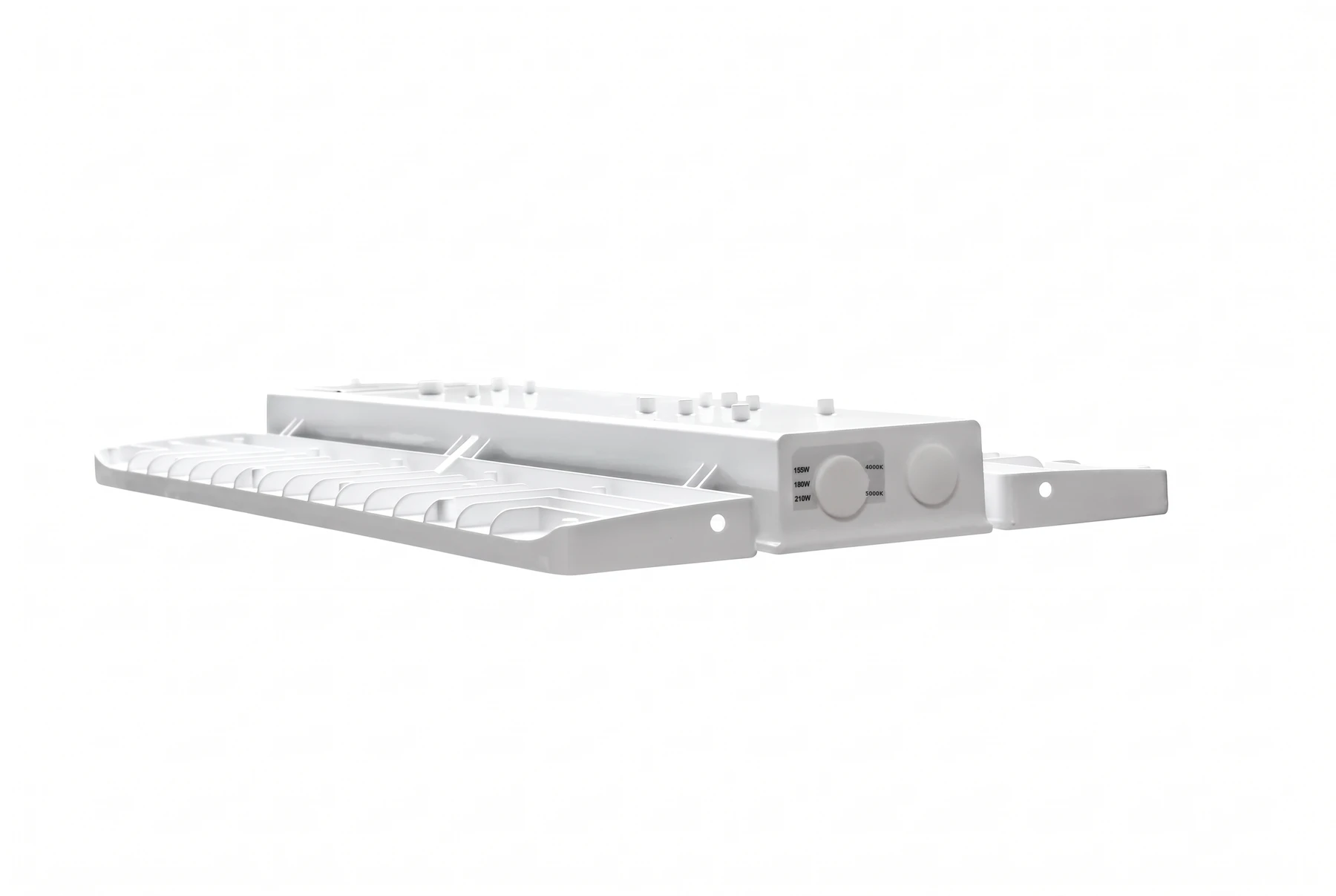

Orion perfil switch 4000K 5000K v2 - Jungo Lighting

Die-cast aluminum Only 2.13 in tall with an integrated heat sink. Operates from −40 to 122 °F without degrading the LEDs or the driver.

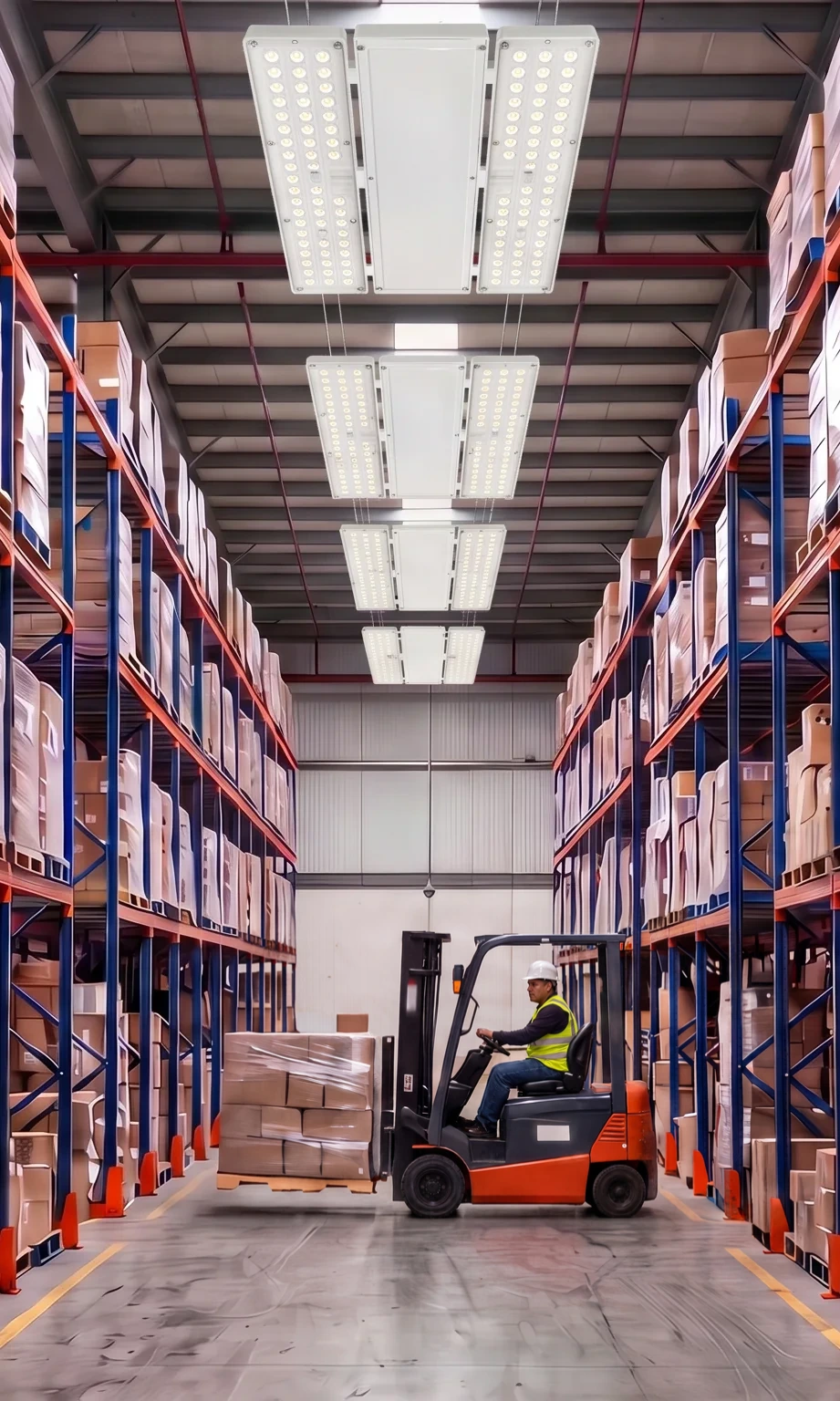

Orion construccion pasillo vertical montacargas v2 - Jungo Lighting

ORION® LINEAR HIGH BAY · 5.5 TO 11.5 LB · SUSPENSION INCLUDED

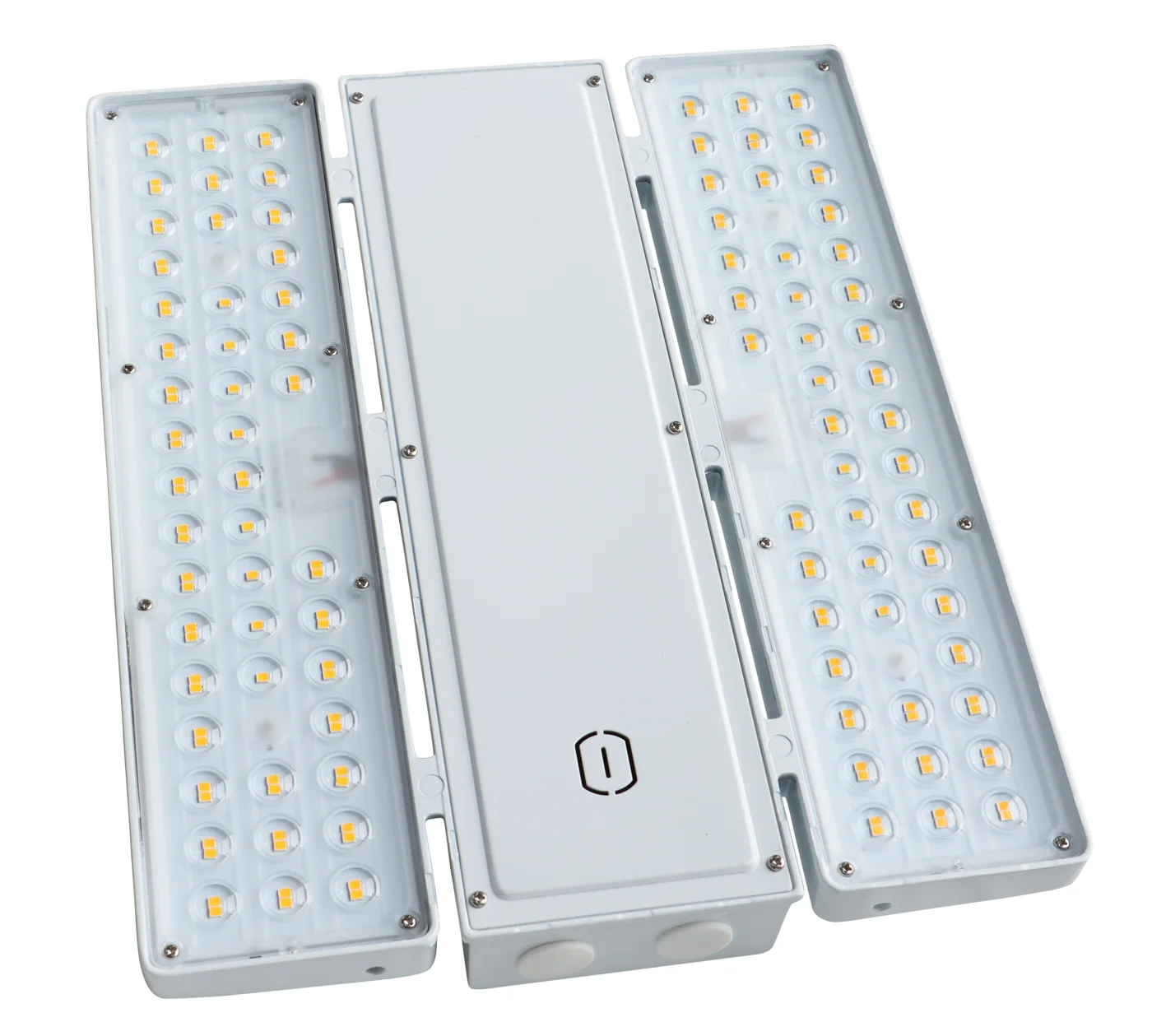

Orion modulos LED lineales vista inferior - Jungo Lighting

IP44 + IK08 Protected against dust and splashing water (IP44) and impact (IK08) for warehouses, DCs and plants.

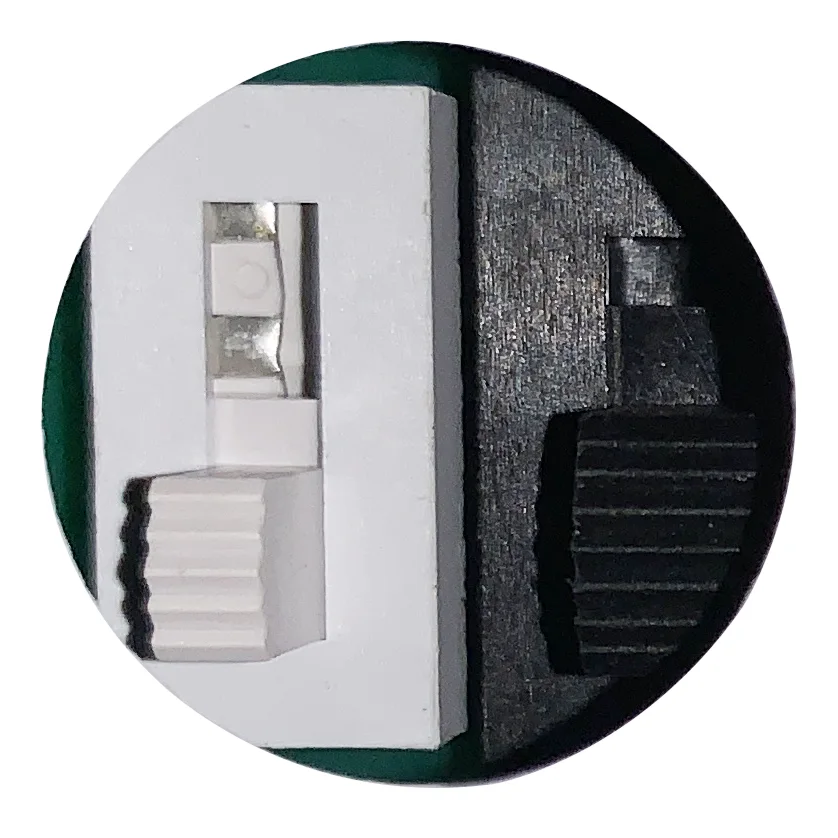

Orion switch de potencia y CCT - Jungo Lighting

Multi-voltage driver 100–277 V or 200–480 V depending on the version you order. The wattage and CCT switch sits in the central channel.

RATED LIFE 72,000 h CRI > 80, power factor > 0.90, THD < 20 % and 10 kV surge protection.

Orion con sensor Jungo Connect One - Jungo Lighting

SMART VERSION · JUNGO CONNECT ONE Jungo Connect One sensor The smart version has a 3-pin receptacle for the Jungo Connect One sensor: microwave occupancy sensing and daylight harvesting. Set it up from the app or the web platform. See how Jungo Connect works ↓

03 — JUNGO CONNECT® · NETWORKED LIGHTING CONTROLS

Light only

where it's needed.

The Jungo Connect One controller is built into the luminaire and combines Bluetooth Mesh® (SIG Mesh) connectivity with two sensors: microwave for occupancy and illuminance for daylight. No schedules to program: set the rule once and the system runs on its own, 24/7.

Occupancy Microwave sensor · dims when the area is vacant

Daylight Illuminance sensor · holds your target lux level

● AISLE 14 · BUILDING 2 TIEMPO ACELERADO

REGLA ACTIVA Dim to 20 % after 5 min with no occupancy. Returns to 100 % when motion is detected.

MICROWAVE SENSOR Occupied

NO OCCUPANCY 00:00

POWER · ORION SHO

42 W 20 %

OPERATING AT 100 % FULL POWER

0 W CURRENT POWER DRAW 210 W

SAMPLE SHIFT · 6:00 AM TO 10:00 PM How your luminaire works on a real day

NO OCCUPANCY

1 min 5 min 10 min 15 min

VACANCY LEVEL

Off 10 % 20 % 50 %

Shift chart (power vs. occupancy)

Occupancy detected

Luminaire power

AVERAGE POWER OVER THE SHIFT 144 W 69 % OF FULL POWER · PER LUMINAIRE instead of 420 W for the whole shift. That is 31 % less energy, automatically and with no schedules to program. Calculate your savings →

Bluetooth Mesh® (SIG Mesh) Every luminaire extends the network. No control wiring.

Microwave sensor Detects occupancy and applies your rule: dim or turn off after X minutes.

Illuminance sensor Measures daylight and holds your target lux level.

App and web platform Wi-Fi, Ethernet or 4G with the H20 Gateway. Rules by zone, 24/7.

Explore Jungo Connect

04 — TECHNICAL SPECIFICATIONS

Four models. Same performance.

SO and MO are 14.02 in long, HO 20.47 in and SHO 28.03 in. All share a 2.13 in profile, field-selectable wattage and CCT, and a fixed 105° or 60° × 110° optic chosen at order.

SO 115 · 130 · 155 W

MO 155 · 180 · 210 W

HO 240 · 270 · 310 W

SHO 310 · 360 · 420 W

DIMENSIONS AND WEIGHT 14.02 × 11.50 × 2.13 in · 5.5 lb

SELECTABLE WATTAGE 155 · 180 · 210 W (field switch)

EFFICACY Up to 170 lm/W (105° · 5000 K)

MAXIMUM FLUX 35,700 lm

SELECTABLE CCT 4000 K / 5000 K

FIXED OPTIC 105° or 60° × 110° · set at order

INPUT VOLTAGE 100–277 V~ (code 1) · 200–480 V~ (code 2) · 50/60 Hz

MATERIALS Die-cast aluminum, white · polycarbonate optic

POWER FACTOR > 0.90

TOTAL HARMONIC DISTORTION (THD) < 20 %

CRI > 80

PROTECTION IP44 + IK08

SURGE PROTECTION 10 kV

OPERATING TEMPERATURE −40 to 122 °F

RATED LIFE 72,000 h

CONTROLS 0–10 V dimming · Jungo Connect Ready

CERTIFICATIONS UL 1598 listed (File E497790)

ORDERING CODE OR-MO-1-2-N Pick the model above and build your code: series, model, voltage, optic and control. Wattage and CCT are set in the field with the switch.

DIMENSIONS BY MODEL · TECHNICAL DRAWING

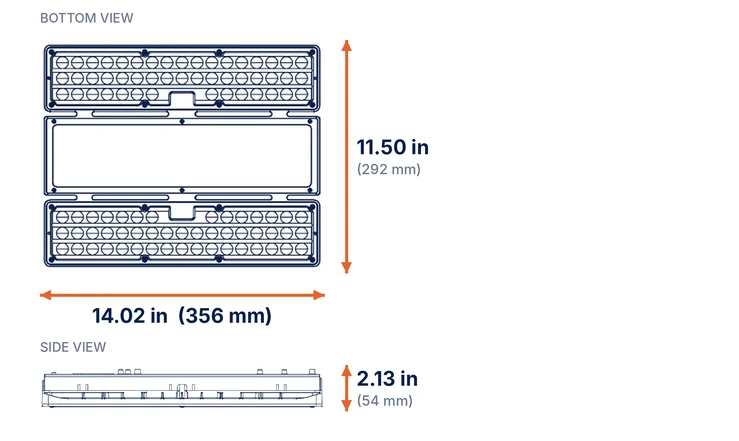

Orion SO dibujo dimensiones EN - Jungo Lighting

SO · 115–155 W 14.02 × 11.50 × 2.13 in · 5.5 lb

Orion MO dibujo dimensiones EN - Jungo Lighting

MO · 155–210 W 14.02 × 11.50 × 2.13 in · 5.5 lb

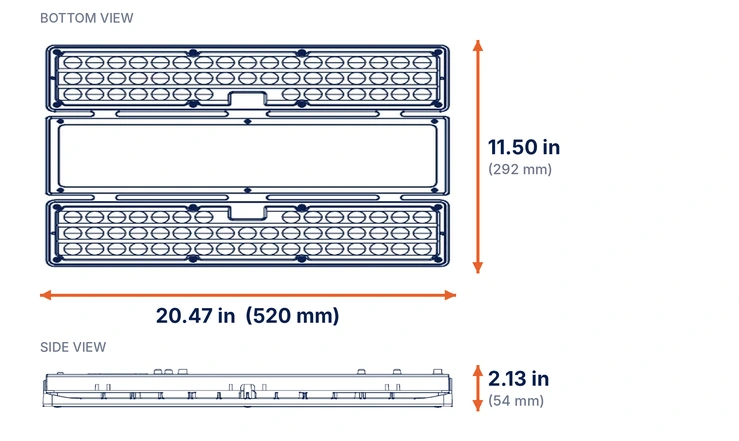

Orion HO dibujo dimensiones EN - Jungo Lighting

HO · 240–310 W 20.47 × 11.50 × 2.13 in · 7.3 lb

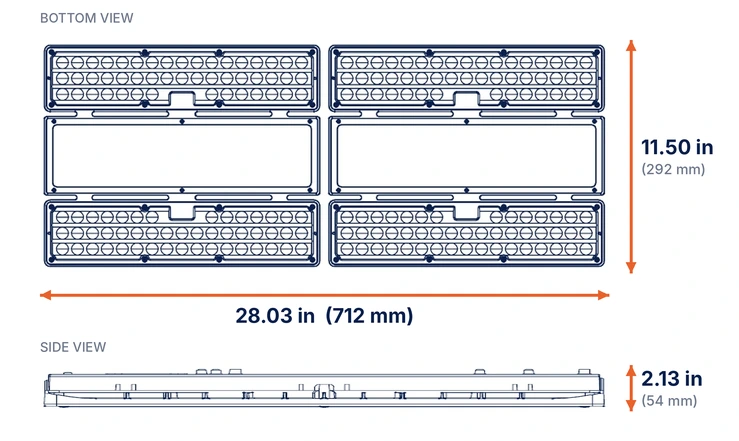

Orion SHO dibujo dimensiones EN - Jungo Lighting

SHO · 310–420 W 28.03 × 11.50 × 2.13 in · 11.5 lb

05 — MOUNTING AND ACCESSORIES

Ready to hang.

The Orion ships with suspension hooks and cables. The wire guard and the emergency battery are quoted separately.

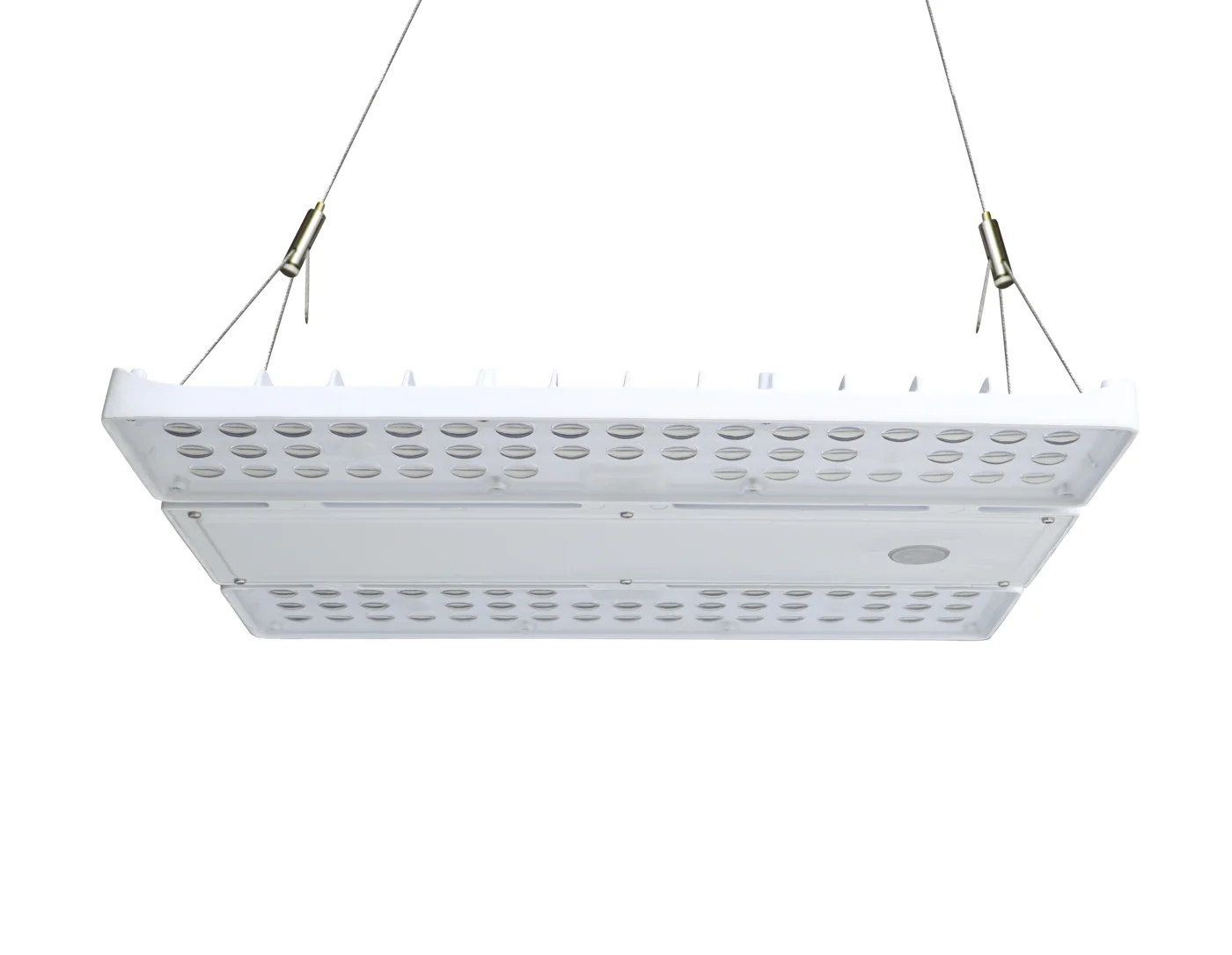

Orion suspension con cable - Jungo Lighting

Cable suspension INCLUDED

Steel hooks and cables for suspended mounting to suit your building structure. STANDARD ON SO · MO · HO · SHO

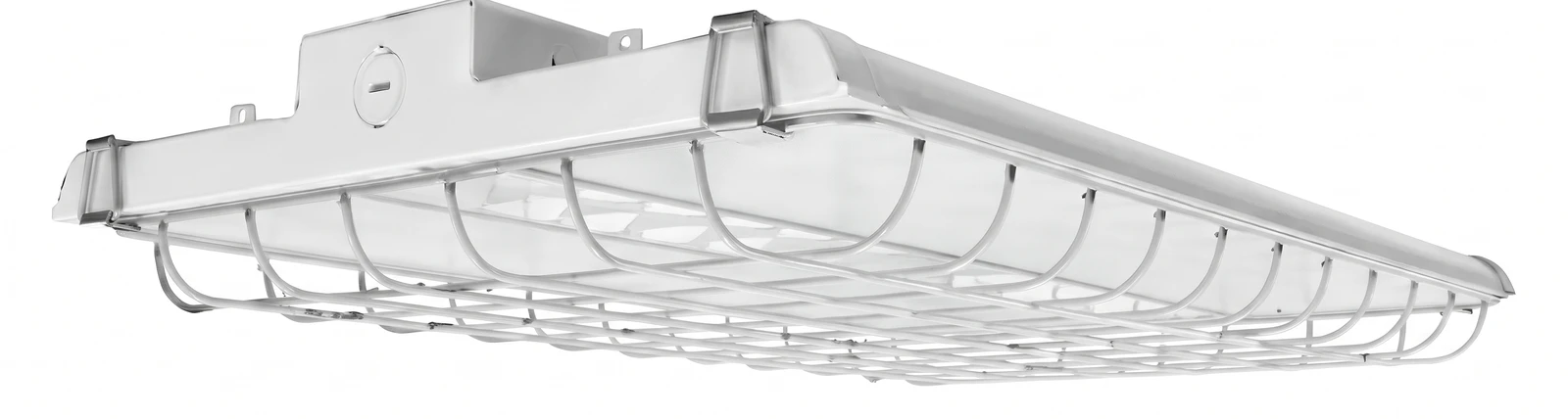

Rejilla protectora Orion v2 - Jungo Lighting

Wire guard Protects the luminaire face in areas with impact risk. ACCESSORY · OR-WIREGARD · ON REQUEST

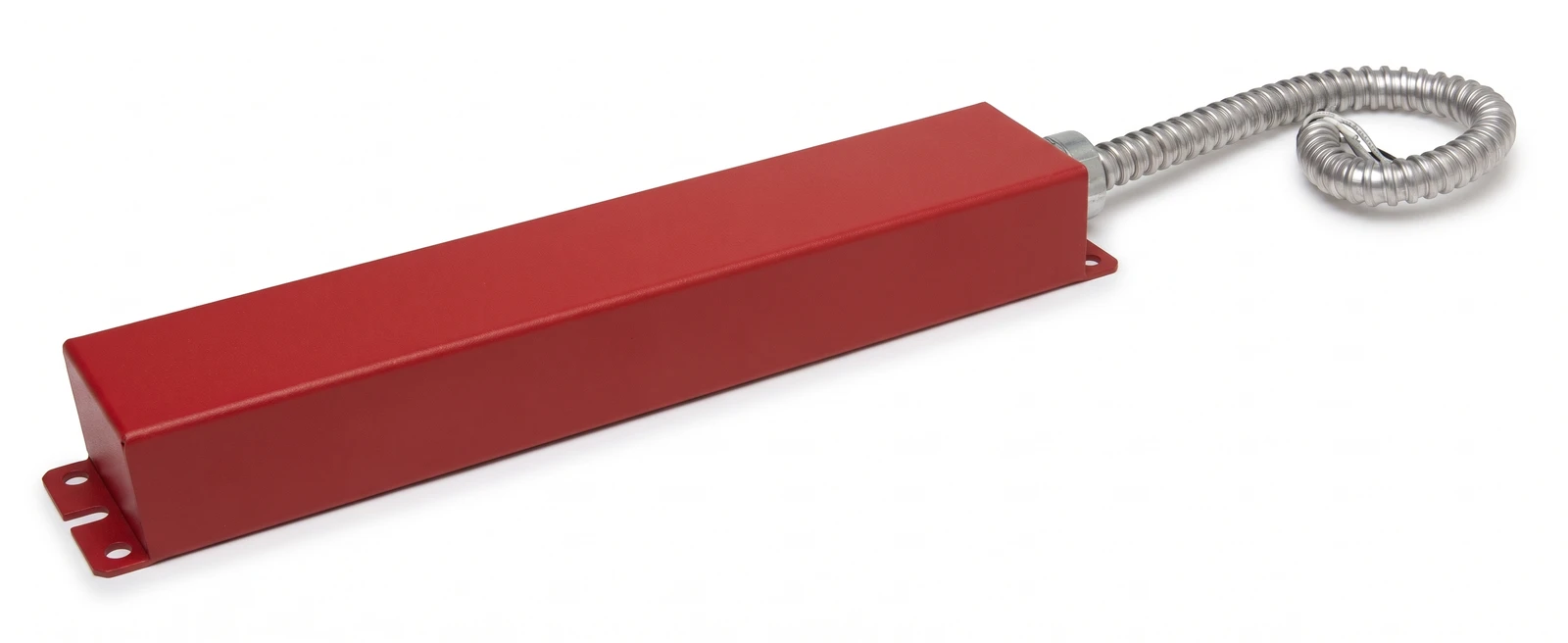

Bateria de emergencia EMA-OR v2 - Jungo Lighting

Emergency battery Keeps egress paths lit during a power outage. ACCESSORY · EMA25-OR · SO · MO ACCESSORY · EMA40-OR · HO · SHO

06 — FOR SPECIFIERS

Everything to specify it.

Certified and verifiable.

Download the spec sheet and IES files for your DIALux or AGi32 calculation. UL certification can be verified in the public UL Product iQ directory.

PDF

Spec sheet

PDF · ENGLISH (US)

↓

IES

IES files

ZIP · 48 ORION FILES · LM-63

↓

DLX

Photometric layout

FREE · FOR YOUR PROJECT

→

UL 1598

UL SOLUTIONS · FILE E497790

UL listed luminaires for general use. Verifiable in the public UL Product iQ directory.

Verify on UL Product iQ →

IP44
IK08

Ingress and impact

IP AND IK RATINGS

Dust, splashing water and impact in warehouses and DCs.

07 — FAQ

About the Orion

Have another question? An advisor will answer you on WhatsApp.

What is the difference between the 105° and the 60° × 110° optic?

The 105° optic is symmetric and suits open areas in warehouses, manufacturing and maintenance shops. The 60° × 110° optic is asymmetric and designed for rack aisles: it spreads 110° across the aisle so light reaches the top of the rack, where the third level sits, and concentrates 60° along the aisle. The Orion is installed with its long side parallel to the aisle. The optic is fixed at the factory and chosen at order.

What can I adjust on site?

The switch on the luminaire sets the wattage (3 options per model) and the color temperature (4000 K or 5000 K). Model, voltage and optic are set at order.

Can the Orion be controlled with Jungo Connect®?

Yes. The Orion is Jungo Connect Ready: the smart version carries the Jungo Connect One sensor for occupancy and daylight harvesting, managed from the app or the web platform with the H20 Gateway.

Is it certified?

Yes. It is UL 1598 listed (UL Solutions, File E497790), verifiable in the public UL Product iQ directory. It is manufactured in Monterrey, Mexico, TAA compliant and shipped duty-free under USMCA.

Where do I get the IES files for my calculation?

In the specifiers section of this page you can download the ZIP with the 48 IES files and the spec sheet. If you prefer, our team runs the photometric layout at no cost.
