HOME / INDOOR / PANELS & TROFFERS / CLEANROOM PANEL
LED PANEL · CLEAN ROOMS

Cleanroom Panel

sealed for cleanrooms

CLT Series in 2×2, 1×4, and 2×4 ft sizes, ranging from 25 to 100 W. Recessed LED panel for clean rooms, pharmaceutical plants, hospitals, and laboratories. Field-adjustable power and color temperature: 5 power settings and 5 CCTs in a single model.

Up to 135 lm/W · 13,500 lm IP66 + IK10 · ISO 14644
Get a Quote Technical data Installation Guide
CLT SERIES ISO 14644 CLASS 4 TO 8 Recessed Cleanroom LED Panel – Jungo Lighting
5 POWERS
5 POWERS
5 CCT
5 CCTs
0–10 V DIMMING
0–10 V DIMMABLE
IP66 + IK10
IP66 + IK10
Cleanroom project? Get a Quote for Your Layout
5 years WARRANTY
NOMINAL EFFICIENCY 135 lm/W
MAXIMUM FLOW 13,500 lm
PROFILE 66 mm
EFFECTIVENESS 135 lm/W nominal efficiency
FLOW 13,500 lm maximum 100 W
PROTECTION IP66 + IK10 sealed and impact-resistant
PROFILE 66 mm Ultra-thin, ceiling panels ranging from 13 to 100 mm
ENVIRONMENT ISO 14644 Grades 4 through 8
01 — SETUP

5 power levels and 5 CCTs

in a single model.

Choose the size and adjust the power and CCT settings based on the task and the layout of the space.

SETTINGS 3 × 5 × 5 COMBINATIONS
Size CLT SERIES
CLT-0606 2×2 ft
 CLT-1203
, 1×4 ft CLT-1206 2×4 ft
Power 0606 and 1203 · 25 to 50 W / 1206 · 60 to 100 W
25 W 30 W 35 W 40 W 50 W
Color temperature IN THE FIELD
3,000 K 4,000 K 5,000 K 5700 K 6,500 K
120° beam. Flat diffuser with a uniform light-emitting surface. 5 CCT. 3000 K warm white · 4000 K neutral white · 5000 K daylight · 5700 K cool daylight · 6500 K cool light. Nominal flow rate by power. 25 W 3,375 lm · 30 W 4,050 lm · 35 W 4,725 lm · 40 W 5,400 lm · 50 W 6,750 lm · 60 W 8,100 lm · 70 W 9,450 lm · 80 W 10,800 lm · 90 W 12,150 lm · 100 W 13,500 lm.
YOUR SETTINGS CLT-0606 · 50 W · 4000 K · 120°
POWER 50 W
LUMINOUS FLUX 6,750 lm 135 lm/W · RATED
COLOR TEMPERATURE 4,000 K
BEAM ANGLE 120°
ATTENUATION 0–10 V

Rated luminous flux = power × efficacy (135 lm/W). Specifications are subject to change.

02 — CONSTRUCTION

Sealed for

clean rooms.

Ultra-slim profile, IP66 protection, and adjustable recessed mounting kit: compatible with ceiling recesses ranging from 13 to 100 mm.

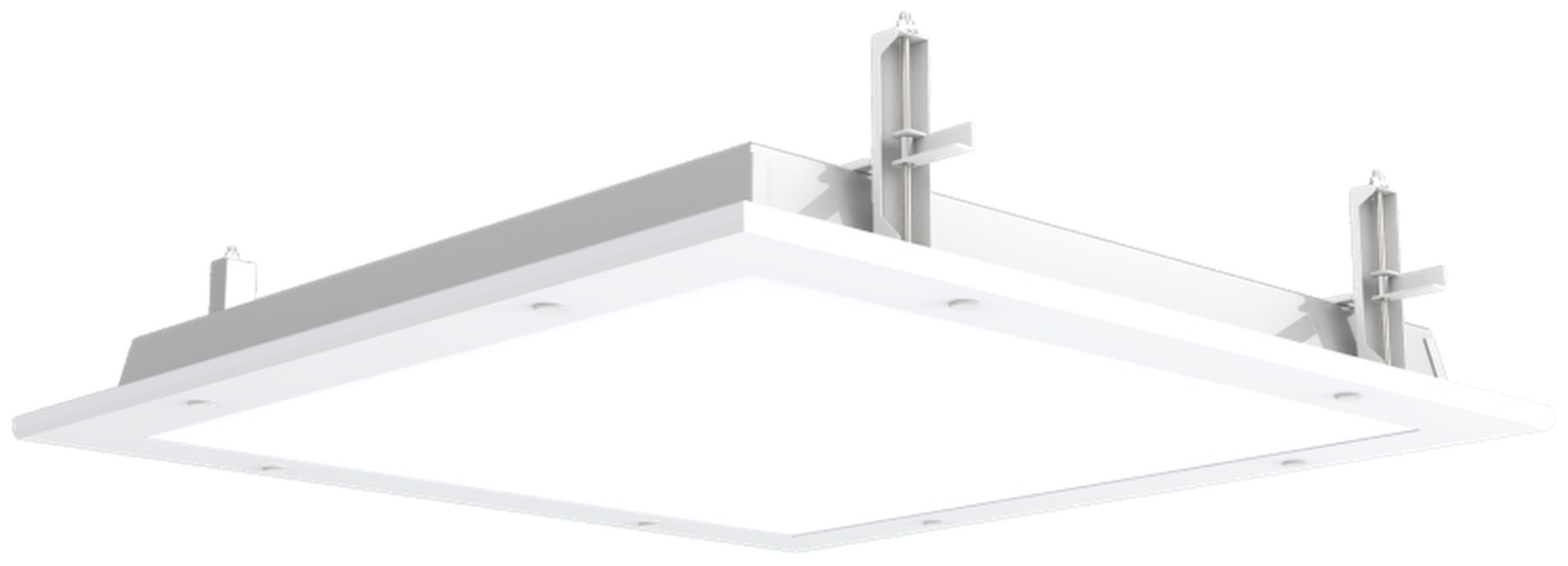

Recessed Cleanroom LED Panel – Jungo Lighting
Recessed Kit Adjustable mounts for ceiling panels ranging from 13 to 100 mm; rotate 90°. Included.
Recessed Cleanroom LED Panel – Jungo Lighting CLEANROOM PANEL Recessed LED PANEL · CLT SERIES · 66 MM PROFILE

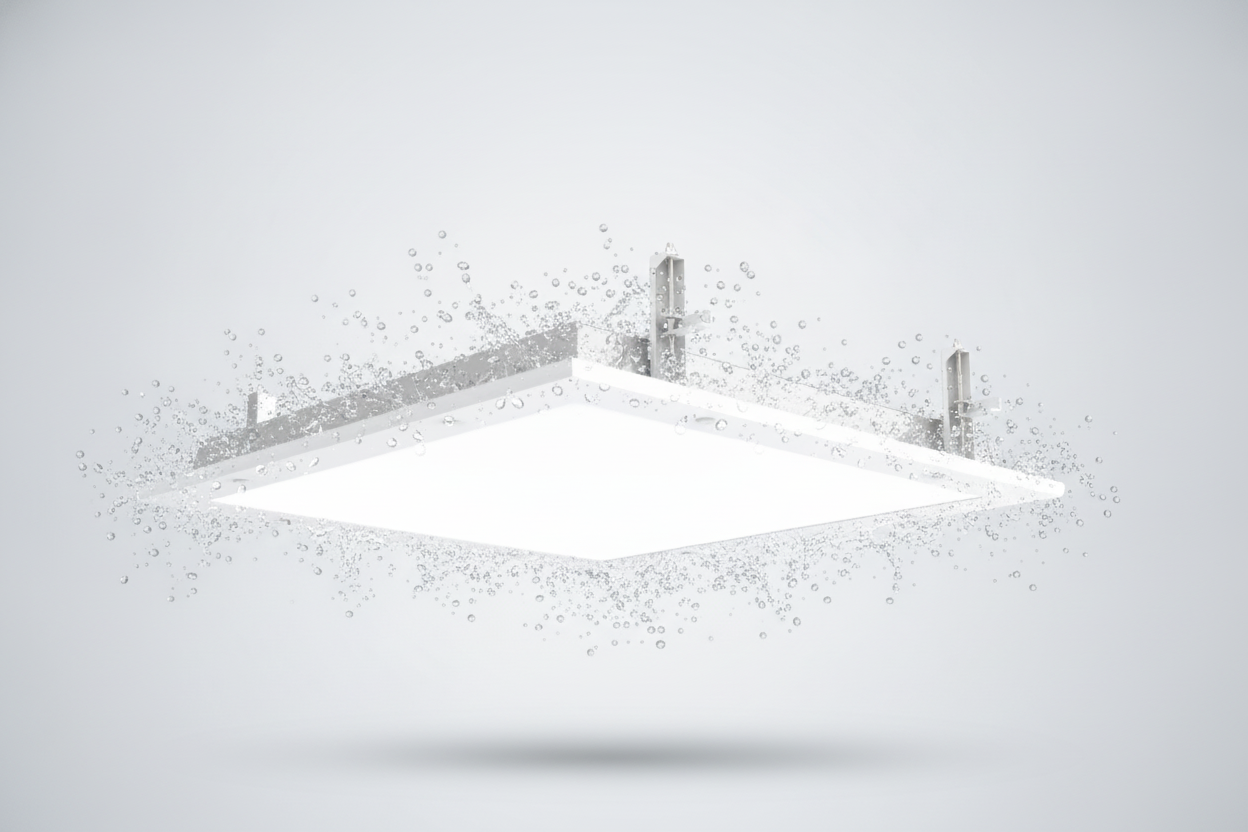

Cleanroom Panel LED sellado IP66 contra agua y limpieza
Rubber caps They cover the frame screws for a seamless, easy-to-clean finish.
Recessed Cleanroom LED Panel – Jungo Lighting
Flat diffuser Uniform light distribution, 120° beam angle.
PROTECTION IP66 + IK10 Sealed: Protects against dust and liquids and is impact-resistant. Withstands loads of up to 600 lb / 272 kg.
LED Panel in a Clean Room
CONTROLLED AREAS · ISO 14644 For areas with controlled particulate levels Specified to restrict the number of particles: ISO 14644 Classes 4 through 8. Standard LED module for future upgrades and a removable hook that cuts the packaging volume in half.
03 — TECHNICAL SPECIFICATIONS

Three sizes. Same performance.

The CLT-0606 measures 2×2 ft, the CLT-1203 measures 1×4 ft, and the CLT-1206 measures 2×4 ft. All have a 66 mm profile, come with a recessed mounting kit, and have a 120° beam angle.

Specifications Technical Data
Dimensions Measurements and Cutting
SELECTABLE POWER 25–50 W (0606 and 1203) / 60–100 W (1206)
SELECTABLE CCT 3,000 / 4,000 / 5,000 / 5,700 / 6,500 K
LUMINOUS FLUX Up to 6,750 lm (0606, 1203) / 13,500 lm (1206)
NOMINAL EFFICIENCY 135 lm/W
BEAM ANGLE 120°
VOLTAGE 100–277/347 V~
ADJUSTABLE 0–10 V
IRC (CRI) ≥ 80
POWER FACTOR > 0.9
HARMONIC DISTORTION (THD) < 18 %
PROTECTION IP66 + IK10
TEMPERATURE −25 to 45 °C
SERVICE LIFE > 50,000 h
ASSEMBLY Recessed, kit included
CEILING 13–100 mm thick
MAXIMUM LOAD 600 lb · 272 kg
CERTIFICATION ETL (Intertek) · NOM
ORDERING GUIDE CLT – 0606 – 50W Series · size · maximum power. 0606 = 2×2 ft 50 W · 1203 = 1×4 ft 50 W · 1206 = 2×4 ft 100 W.
DIMENSIONS BY MODEL · TECHNICAL DRAWING
CLT-0606 · 2×2 FT 668 × 668 × 66 mm 26.3 × 26.3 × 2.6 in · Cutout 627–635 × 627–635 mm (24.69–25 in)
CLT-1203 · 1×4 FT 1278 × 368 × 66 mm 50.31 × 14.49 × 2.6 in · Cutout 1237–1245 × 327–335 mm (48.70–49.02 × 12.87–13.19 in)
CLT-1206 · 2×4 FT 1278 × 668 × 66 mm 50.31 × 26.3 × 2.6 in · Cut 1237–1245 × 627–635 mm (48.70–49.02 × 24.69–25 in)
04 — APPLICATIONS

Where it is installed.

The Cleanroom Panel is specified for use in areas where particle counts are controlled; it features a recessed design and includes a recessed kit.

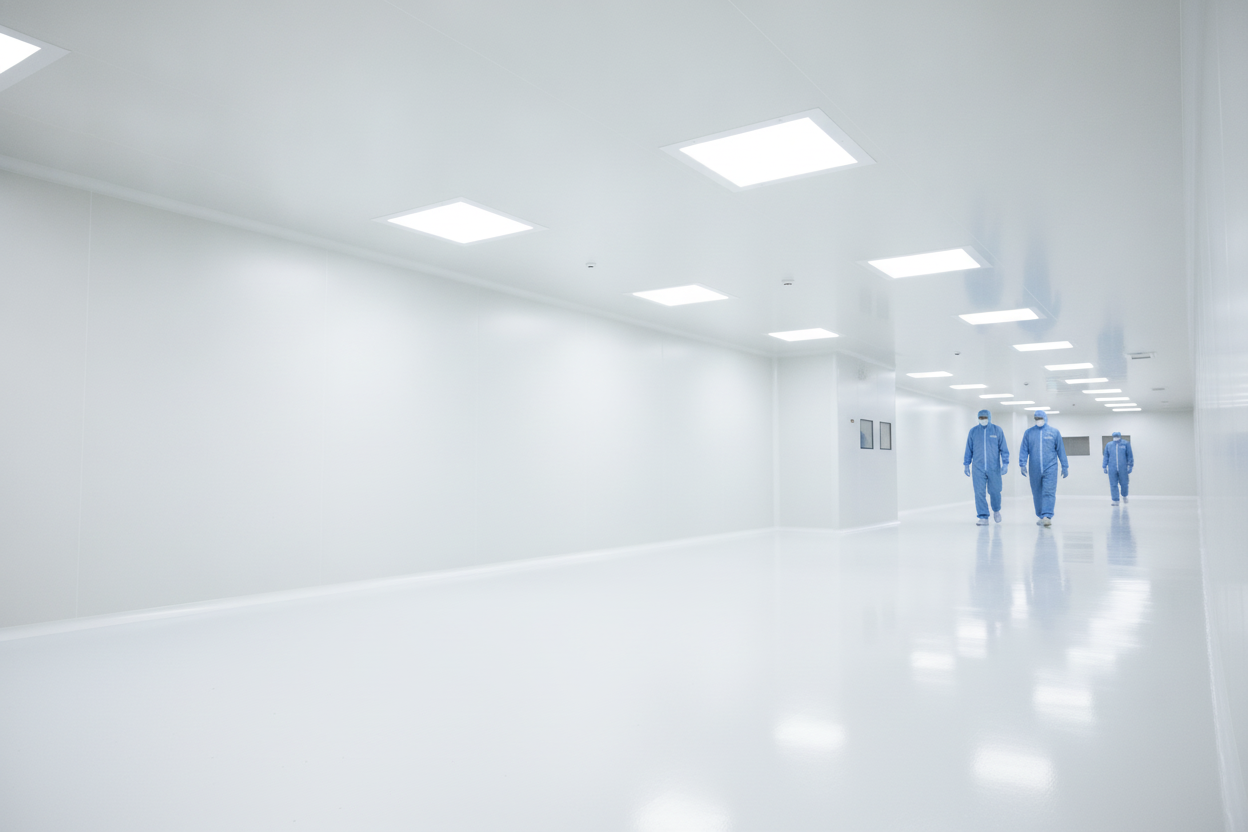

LED Panel in a Clean Room
Clean Rooms Areas with controlled particle levels according to ISO 14644, Classes 4 through 8.

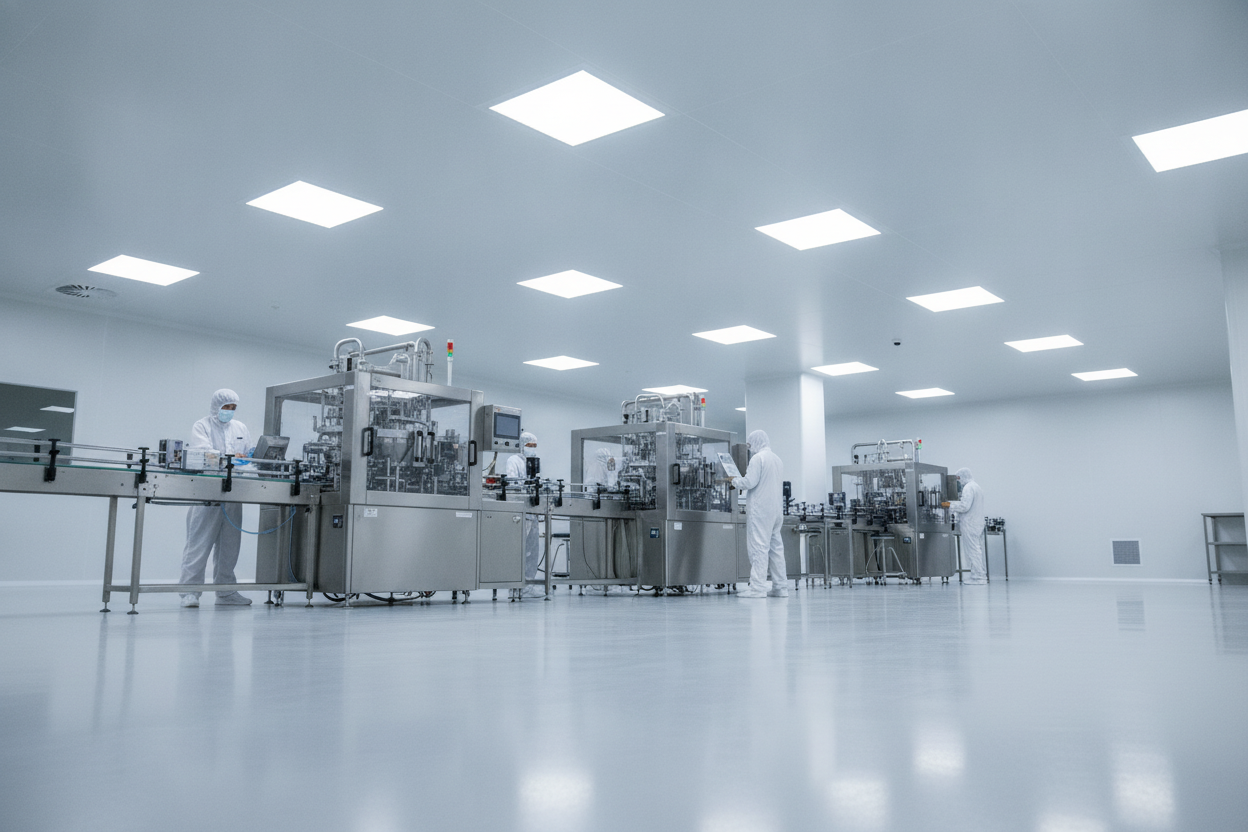

LED Panel at a Pharmaceutical Plant
Pharmaceutical plants Process areas that require sealed, easy-to-clean lighting.

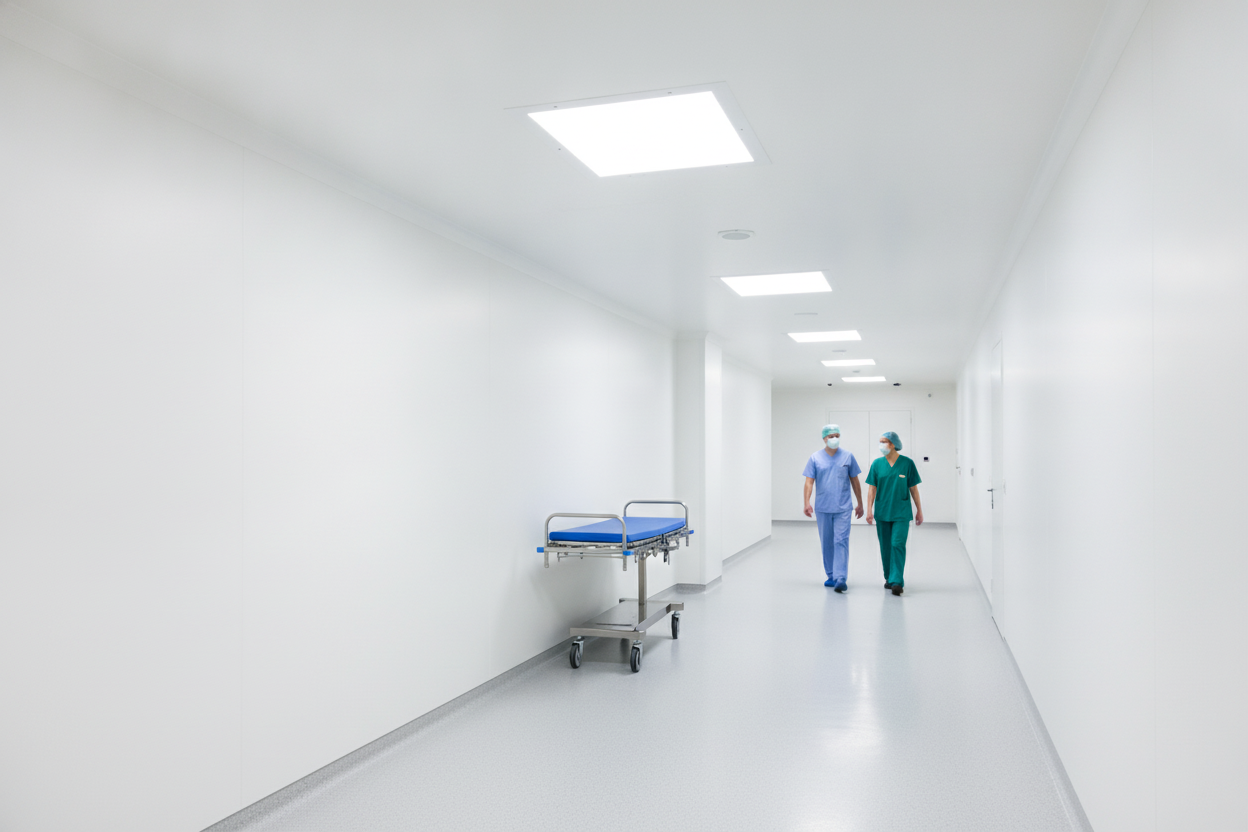

LED Display in a Hospital
Hospitals Clinical areas that require sealed and clean lighting.

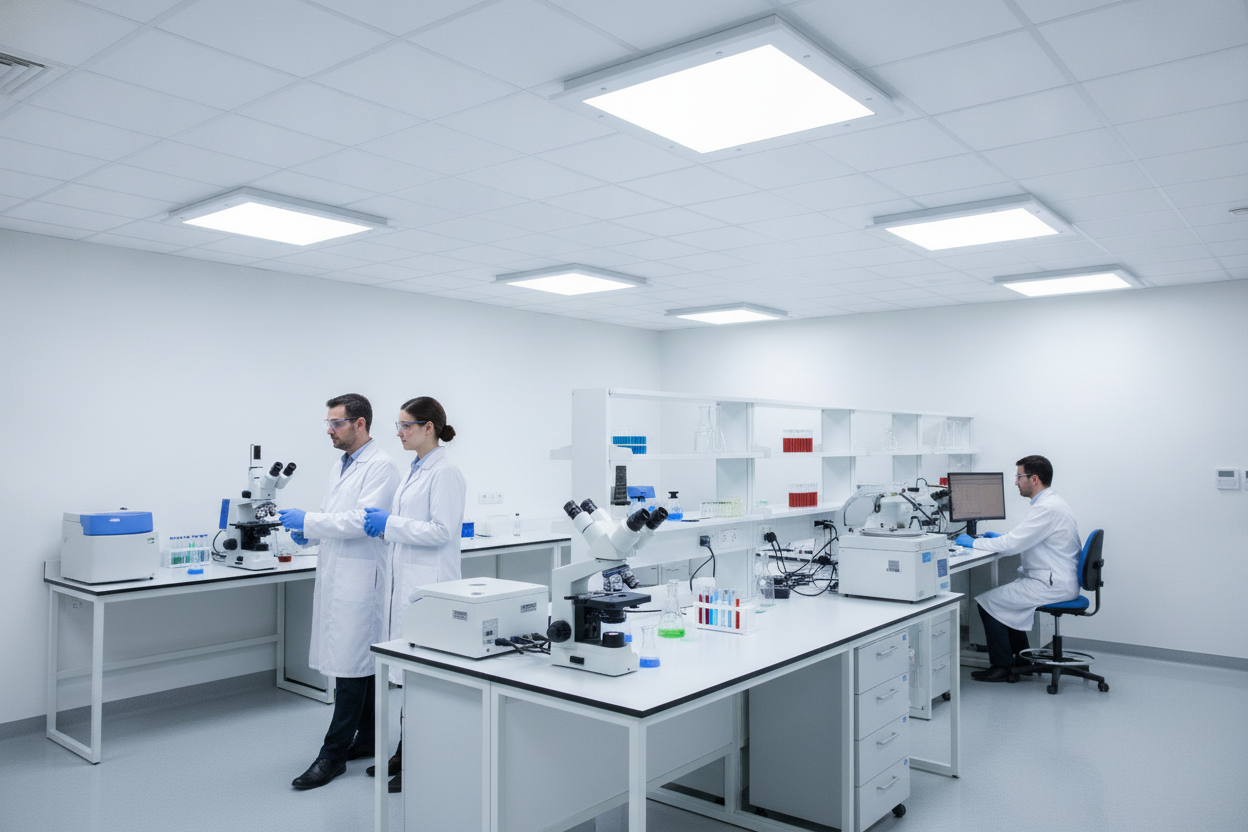

LED Panel in a Laboratory
Laboratories Particle-controlled spaces with ceiling heights ranging from 13 to 100 mm.
ASSEMBLY Recessed with kit (included as standard)
CONTROL Dimmable 0–10 V (line-powered)
INCLUDES Cleanroom LED Panel · Recessed Installation Kit · Instructions

05 — SPECIFICATIONS

Everything needed to specify it.

Certified and verifiable.

Download the technical data sheet and IES files for your calculations in DIALux or AGi32. ETL (Intertek) and NOM certified.

PDF

Technical data

PDF · SPANISH (MX)

↓

High School

IES Archives

ZIP · CLT SERIES

↓

PDF

Installation Guide

PDF · SPANISH (MX)

↓
ETL Mark Dark – Jungo Lighting

ETL

INTERTEK

ETL-certified (Intertek) light fixture.

NOM Mark White – Jungo Lighting

NOM

OFFICIAL MEXICAN STANDARD

Safety and Efficiency for Mexico.

IP66
IK10

Tightness and Impact

IP AND IK RATINGS

It protects against dust and liquids and is impact-resistant.

06 — FREQUENTLY ASKED QUESTIONS

About the Cleanroom Panel

Do you have any other questions? Write to us, and an advisor will get back to you.

What does ISO 14644 Class 4 through 8 mean?

+

ISO 14644 is the standard that classifies cleanrooms based on the number of particles allowed in the air. The Cleanroom Panel is specified for areas with particle control classes 4 through 8.

How do I change the power and CCT?

+

In the field. Each model offers 5 power settings and 5 CCTs (3000, 4000, 5000, 5700, and 6500 K): from 25 to 50 W for the CLT-0606 and CLT-1203, and from 60 to 100 W for the CLT-1206.

Is it mitigable?

+

Yes. It is dimmable via a 0–10 V line.

What is the maximum thickness of the ceiling panel it can accommodate?

+

From 13 to 100 mm with the included recessed kit. The cutout size is specified in the dimensions table for each model.

What kind of warranty does it come with?

+

5-year warranty.
