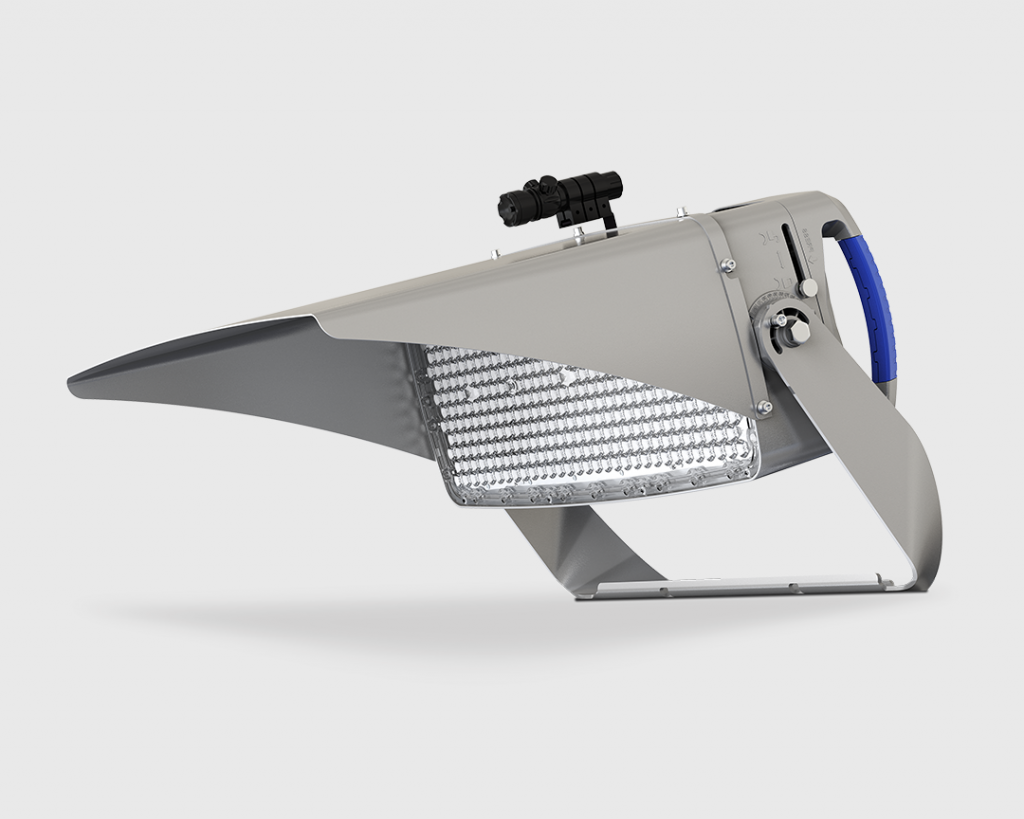

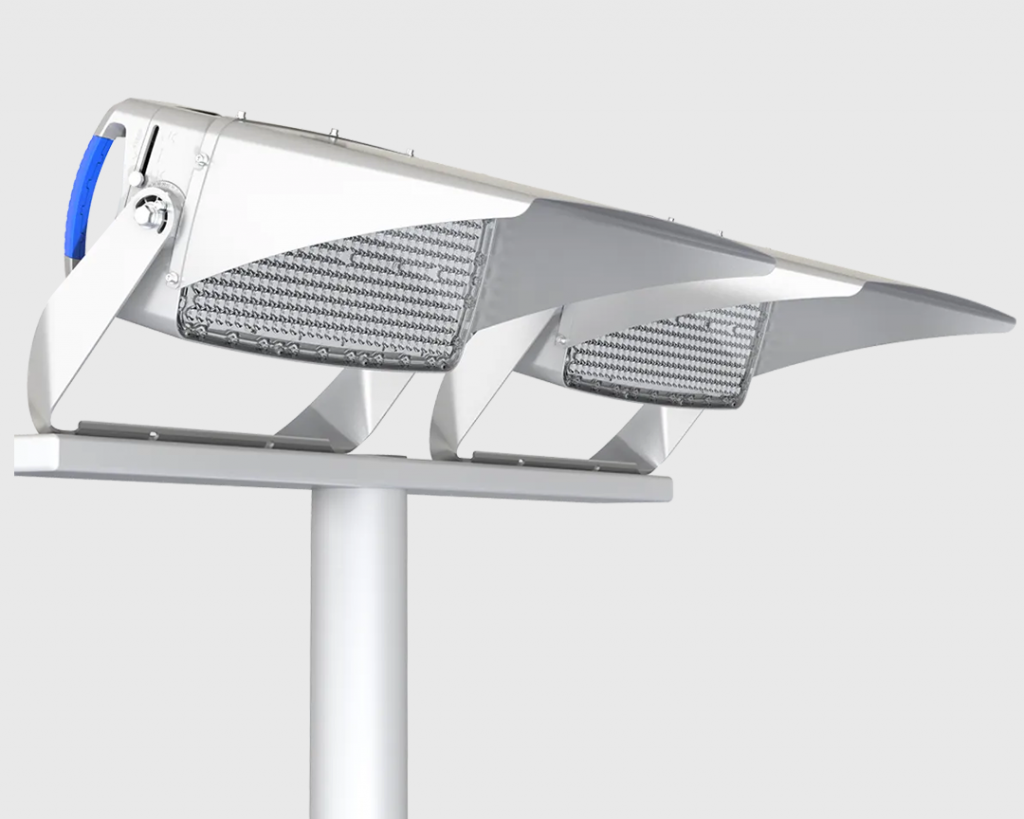

Stadium Light
Sports Light

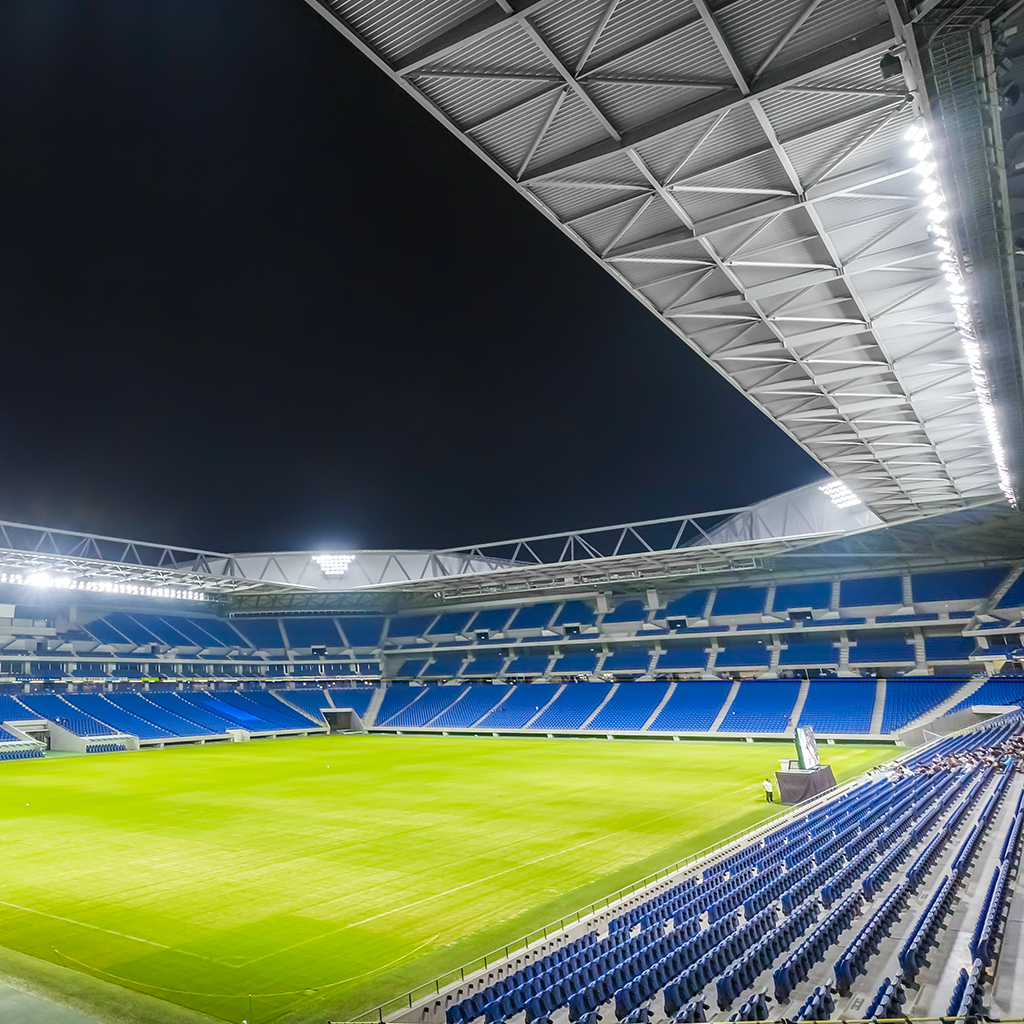

Jungo Lighting's Stadium Light Series illuminates the playing field with cutting-edge technology. Designed for high competition and major sporting feats, the Stadium Series offers precision lighting with unmatched energy efficiency and performance. Each luminaire is built to maximize visibility, reduce glare and provide the durability to withstand any weather conditions.
IP66 Splash resistant
IK10 Impact resistant
160LM/W
Luminous Efficiency
Jungo Connect
Ready
Overview
Jungo Connect
Dimensions
Technical data
Luminous Efficiency
160LM/W
Optics
Polycarbonate
Opening angle
15º, 20º, 40º or 60º.
Luminous flux
128,000lm
Modular structure

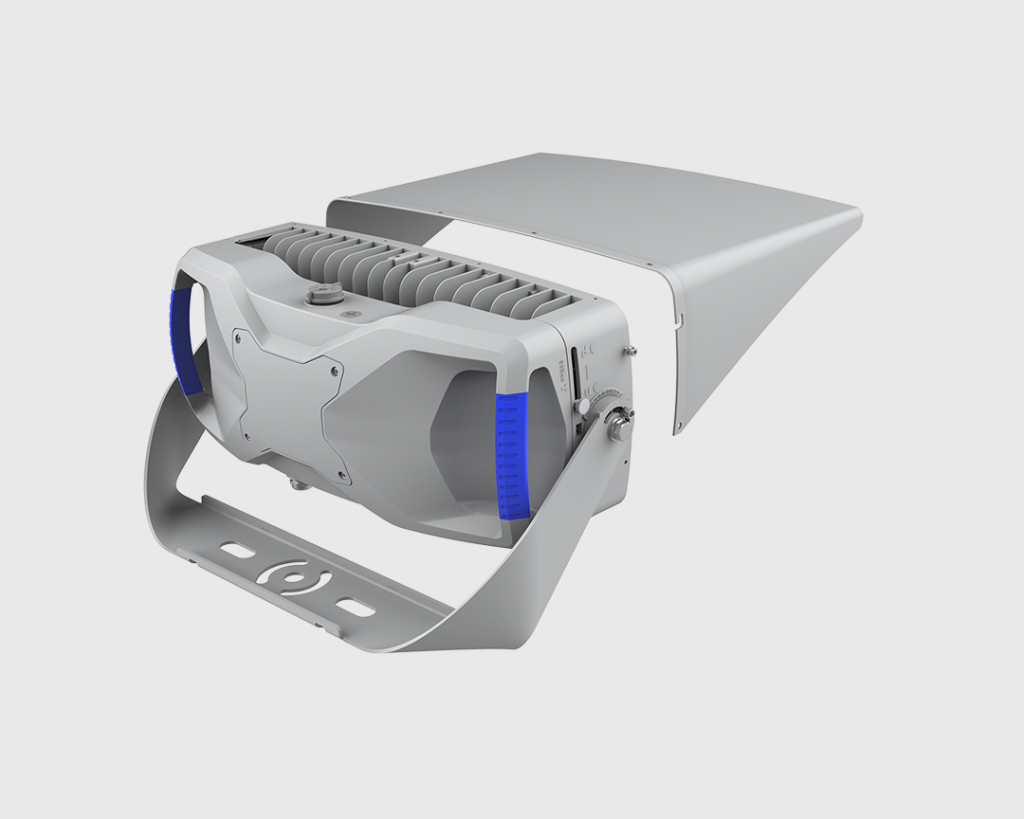

Its modular structure facilitates installation and maintenance. Modify or replace components without complications.
Durability and Resistance
With an IP66 rating, Venus is immune to dust and water, IK10 impact resistance, and is robust against the most demanding conditions. In addition, it is equipped with surge protection up to 4 kV.
Easy to handle
Integrated handles make it easy to adjust and position in the field.
| Luminous efficacy | 160 LM/W |
| Input voltage | 110 - 277 V~ (Multivoltage) |
| Dimmable | 0 - 10 V |
| IRC | >80 |
| Beam Angle | 15°, 20°, 40° or 60°. |
| Operating temperature | -40 to 50 °C |
| Mounting | Rotable Bracket |
| Optics | Polycarbonate |
| Protection | IP66 |
| Resistance | IK10 |
