HOME / INDOOR / HIGH BAY / VENUS | GEN 5®

HIGH BAY · MANUFACTURED IN MONTERREY

Venus Gen 5^®.

27 luminaires in one.

Field-adjustable industrial high bay with a triple switch: power, color temperature and beam angle. One luminaire for mid-height ceilings and high-bay facilities, with efficacy up to 200 lm/W.

Up to 200 lm/W IP65 + IK08

Jungo Connect Ready

Get a Venus Gen 5 quote Spec sheet (PDF) View installation guide

VN5-FLEX UL · E497790

3 POWER LEVELS

3 CCTs

3 BEAM ANGLES

WET LOCATION

Configure it here ↓

27 CONFIGURATIONS
IN ONE LUMINAIRE

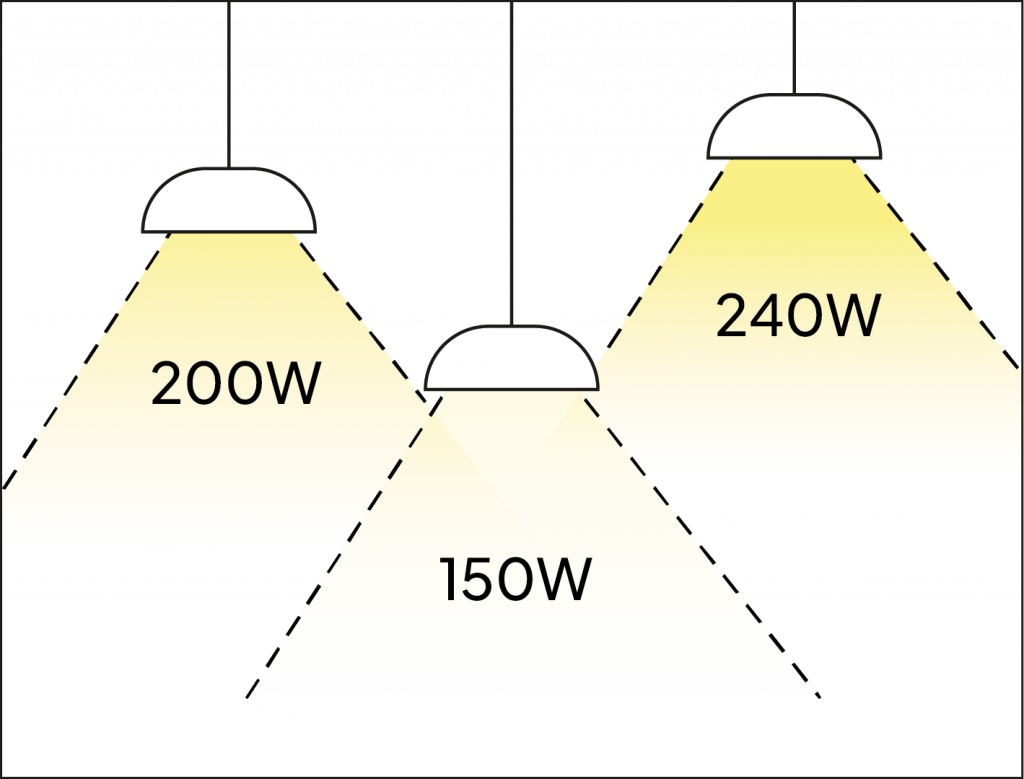

SWITCH 1 · POWER 150 W · 200 W · 240 W

SWITCH 2 · COLOR TEMPERATURE 4000 K · 5000 K · 5700 K

SWITCH 3 · BEAM ANGLE 60° · 90° · 110°

Jungo Connect Pro App & web · Networked controls

EFFICACY Up to 200 lm/W Values per model in IES files

VOLTAGE 100–277 V FLEX-HV: 200–480 V

PROTECTION IP65 + IK08 2.5 kV surge protection

OPERATION −22 to 131 °F 100,000 h lumen maintenance

WEIGHT 6.0 lb Ø 12.6 in · 4.6 in tall

01 — TRIPLE SWITCH

Configure it on site.

Without changing models.

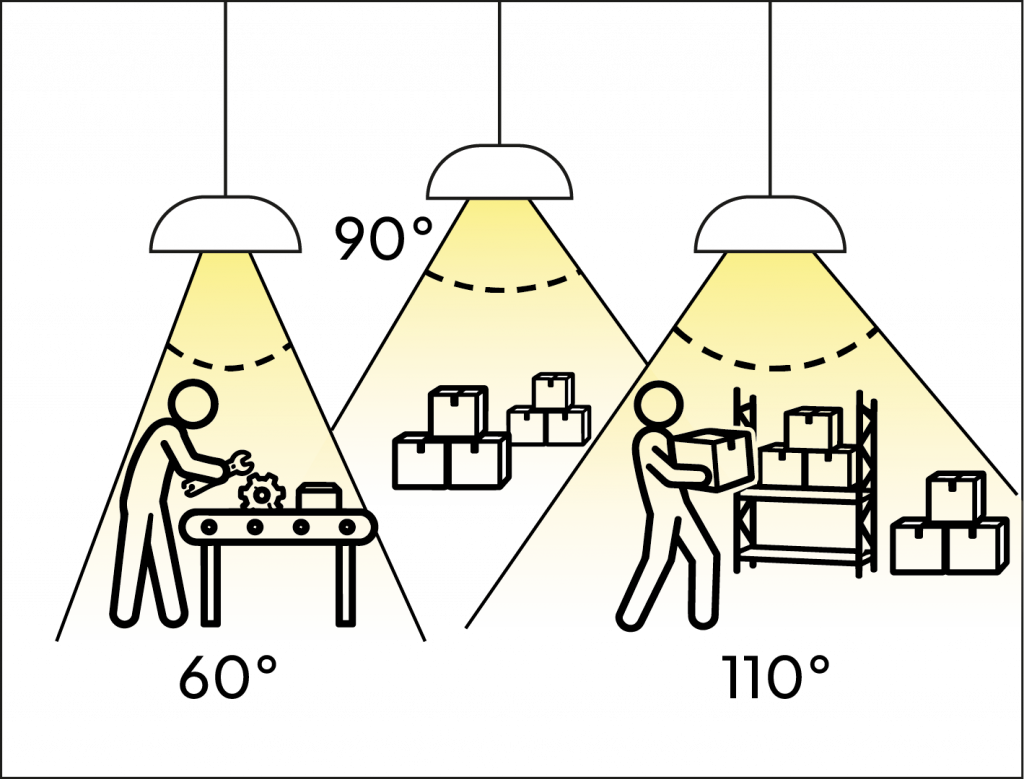

Three switches on the luminaire set power, color temperature and beam angle. The distributor stocks a single part number and the installer tunes each luminaire to the mounting height and use of the area.

CONFIGURATION COMBINATION 14 OF 27

Power SWITCH 1

150 W 200 W 240 W

Color temperature SWITCH 2

4000 K 5000 K 5700 K

Beam angle SWITCH 3

60° 90° 110°

90° beam. General-purpose distribution for production floors and distribution centers. Daylight white, 5000 K. For warehouses, production areas and distribution floors.

YOUR CONFIGURATION 200 W · 5000 K · 90°

POWER 200 W

LUMINOUS FLUX 39,400 lm 197 lm/W · LAB-MEASURED

COLOR TEMPERATURE 5000 K

BEAM ANGLE 90°

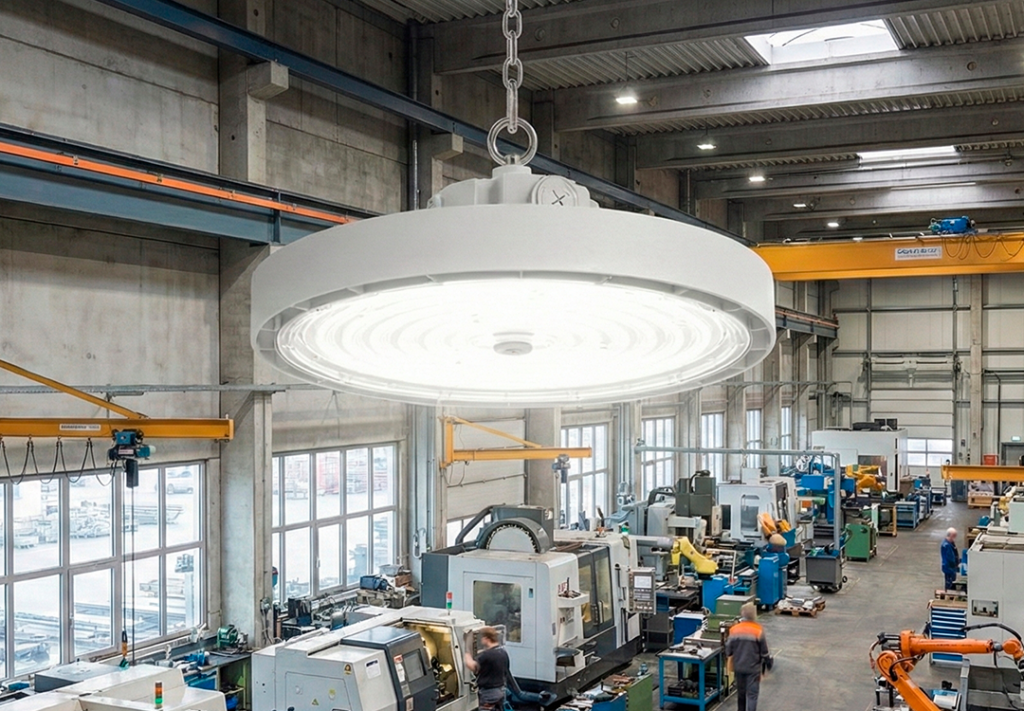

Real installation with Venus Gen 5; light intensity, tone and beam spread are shown for illustration only. Flux and efficacy for each combination come from lab-measured IES files; peak efficacy, 197 lm/W, is reached at 5000 K and 90° (up to 47,363 lm at 240 W). The photometric study sets the configuration for each zone.

02 — CONSTRUCTION

Built to work

full shifts.

Manufactured, tested and certified at our plant in Santa Catarina, N.L., Mexico. Die-cast aluminum body that dissipates heat from the LED and driver, polycarbonate optic, and the Jungo Connect One sensor integrated in the smart version.

Die-cast aluminum Pressure die-cast body with radial cooling fins. Operates from −22 to 131 °F (−30 to 55 °C) without degrading the LED or driver.

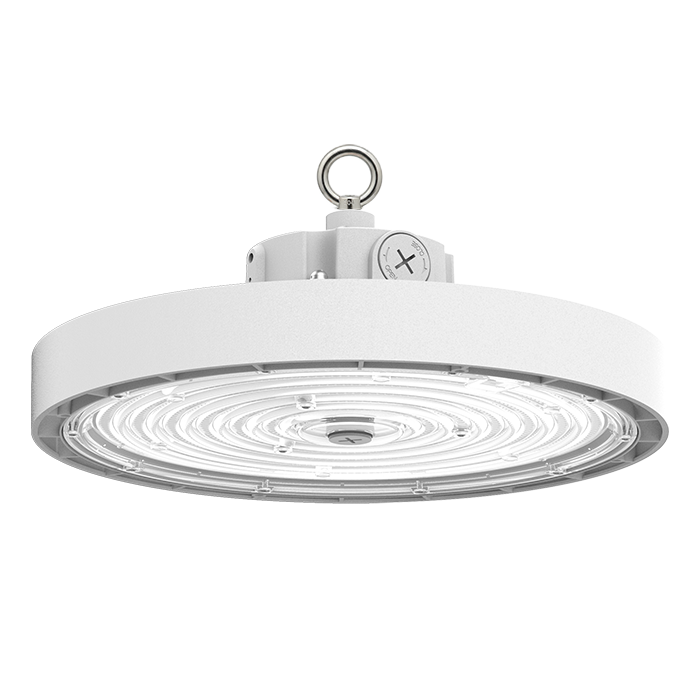

VENUS | GEN 5® UFO DESIGN · 6.0 LB · HANGING RING INCLUDED

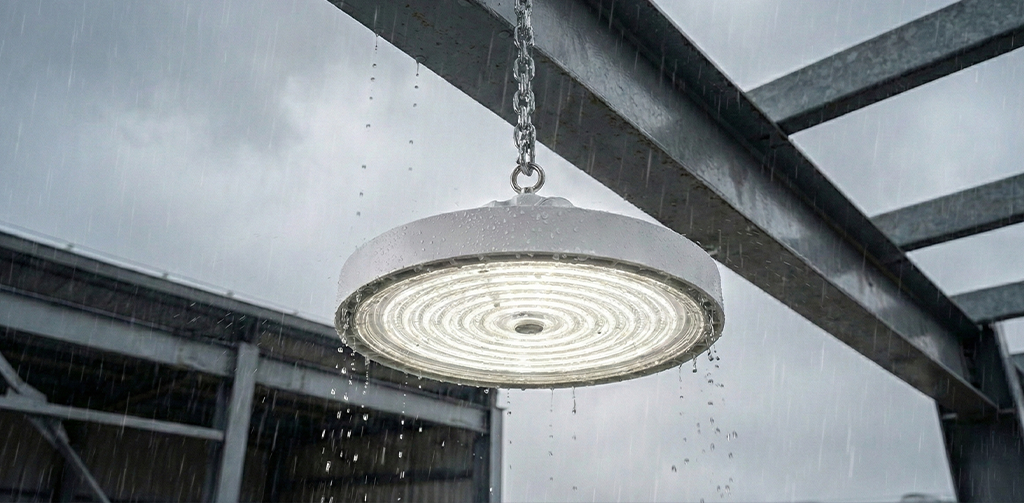

IP65 + IK08 Dust-tight and protected against water jets, with impact resistance for industrial environments.

Multi-voltage driver FLEX 100–277 V or FLEX-HV 200–480 V. The 3 configuration switches are under the threaded cap.

LUMEN MAINTENANCE 100,000 h CRI > 80, power factor > 0.90, THD < 20 % and 2.5 kV surge protection.

SMART VERSION · JUNGO CONNECT ONE Integrated Jungo Connect One sensor Sits at the center of the optic and combines Bluetooth Mesh® (SIG Mesh), a microwave sensor for presence and an illuminance sensor for daylight. Configured from the app or the web platform. See how Jungo Connect works ↓

03 — JUNGO CONNECT® · NETWORKED LIGHTING CONTROLS

Lights only

where needed.

The Jungo Connect One controller is built into the luminaire and combines Bluetooth Mesh® (SIG Mesh) connectivity with two sensors: microwave for presence and illuminance for daylight. No schedules to program: you set the rule once and the system works on its own, 24/7.

Presence Microwave sensor · dims when the area is vacant

Daylight Illuminance sensor · holds your target lux level

● AISLE 14 · BAY 2 ACCELERATED TIME

ACTIVE RULE Dim to 20 % after 5 min with no presence. Returns to 100 % when motion is detected.

MICROWAVE SENSOR No presence

NO PRESENCE 00:00

POWER · VENUS GEN 5

48 W 20 %

AREA VACANT · AUTOMATIC DIMMING −80 % CONSUMPTION

0 W CURRENT CONSUMPTION 240 W

SAMPLE WORKDAY · 6 AM TO 10 PM How your luminaire works on a real day

NO PRESENCE

1 min 5 min 10 min 15 min

LEVEL WHEN VACANT

Off 10 % 20 % 50 %

Daily chart (power vs. presence) — integrated with the interactive block

Presence detected

Luminaire power

AVERAGE POWER OVER THE DAY 165 W 69 % OF POWER · PER LUMINAIRE instead of 240 W for the whole shift. That is 31 % less energy, automatically and with no schedules to program. Calculate your savings →

Bluetooth Mesh® (SIG Mesh) Every luminaire extends the network. No control wiring.

Microwave sensor Detects presence and applies your rule: dim or turn off after X minutes.

Illuminance sensor Measures daylight and holds your target lux level.

App and web platform WiFi, Ethernet or 4G with the H20 Gateway. Rules by zone, 24/7.

Explore Jungo Connect

04 — TECHNICAL SPECIFICATIONS

Two models. Same performance.

They are easy to tell apart: the FLEX is white (100–277 V) and is the one installed in the vast majority of projects; the FLEX-HV is black (200–480 V) for high-voltage installations. Power, CCT, beam angle, efficacy and protection are identical.

FLEX 100–277 V · White · Best seller

FLEX-HV 200–480 V · Black · High voltage

SELECTABLE POWER 150 W / 200 W / 240 W

LUMINOUS EFFICACY Up to 200 lm/W

SELECTABLE CCT 4000 K / 5000 K / 5700 K

SELECTABLE OPTIC 60° / 90° / 110°

INPUT VOLTAGE FLEX: 100–277 V · FLEX-HV: 200–480 V

FINISH White (FLEX) · Black (FLEX-HV)

FREQUENCY 50 / 60 Hz

POWER FACTOR > 0.90

TOTAL HARMONIC DISTORTION (THD) < 20 %

CRI > 80

PROTECTION IP65 + IK08

SURGE PROTECTION 2.5 kV

OPERATING TEMPERATURE −22 to 131 °F

LUMEN MAINTENANCE 100,000 h

CONTROL Jungo Connect Ready (Jungo Connect One sensor)

MATERIALS Die-cast aluminum body · polycarbonate optic

CERTIFICATIONS UL 1598 (File E497790)

ORDERING CODE VN5-FLEX · VN5-FLEX-HV Power, CCT and beam angle are selected in the field. Your advisor completes the code according to color and project.

DIMENSIONS · TECHNICAL DRAWING

DIAMETER Ø 320 mm (12.6 in)

HEIGHT WITHOUT RING 117 mm (4.6 in)

WEIGHT 6.0 lb

FINISH White / Black

05 — MOUNTING & ACCESSORIES

Ready to hang.

The Venus Gen 5 ships with a steel ring so it can be suspended with chain, cable or hook. The swivel bracket and emergency battery are quoted separately.

Suspension ring INCLUDED

Stainless steel ring threaded into the luminaire. Suspend it with chain, steel cable or hook, depending on the building structure. STANDARD ON FLEX AND FLEX-HV

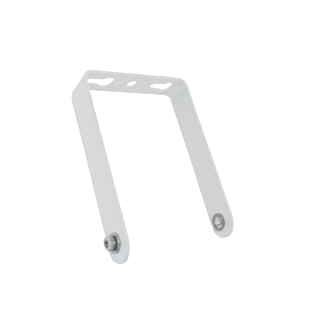

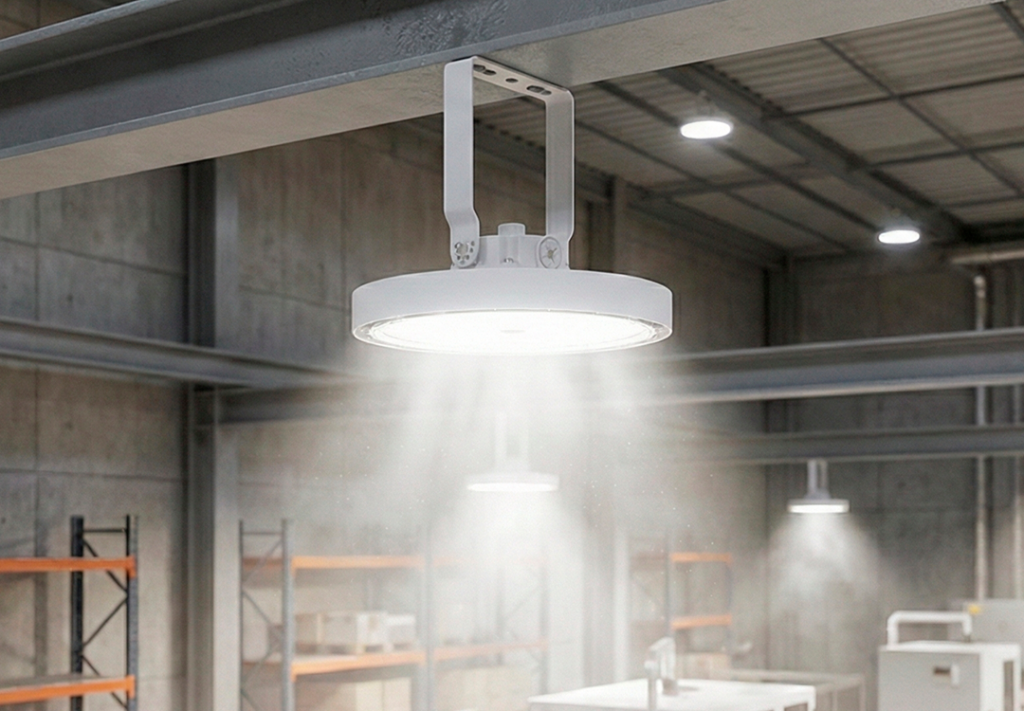

Swivel bracket For wall or column mounting and aiming the beam. ACCESSORY · VN5BR · MADE TO ORDER

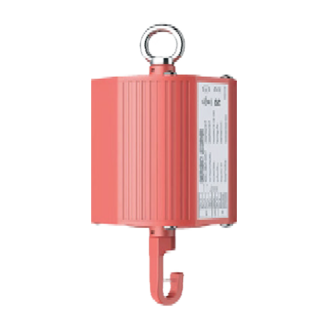

Emergency battery Keeps egress routes lit during a power outage. ACCESSORY · EMUFO-25170-TT · 25 W ACCESSORY · EMUFO-40170-TT · 40 W

06 — SPECIFIERS

Everything to specify it.

Certified and verifiable.

Download the spec sheet and IES files for your DIALux or AGi32 calculation. UL certification can be verified in the public UL Product iQ directory.

PDF

Spec sheet

PDF · ENGLISH (US)

↓

PDF

Installation guide

PDF · ENGLISH (US)

↓

IES

IES files

ZIP · 27 VN5-FLEX FILES · LM-63

↓

DLX

Photometric study

FREE · FOR YOUR PROJECT

→

UL 1598

UL SOLUTIONS · FILE E497790

UL listed luminaires for general use. Verifiable in the public UL Product iQ directory.

Verify on UL Product iQ →

IP65
IK08

Dust-tightness and impact

IEC 60529 · IEC 62262 · RoHS

Dust, water jets and impact in industrial environments.

GRUPO LALA PANEL 2 Venus Gen5 – Jungo Lighting

07 — CASE STUDY

Grupo LALA upgrades its industrial lighting with Venus Gen 5

Read case study →

08 — FREQUENTLY ASKED QUESTIONS

About the Venus Gen 5

Have another question? An advisor will answer you on WhatsApp.

Is the Venus Gen 5 suitable for mid-height ceilings or only high bay?

Both. Its triple switch (150/200/240 W power, 60°/90°/110° beam angle and 4000/5000/5700 K CCT) lets you adapt the same luminaire to mid-height ceilings and high-bay facilities without changing models.

What is the difference between the FLEX and FLEX-HV versions?

Only input voltage and color: the FLEX (white) runs on 100 to 277 V and the FLEX-HV (black) on 200 to 480 V. Power, CCT, beam angle, efficacy and IP65 + IK08 protection are the same.

Can I add Jungo Connect® control after installing it?

Yes. The Venus Gen 5 is Jungo Connect Ready: the Jungo Connect One sensor is integrated into the luminaire for presence and daylight, and is managed from the app or web platform with the H20 Gateway.

Is it certified?

Yes. It is UL 1598 listed (UL Solutions, File E497790), verifiable in the public UL Product iQ directory.

Where do I get the IES files for my calculation?

In the specifiers section of this page you can download the ZIP with the IES files and the spec sheet. If you prefer, our team will run the photometric study at no cost.
