HOME / OUTDOOR / AREA & ROADWAY / AREA LIGHT GEN 2

AREA & ROADWAY · OUTDOOR · WET LOCATIONS

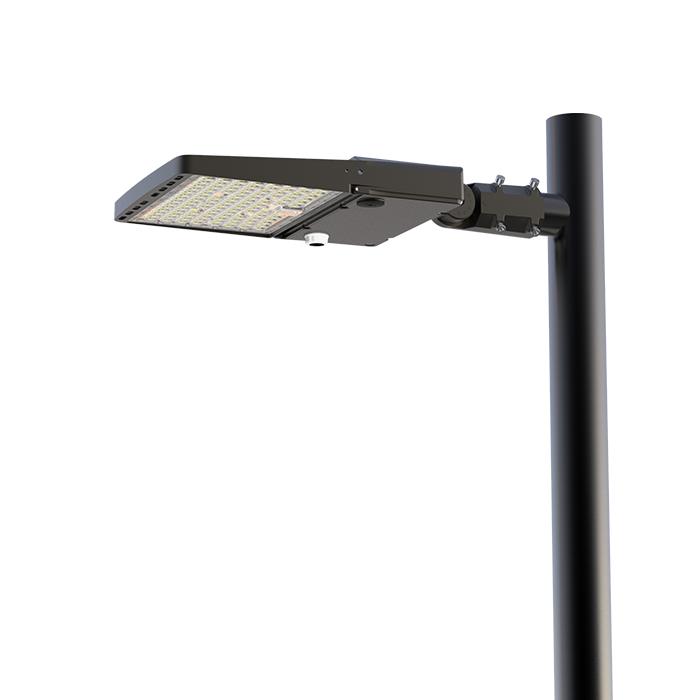

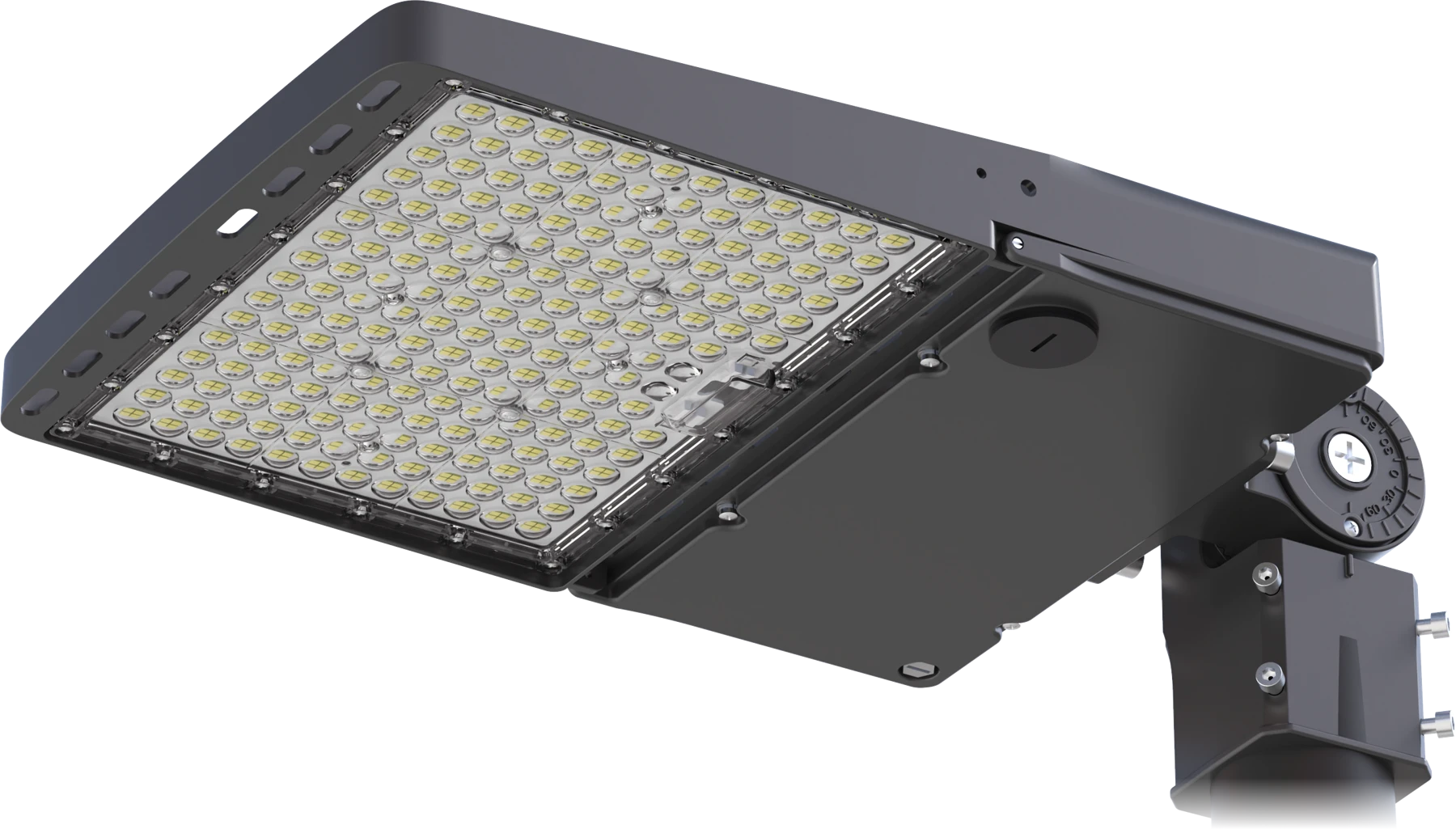

Area Light Gen 2

27 luminaires in one.

LED area and roadway luminaire for streets, parking lots, highways and urban areas. Three switches set wattage, CCT and optic in the field, with no fixture swap. Up to 35,990 lm and up to 160 lm/W measured in the lab, with built-in photocell. Manufactured in Monterrey, Mexico · TAA compliant · shipped duty-free under USMCA.

Up to 160 lm/W IP66 + IK09

Jungo Connect Ready

Get a quote Spec sheet (PDF) View installation guide

ALG2 · SO · MO UL LISTED

POWER

CCT

OPTIC

PHOTOCELL

OUTDOOR

Configure it here ↓

6 WATTAGES IN 2 SERIES

SERIES SO · MO

WATTAGE 60 to 240 W

OPTIC TYPE III · IV · V

Jungo Connect Pro App and web · Networked lighting controls

EFFICACY Up to 160 lm/W Lab-measured (Everfine)

VOLTAGE 100–277 V~ 50 / 60 Hz · 0–10 V dimming

PROTECTION IP66 + IK09 Dust, rain and impact

OPERATION −40 to 122 °F Outdoor · wet locations

WEIGHT 4.96 to 7.08 lb Aluminum alloy body

01 — CONFIGURATION

2 models, 6 wattages

and 3 optics.

Choose the model by lumen output; wattage, CCT and optic are set in the field with three switches under the cover.

CONFIGURATION COMBINATION 1 OF 54

Model SERIES

SO MO

Wattage WATTS

60 W 80 W 100 W

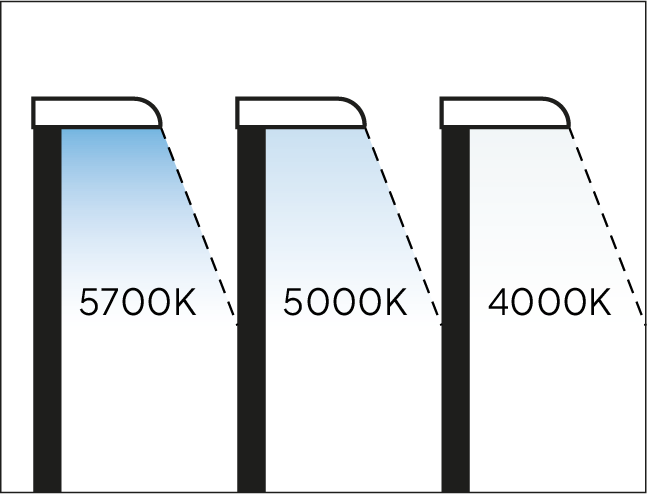

Color temperature CCT

4000 K 5000 K 5700 K

Optic DISTRIBUTION

Type III Type IV Type V

SO series: 60, 80 and 100 W. Compact (19.6 × 11.3 × 3.1 in, 4.96 lb) for streets, parking lots and plazas. 4000 K neutral white: the most common choice for roadways and parking lots.

YOUR CONFIGURATION SO · 60 W · 4000 K · Type III

WATTAGE 60 W

LUMINOUS FLUX 13,910 lm 139.2 lm/W · ESTIMATED EFFICACY

COLOR TEMPERATURE 4000 K

OPTIC Type III

Plan view with the luminaire at 26 ft (8 m) mounting height: the light pattern and isolux lines (0.5, 0.9 and 1.9 fc) are calculated with the Area Light Gen 2 IES files, measured in the lab (Everfine) at 5000 K, for each model, wattage and optic; light color is illustrative. At 5000 K flux is measured; at 4000 and 5700 K it is estimated with color temperature factors.

02 — CONSTRUCTION

Built for the weather,

ready for the pole.

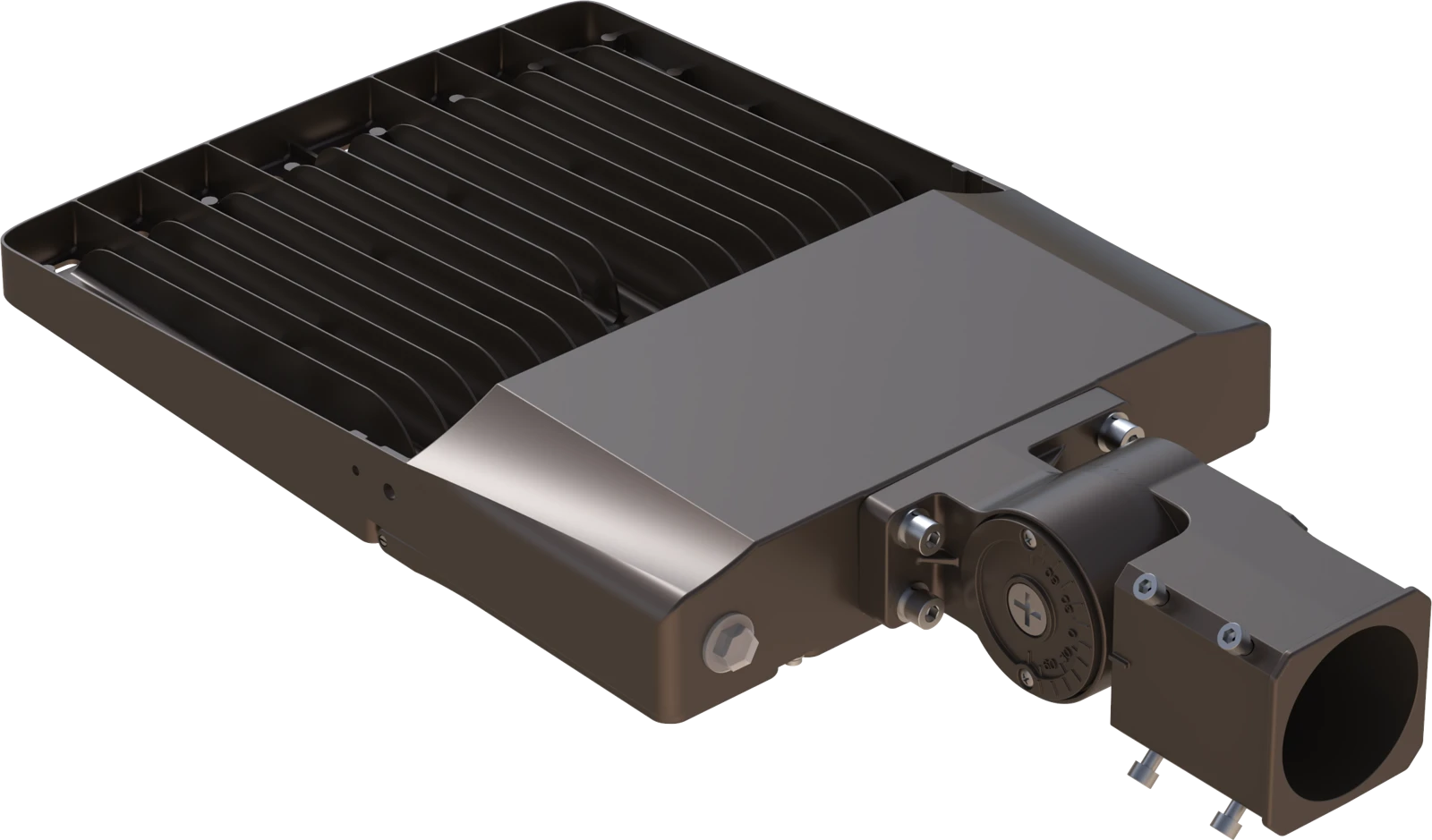

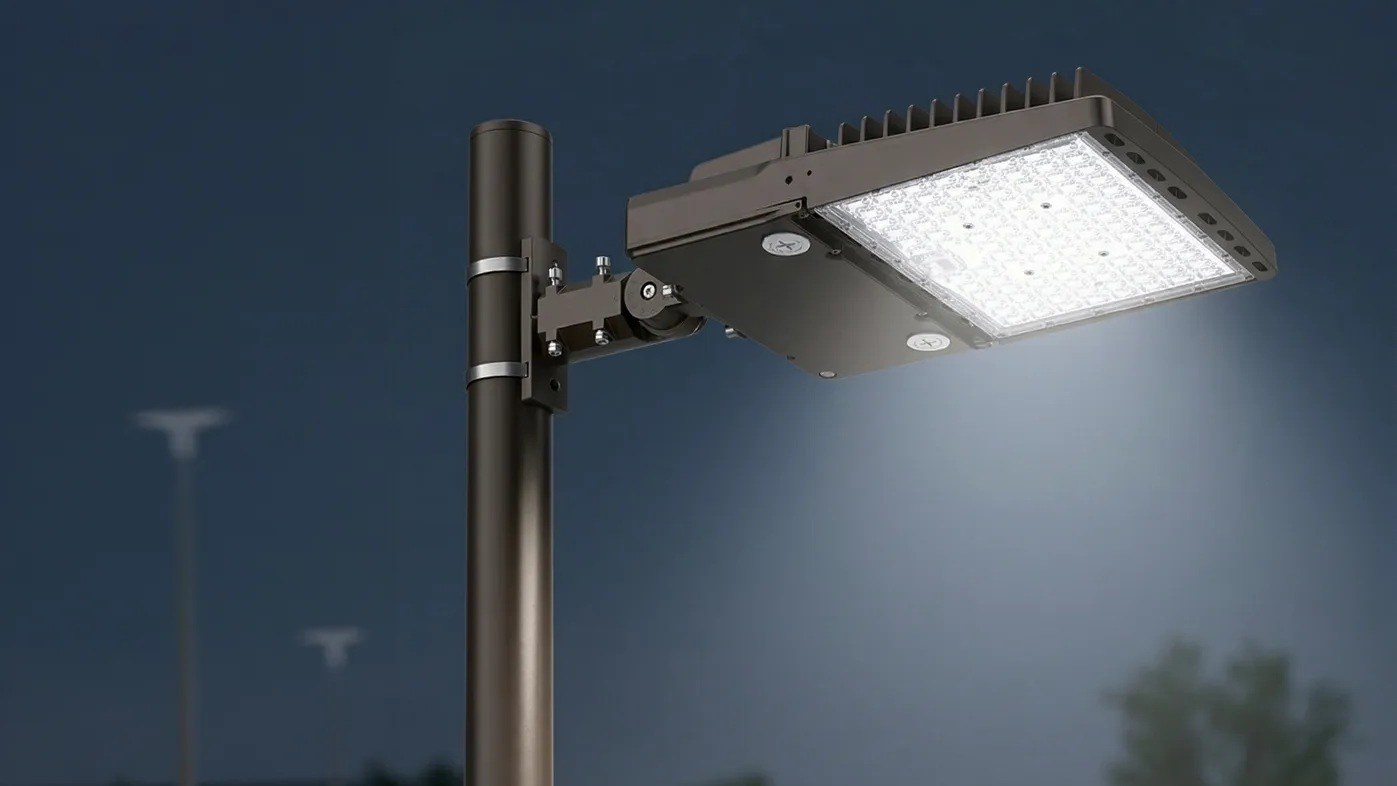

Aluminum alloy body with finned heat sink, IP66 sealed and IK09 impact rated. Operates from −40 to 122 °F.

IP66 + IK09 Body sealed against dust and rain, IK09 impact rated. Built for outdoor use.

AREA LIGHT | GEN 2 SO · MO · 4.96 TO 7.08 LB

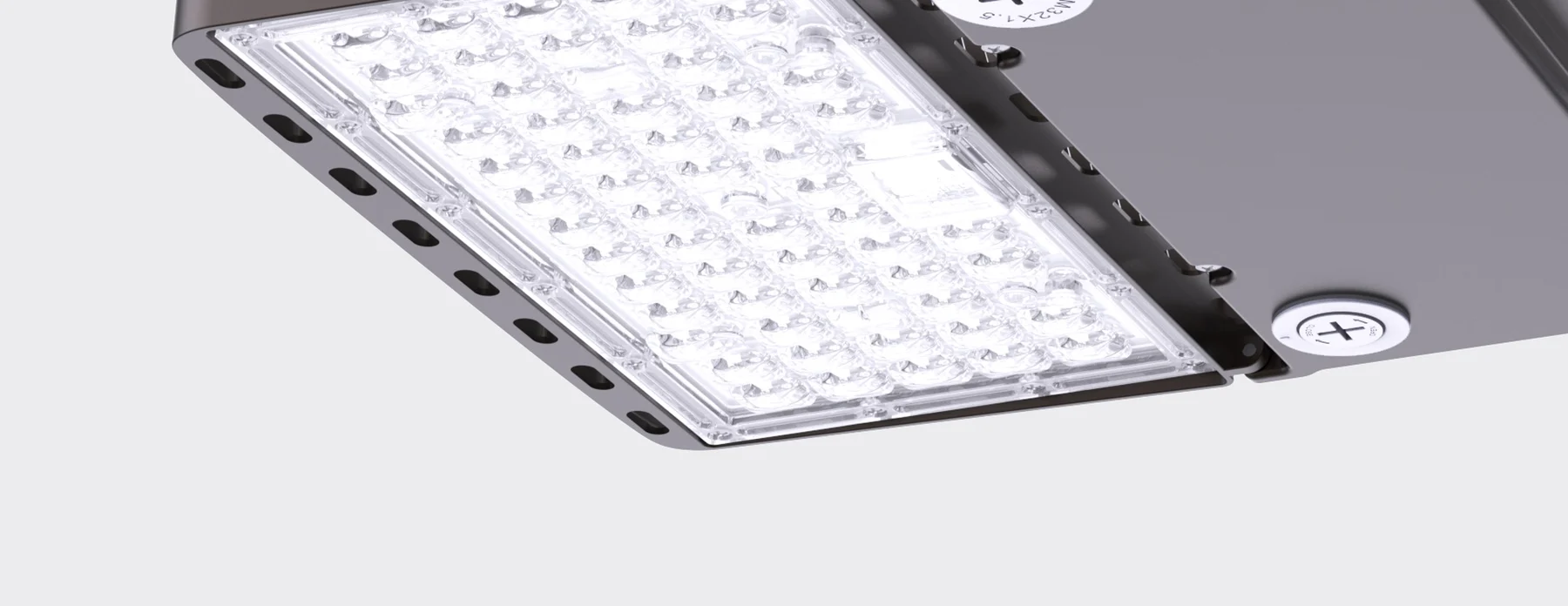

High-efficacy LED Up to 160 lm/W and up to 35,990 lm measured in the lab, with CRI > 80, 0.9 power factor and THD < 20 %.

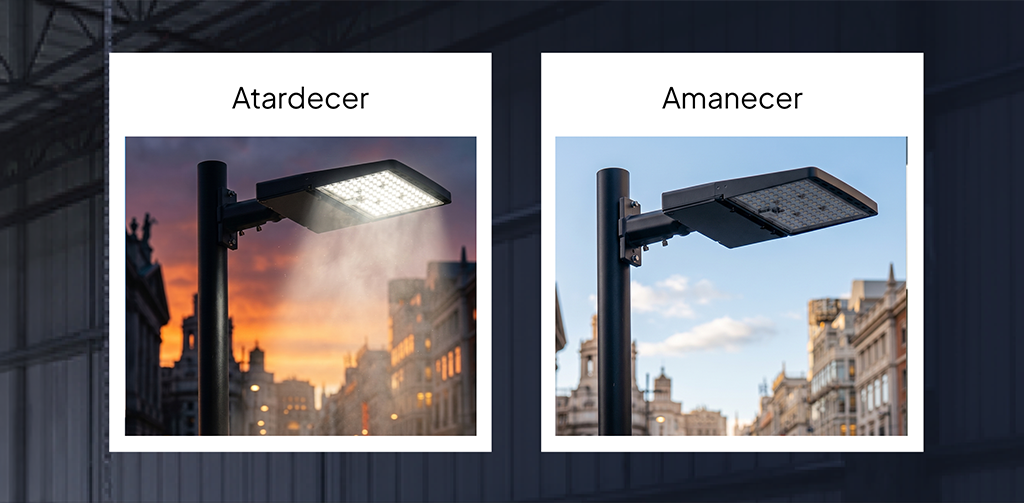

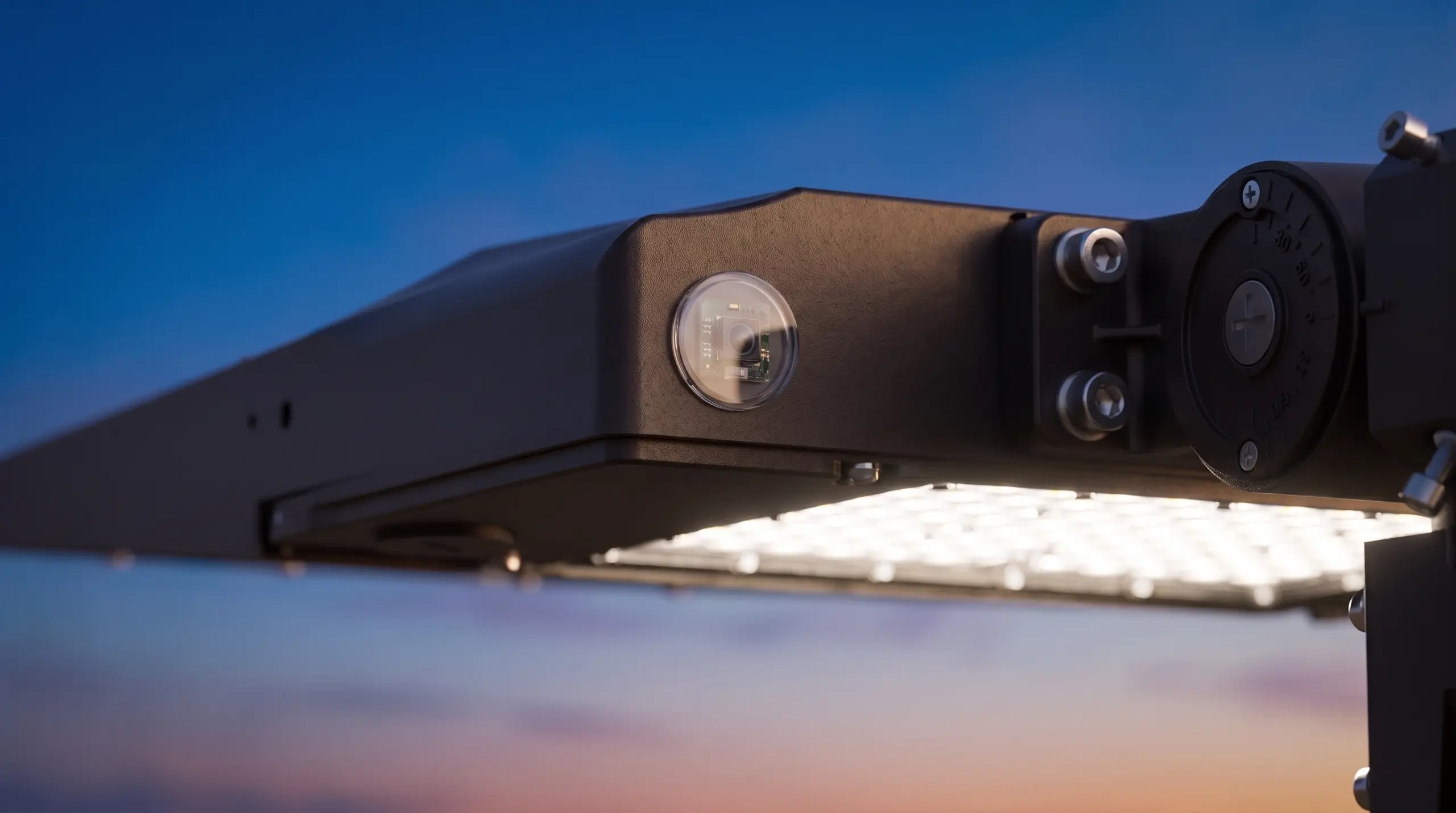

Built-in mini photocell Dusk-to-dawn on and off. Enable or disable it with the switches under the cover.

WARRANTY 5 years 10-year extended warranty available. UL Listed (File E497790).

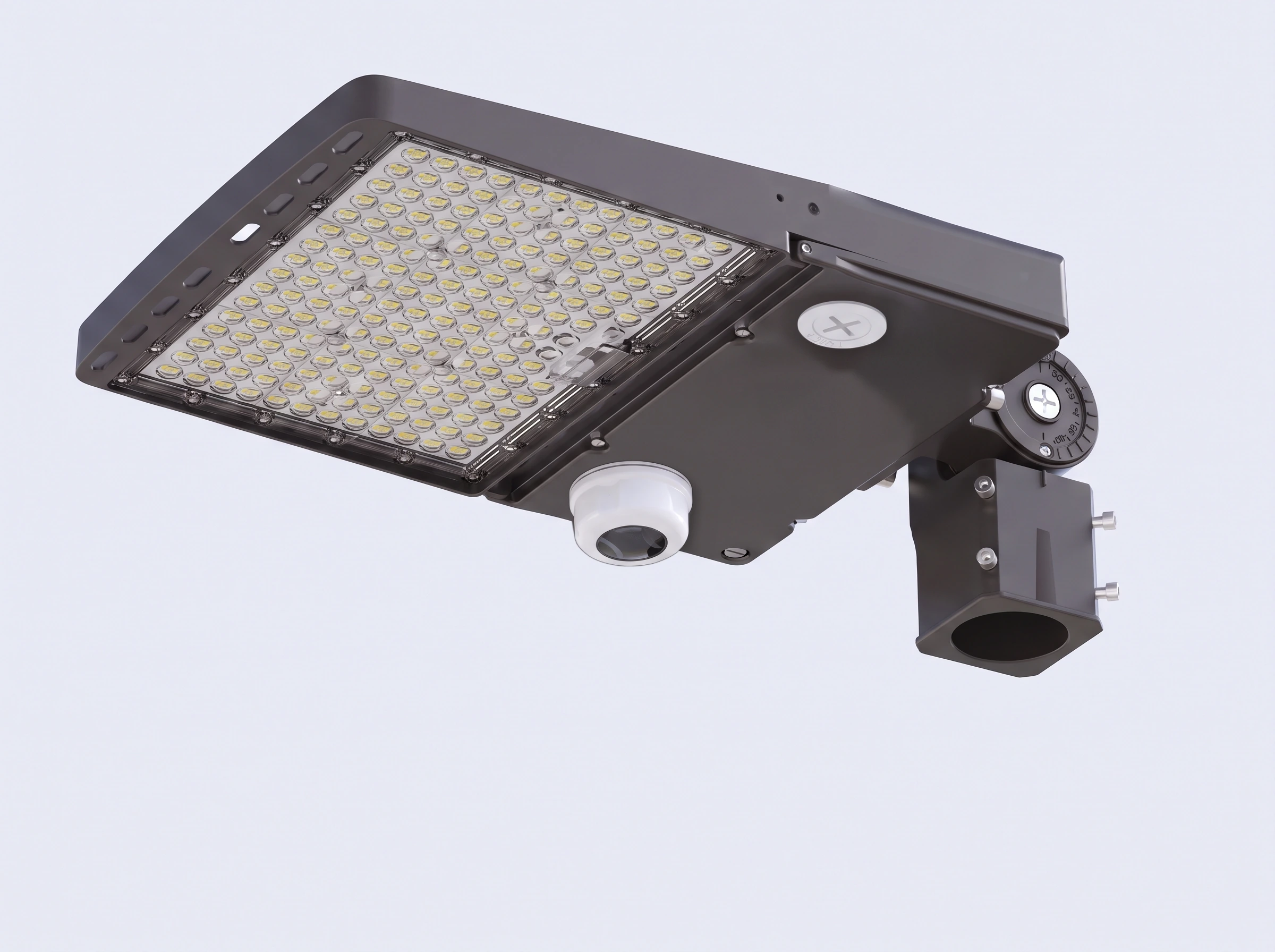

JUNGO CONNECT® Factory-installed 3-pin base for Jungo Connect One This luminaire ships with a factory-installed 3-pin base: add Jungo Connect One (sold separately) to automate by occupancy and daylight, and control each zone from the app or the web. See how Jungo Connect works ↓

03 — APPLICATIONS

From the street to the truck yard.

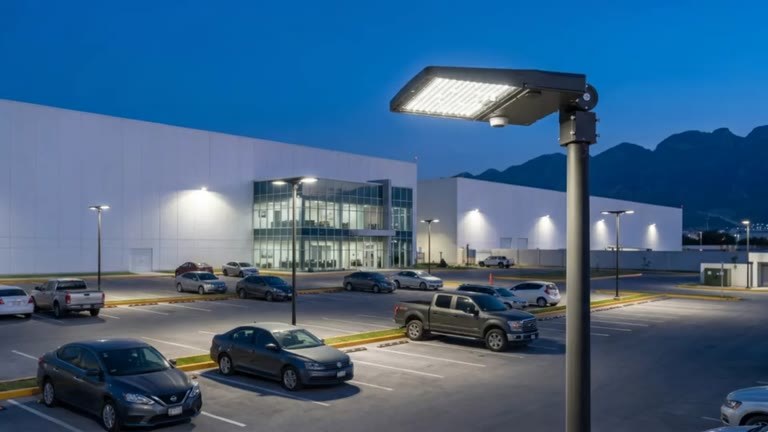

Parking lots and roadways

04 — JUNGO CONNECT® · NETWORKED LIGHTING CONTROLS

Light only

where it's needed.

With Jungo Connect One, the Area Light Gen 2 joins the network: occupancy, schedule and light-level rules from the app or the web.

Occupancy Motion sensor · dims when the area is vacant

Daylight Illuminance sensor · holds your target lux level

● PARKING LOT · ZONE 3 ACCELERATED TIME

ACTIVE RULE Dim to 20 % after 5 min with no occupancy. Back to 100 % when motion is detected.

MICROWAVE SENSOR No occupancy

NO OCCUPANCY 00:00

POWER · AREA LIGHT GEN 2

48 W 20 %

VACANT AREA · AUTOMATIC DIMMING −80 % ENERGY USE

0 W POWER RIGHT NOW 240 W

SAMPLE DAY · 6:00 AM TO 10:00 PM How your luminaire works on a real day

NO OCCUPANCY

1 min 5 min 10 min 15 min

LEVEL WHEN VACANT

Off 10 % 20 % 50 %

Daily chart (power vs. occupancy) — part of the interactive block

Occupancy detected

Luminaire power

AVERAGE POWER FOR THE DAY 165 W 69 % OF FULL POWER · PER LUMINAIRE instead of 240 W all shift long. That's 31 % less energy, automatically, with no schedules to program. Calculate your savings →

Bluetooth Mesh® (SIG Mesh) Each luminaire extends the network. No control wiring.

Motion sensor Detects occupancy and applies your rule: dim or turn off after X minutes.

Illuminance sensor Measures daylight and holds your target lux level.

App and web platform WiFi, Ethernet or 4G with Gateway H20. Rules by zone, 24/7.

Discover Jungo Connect

05 — TECHNICAL SPECIFICATIONS

Two series. One platform.

Both series share protection, optics and color temperatures; wattage, lumen output, measured efficacy, size and weight differ.

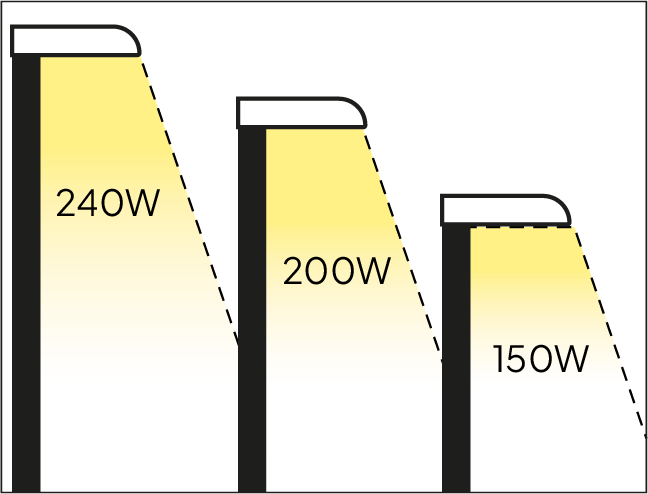

SELECTABLE WATTAGE SO: 60 / 80 / 100 W · MO: 150 / 200 / 240 W

LUMINOUS EFFICACY Up to 160 lm/W · 131 to 160 lm/W by series, optic and color temperature

LUMINOUS FLUX SO 60 / 80 / 100 W: 8,120–9,600 / 10,820–12,810 / 13,530–16,010 lm · MO 150 / 200 / 240 W: 19,760–22,490 / 26,350–29,990 / 31,620–35,990 lm (by optic and color temperature)

COLOR TEMPERATURE 4000 K (neutral) / 5000 K (daylight) / 5700 K (cool white)

INPUT VOLTAGE 100–277 V~ · 50 / 60 Hz

OPTIC (LENS) Polycarbonate

DIMMING 0–10 V

POWER FACTOR 0.9

TOTAL HARMONIC DISTORTION (THD) < 20 %

CRI > 80

PROTECTION IP66 + IK09

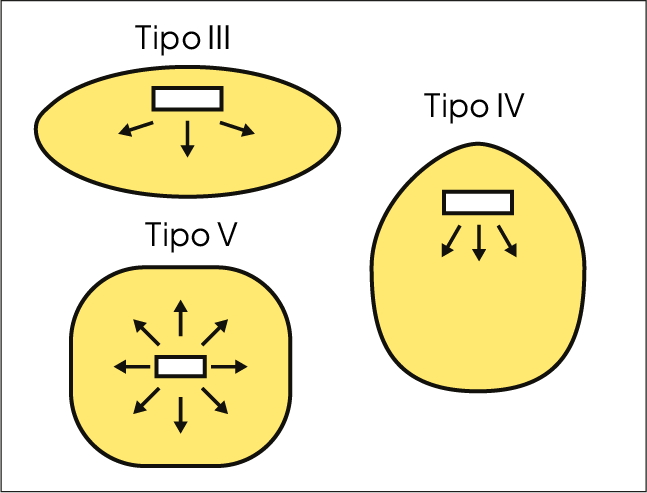

OPTICS Type III (streets and roadways) · Type IV (perimeters and facades) · Type V (plazas and yards)

OPERATING TEMPERATURE −40 to 122 °F (−40 to 50 °C)

HOUSING Aluminum alloy with finned heat sink

MOUNTING Slip-fitter for 2.48 in (63 mm) tenon included · optional: Universal, Arm, Trunnion and Yoke

CONTROL Built-in mini photocell · factory-installed 3-pin base for Jungo Connect One · optional house side shield

CERTIFICATIONS UL Listed (File E497790) · BUG U0 (IES TM-15-11) · 5-year warranty (10-year extended)

BUILD YOUR ORDER CODE ALG2-SO-1-I Series, model, mounting and control (N without Jungo Connect, I with Jungo Connect One). Wattage, CCT and optic are set in the field.

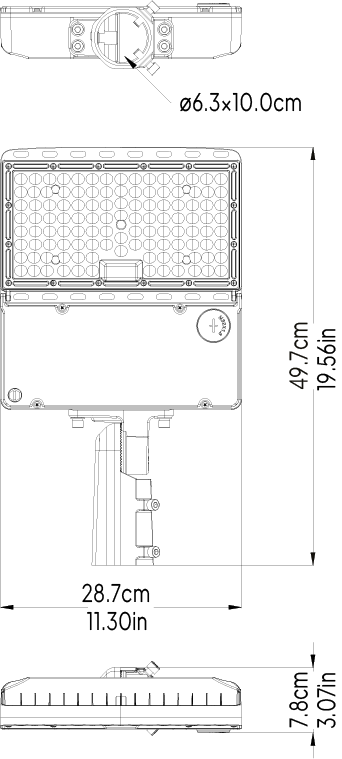

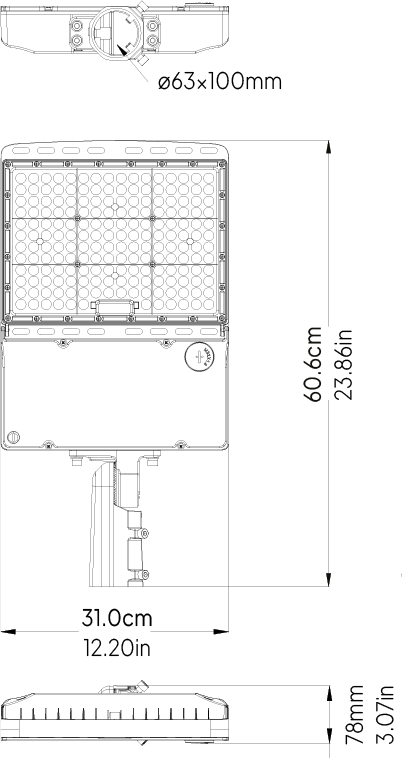

DIMENSIONS · SO / MO

LENGTH 19.6 / 23.9 in

WIDTH 11.3 / 12.2 in

HEIGHT 3.1 in

WEIGHT 4.96 / 7.08 lb

06 — MOUNTING AND ACCESSORIES

On a pole, arm or wall.

Ships with a slip-fitter for a 2.48 in (63 mm) pole or tenon. Choose an optional mount for your project.

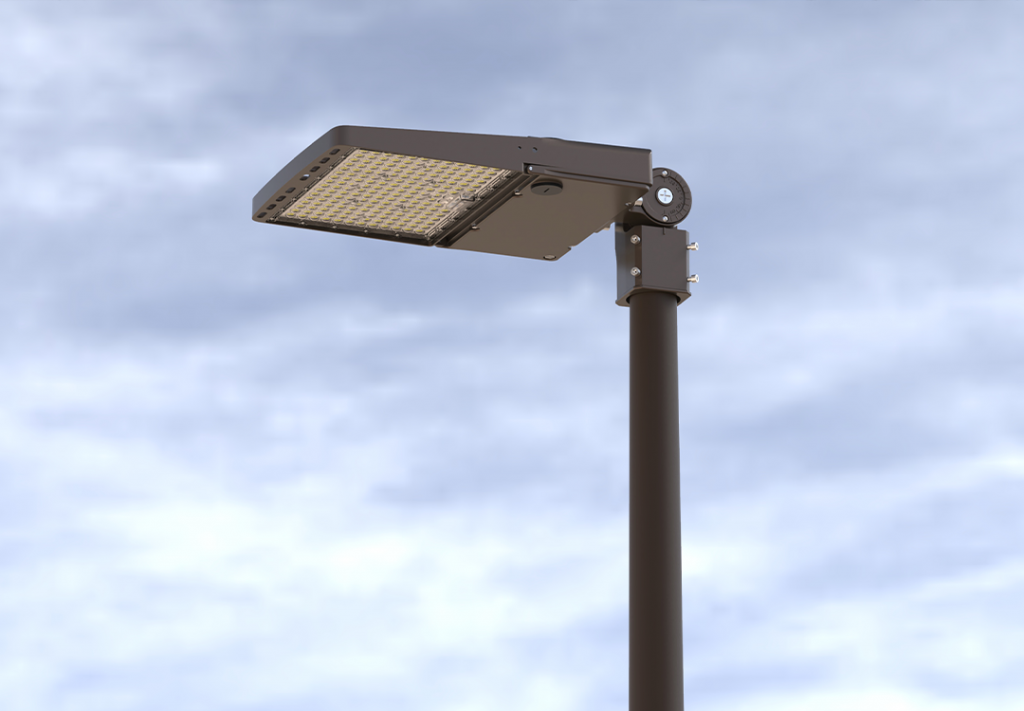

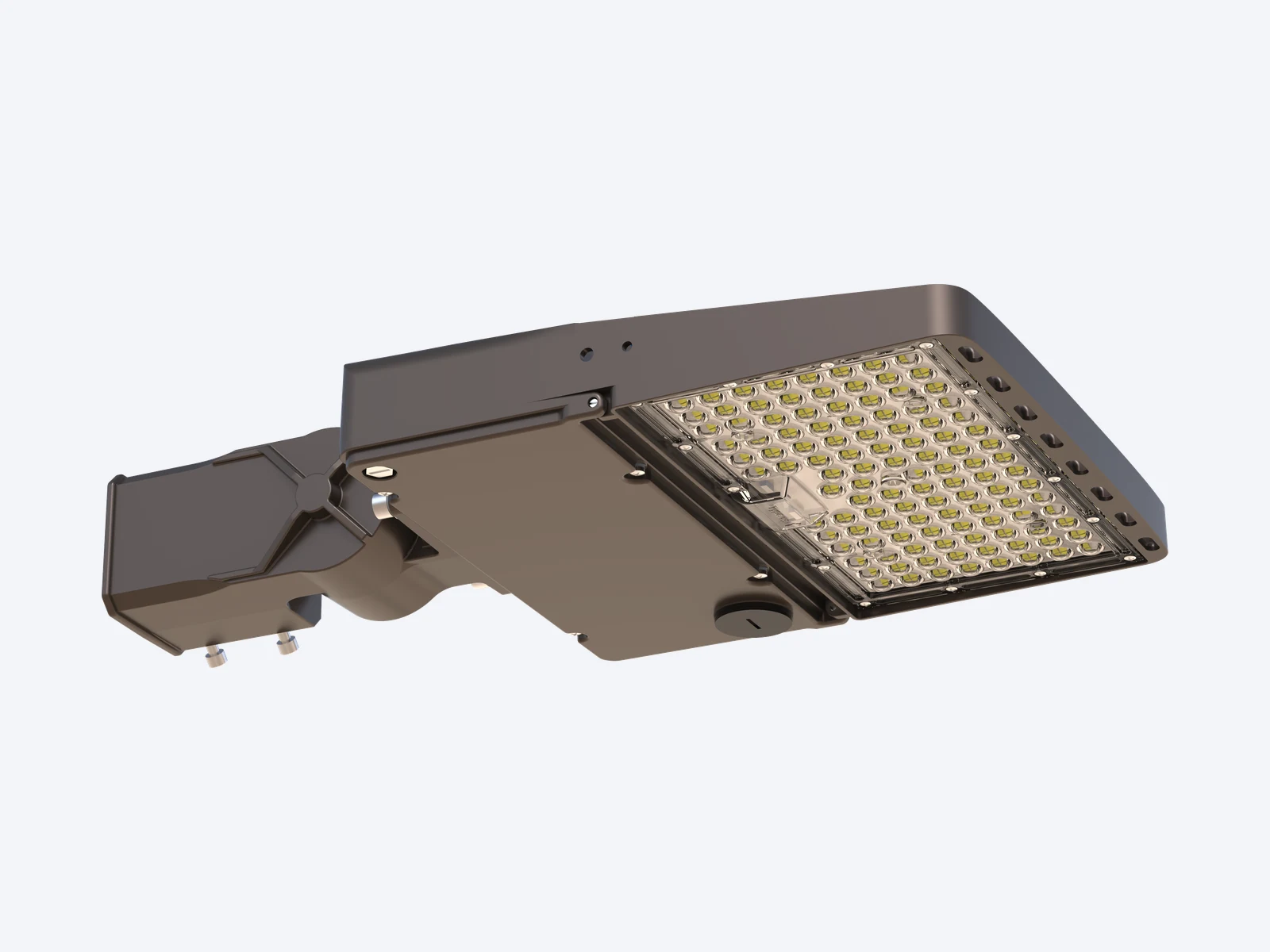

Slip-fitter INCLUDED

For a 2.48 in (63 mm) pole or tenon. Ships with the luminaire. POLE · Ø 2.48 IN

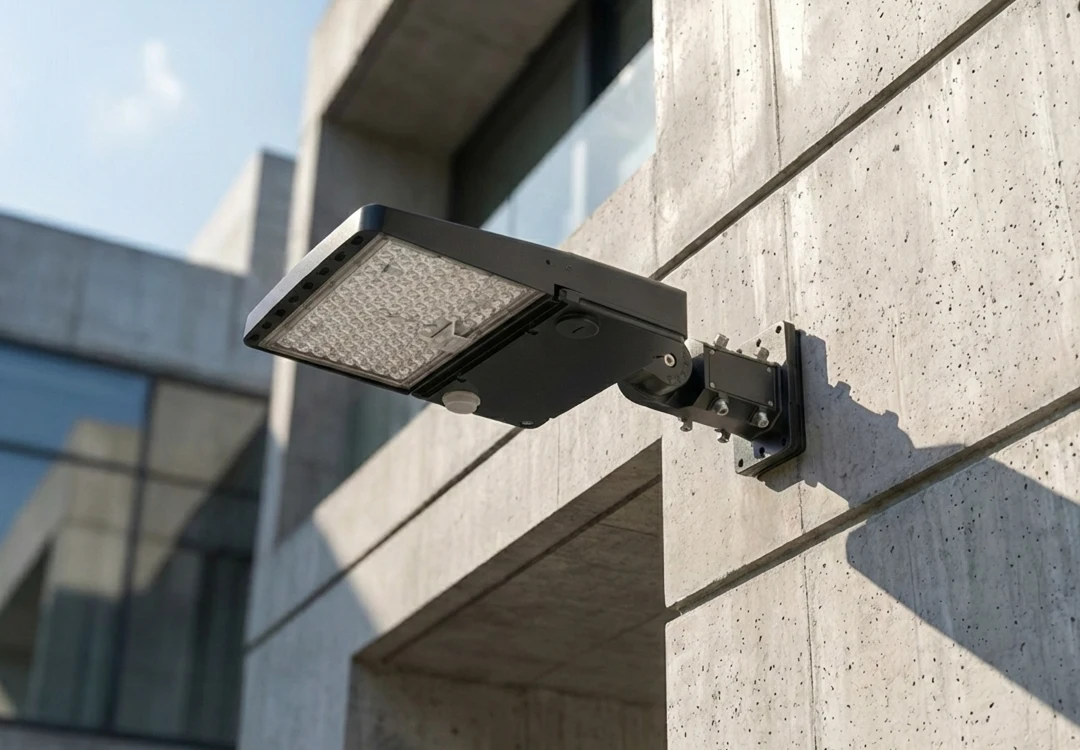

Universal mount Optional mount for pole or wall installation, as the project requires. OPTIONAL

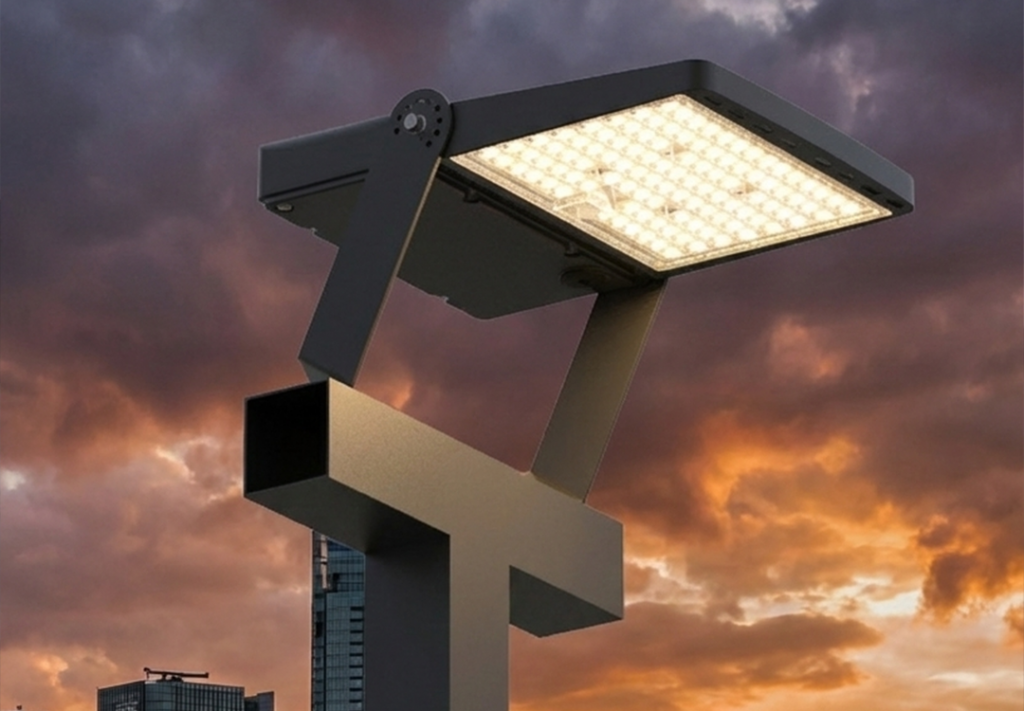

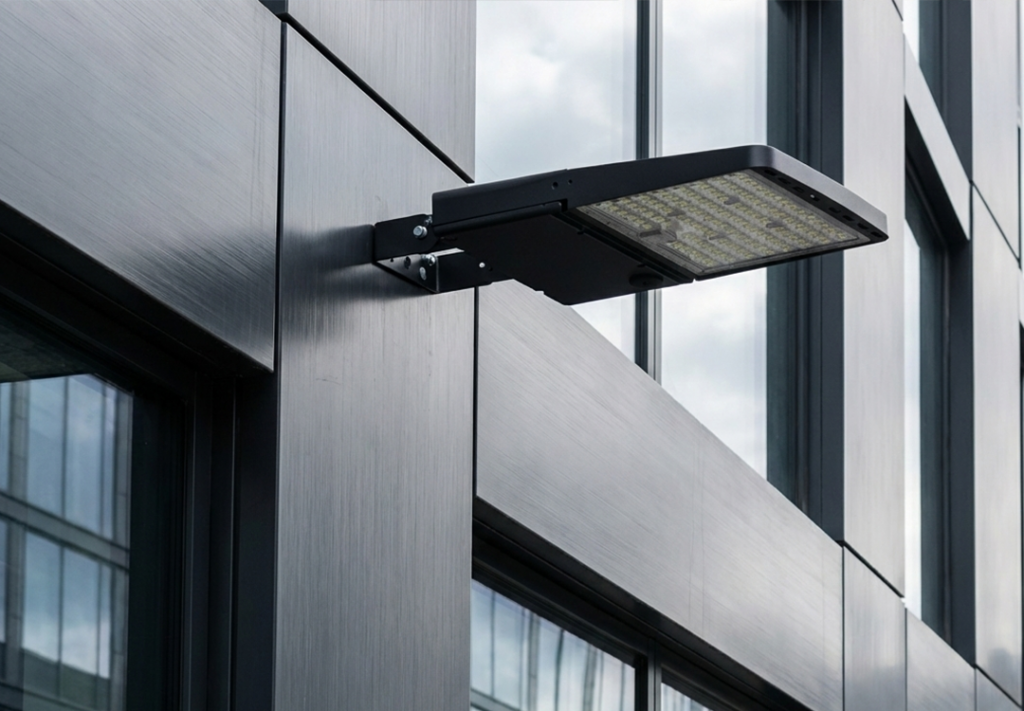

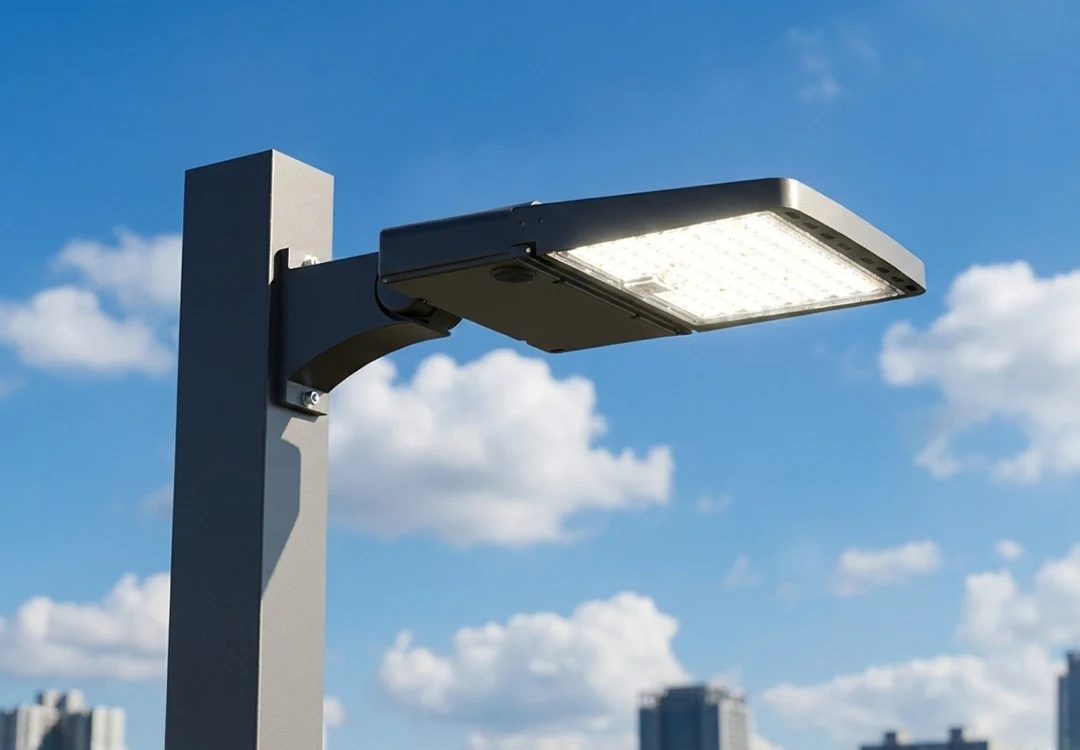

Arm · Trunnion · Yoke Arm (code 3), Trunnion (4) and Yoke (5) for walls, facades and structures. OPTIONAL WALL · FACADE · STRUCTURE

07 — SPECIFIERS

Everything you need to specify it.

Clear, verifiable data.

Download the spec sheet with specifications, dimensions and ordering guide. Need a lighting layout? Our team runs the photometric study at no cost.

PDF

Spec sheet

PDF · ENGLISH (US) · 2026

↓

PDF

Installation guide

PDF · ENGLISH (US) · 2026

↓

IES

IES files

LM-63 · 81 FILES · BUG U0 · HOUSE SIDE SHIELD OPTION

↓

DLX

Photometric study

NO COST · FOR YOUR PROJECT

→

UL Listed · File E497790

Safety certified for the US market.

IP66 IK09

Sealing and impact

IEC 60529 · IEC 62262

Dust, rain and impacts outdoors, from −40 to 122 °F.

08 — FAQ

About the Area Light Gen 2

Have another question? An advisor answers on WhatsApp.

What applications is the Area Light Gen 2 for?

Streets and roadways, parking lots, perimeters, facades, plazas and truck yards. Choose the Type III, IV or V optic for the area.

What wattages and color temperatures are available?

The SO series comes in 60, 80 and 100 W, and the MO series in 150, 200 and 240 W. At 5000 K, lab-measured efficacy ranges from 146 to 160 lm/W by series and optic: the maximum, 160 lm/W, is the SO series with Type IV optic, and the maximum flux, 35,990 lm, is the MO series at 240 W with Type IV optic. At 4000 and 5700 K flux is about 10 % lower. Wattage, CCT and optic are set in the field with switches under the cover.

Which mounts are included?

A slip-fitter for a 2.48 in (63 mm) pole or tenon is included. Universal, Arm, Trunnion and Yoke mounts are optional.

Can I add Jungo Connect® control?

Yes. It's compatible with Jungo Connect One (sold separately) to automate by occupancy and daylight, and to control it from the app or the web.

What is its BUG rating and certification?

UL Listed (File E497790), IP66 against dust and rain and IK09 against impact. BUG per IES TM-15-11: SO series B3-U0-G3; MO series B4-U0-G4/G5, B2–B3 with the house side shield. Operates from −40 to 122 °F, with a 5-year warranty (10-year extended).
