HOME / INDOOR / HIGH BAY / CLEAN PLUS
HIGH BAY · INDOOR · FOOD PROCESSING

Clean Plus.

Food-grade and washdown-rated. 100 to 200 W.

LED high bay for food processing plants: a crevice-free aluminum housing, IP66 + IP69K and IK08, NSF/ANSI 2 certified for the splash zone. It is pressure-washed along with the rest of the plant and does not trap dust or water.

UL E497790 Mark White – Jungo Lighting
Up to 150 lm/W IP69K
Sello NSF/ANSI 2 zona de salpicadura - Jungo Lighting NSF/ANSI 2
Get a quote Spec sheet (PDF) Installation guide (PDF)
SO · MO · HO · 100 TO 200 W UL · E497790 Clean Plus, high bay LED grado alimenticio NSF/ANSI 2 e IP69K – Jungo Lighting - Jungo Lighting
0-10V Dimmable
WET LOCATION
3 CCT Switch 3000K / 4000K / 5000K
0–10 V
Built-in Mini Photocell · Dusk to Dawn
NSF
Wet Location Rated
IP69K
Configure it here ↓
18 CONFIGURATIONS
IN ONE SERIES
MODEL SO 100 W · MO 150 W · HO 200 W
COLOR TEMPERATURE 3000 K · 4000 K · 5000 K
DRIVER STANDARD · 0–10 V DIMMABLE
Sello NSF/ANSI 2 zona de salpicadura - Jungo Lighting
NSF/ANSI 2 Splash zone · Food equipment
EFFICACY Up to 150 lm/W Up to 30,000 lm output
INPUT VOLTAGE 100–277 VAC 50/60 Hz · 0–10 V dimmable version
PROTECTION IP66 · IP69K IK08 · 4 kV surge protection
OPERATING TEMP −40 to 113 °F L70 ≥ 72,000 h (TM-21)
WEIGHT 12.3 to 15.0 lb Ø 17.09 in · white aluminum
01 — CONFIGURATION

Pick your Clean Plus.

Model, CCT and driver at order.

All three models share the same housing, 115° optic and 17.09 in diameter: SO 100 W, MO 150 W and HO 200 W. Color temperature and driver (standard or 0–10 V dimmable) are chosen when you order: 18 configurations in one series.

CONFIGURATION CONFIGURATION 10 OF 18
Driver CHOSEN AT ORDER
Standard 0–10 V — —
Color temperature CHOSEN AT ORDER
3000 K 4000 K 5000 K
Fotocelda SWITCH 3 EN 1 · EN OBRA
ON OFF
Model CHOSEN AT ORDER
SO · 100 W MO · 150 W HO · 200 W — —
Neutral white, 4000 K. The most common choice in food plants: true product color and comfortable light for long shifts. 0–10 V dimmable. Driver D dims from the plant’s 0–10 V controls.
YOUR CONFIGURATION MO · 150 W · 4000 K · 0–10 V
WATTAGE 150 W
LUMEN OUTPUT 22,500 lm 150 lm/W · PER SPEC SHEET
COLOR TEMPERATURE 4000 K
DRIVER 0–10 V

Lumen output and efficacy for each configuration per the 2026 spec sheet: up to 150 lm/W and 30,000 lm, with a 115° polycarbonate optic. The scene is illustrative; we run a free photometric layout for your project.

02 — CONSTRUCTION

Washable from end to end,

not a single crevice.

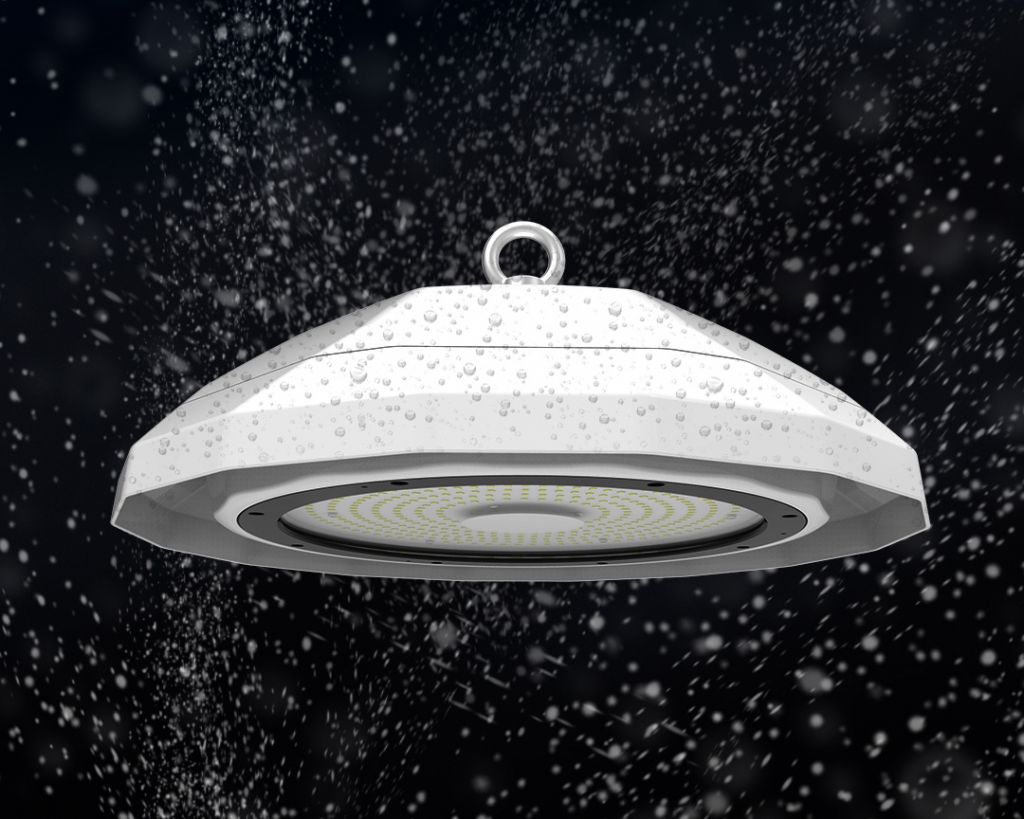

Faceted white aluminum housing, sealed to IP66 + IP69K, with a 115° polycarbonate optic and an included eye bolt. No components exposed to corrosion and no surfaces where dust, grease or water can collect.

Cuerpo facetado de aluminio blanco y argolla de la Clean Plus - Jungo Lighting
Faceted aluminum housing White and sealed: water runs off the facets and dust and grease do not build up. Corrosion resistant.
Clean Plus colgada sobre una línea de proceso de alimentos - Jungo Lighting CLEAN PLUS FOOD-GRADE LED HIGH BAY · 100 TO 200 W

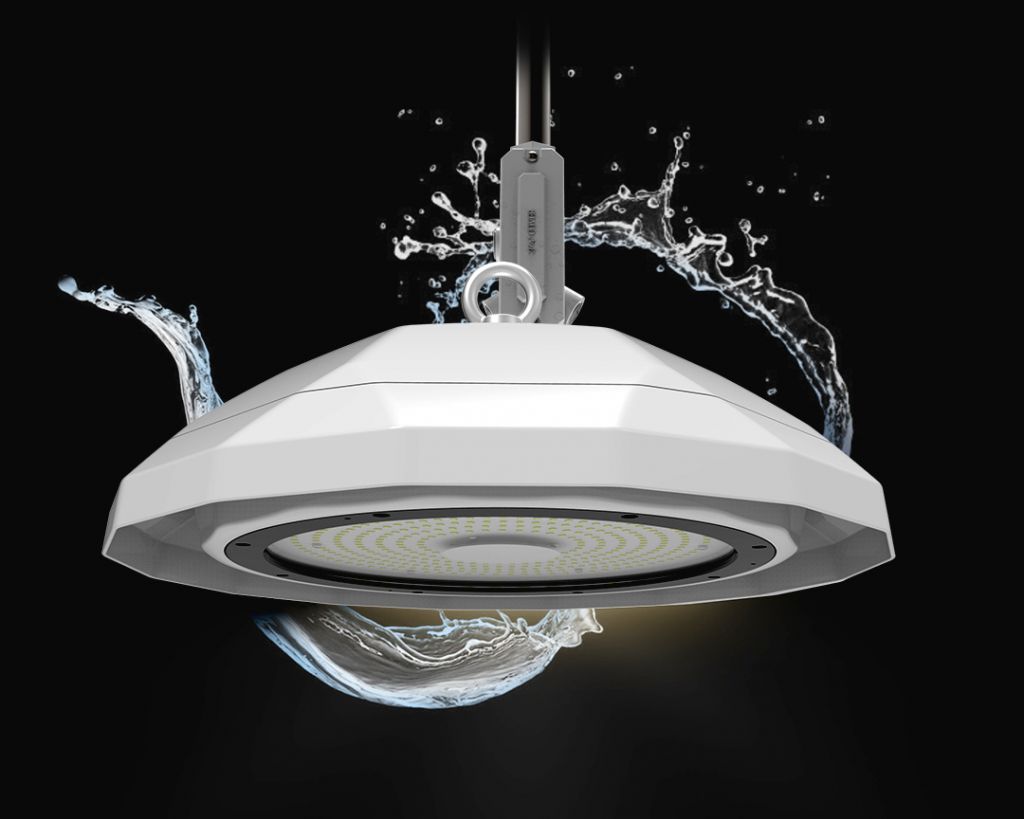

Cuerpo sellado IP69K de la Clean Plus con prensaestopa y argolla - Jungo Lighting
IP66 · IP69K · IK08 Withstands high-pressure, high-temperature water jets during sanitation, and resists impacts.

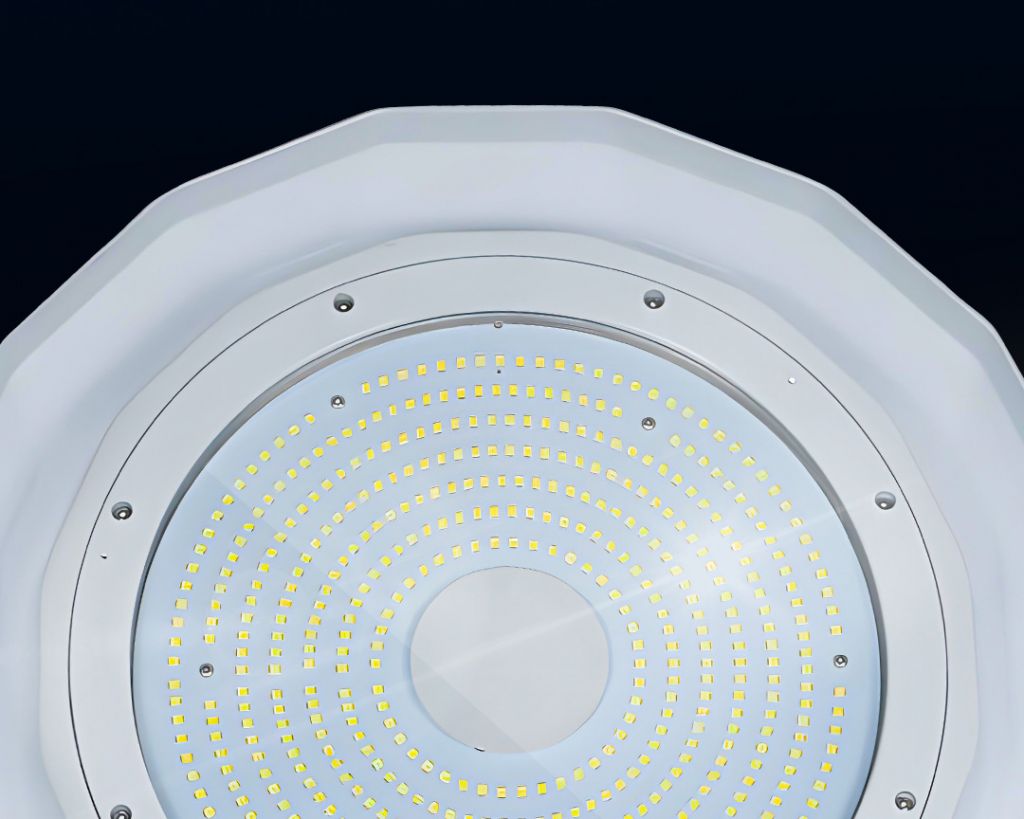

Óptica de policarbonato de 115° de la Clean Plus - Jungo Lighting
115° polycarbonate optic The PC lens is the one that meets NSF/ANSI 2: no glass over the processing area. CRI > 80.
RATED LIFE L70 ≥ 72,000 h TM-21. CRI > 80, power factor > 0.9, THD < 20 % and 4 kV surge protection.
Sello NSF/ANSI 2 zona de salpicadura - Jungo Lighting
CERTIFICATION · NSF/ANSI 2 Food equipment NSF/ANSI 2 (Food Equipment) certified for the splash zone and non-food zone with the polycarbonate optic: meat and deli, dairy, beverage and fresh produce. See the washdown test ↓
03 — WASHDOWN · IP69K

Washed with the plant,

right where it hangs.

Daily sanitation uses high-pressure hot water. The Clean Plus passed the IP69K lab test: a 176 °F jet at 1,160 to 1,450 psi from 4 to 6 in, at four angles; afterwards it ran normally and passed the dielectric withstand and insulation tests. That is why it stays up and on while the area is washed.

01
Washdown IP69K test · 176 °F · 1,160 to 1,450 psi
02
Cold storage Operates from −40 to 113 °F
● PROCESSING AREA · SANITATION TIME-LAPSE
IP69K TEST · ISO 20653 Water at 176 ± 9 °F, 1,160 to 1,450 psi and 3.7 to 4.2 gpm, from 4 to 6 in. 30 s per angle: 0°, 30°, 60° and 90°.
SPRAY ANGLE 0°
TIME AT THIS ANGLE 00:30
FIXTURE · CLEAN PLUS
150 W On
TEST CYCLE · 4 ANGLES × 30 S ANGLE 1 OF 4
0 s TEST PROGRESS 120 s
EJEMPLO DE NOCHE · 19:00 A 07:00 Así trabaja tu luminaria en una noche real
SIN PRESENCIA
1 min 5 min 10 min 15 min
NIVEL EN AUSENCIA
Apagar 10 % 20 % 50 %
Gráfica de la jornada (potencia vs. presencia) — se integra con el bloque interactivo
Presencia detectada
Potencia de la luminaria
POTENCIA PROMEDIO DE LA NOCHE 62 W 52 % DE LA POTENCIA · POR LUMINARIA en lugar de 120 W toda la noche. Eso es 48 % menos energía, en automático y sin programar horarios. Calcula tu ahorro en pesos →
IP66 + IP69K Dust, powerful jets and high-pressure hot-water washdown.
IK08 Withstands 5 J impacts without breaking the optic.
Insulation after washdown Over 9,999 MΩ measured after the test (4 MΩ minimum required).
Sealed wiring entry The supply cable enters through a cable gland into a sealed box.
Get a quote
04 — SPECIFICATIONS

Three models. One housing.

All three models measure Ø 17.09 in and 7.68 in tall with the eye bolt (housing 5.71 in). SO and MO weigh 12.3 lb; HO, 15.0 lb. Color temperature and driver are chosen at order.

SO · 100 W 15,000 lm · 4000 K
MO · 150 W 22,500 lm · 4000 K
HO · 200 W 30,000 lm · 4000 K
— —
— —
DIMENSIONS AND WEIGHT Ø 17.09 × 7.68 in with eye bolt
SO and MO: 12.3 lb · HO: 15.0 lb
WATTAGE 150 W · model MO
EFFICACY Up to 150 lm/W
LUMEN OUTPUT 22,500 lm (MO · 4000 K)
CCT AT ORDER 3000 K / 4000 K / 5000 K
OPTIC 115° · polycarbonate lens (NSF/ANSI 2)
INPUT VOLTAGE 100–277 VAC · 50/60 Hz
MATERIALS Aluminum, white finish · stainless steel eye bolt
POWER FACTOR > 0.9
TOTAL HARMONIC DISTORTION (THD) < 20 %
CRI > 80
PROTECTION IP66 · IP69K · IK08
SURGE PROTECTION 4 kV
OPERATING TEMPERATURE −40 to 113 °F
RATED LIFE L70 ≥ 72,000 h (TM-21)
CONTROLS Standard (S) or 0–10 V dimmable (D)
CERTIFICATIONS UL listed · UL 1598 (File E497790) · NSF/ANSI 2 · TAA compliant
ORDERING CODE CP-MO-D-40-N Build your code: series CP, model (SO 100 W · MO 150 W · HO 200 W), driver (S standard · D 0–10 V dimmable), CCT (30 · 40 · 50) and control (N, none). Eye bolt and safety cable included.

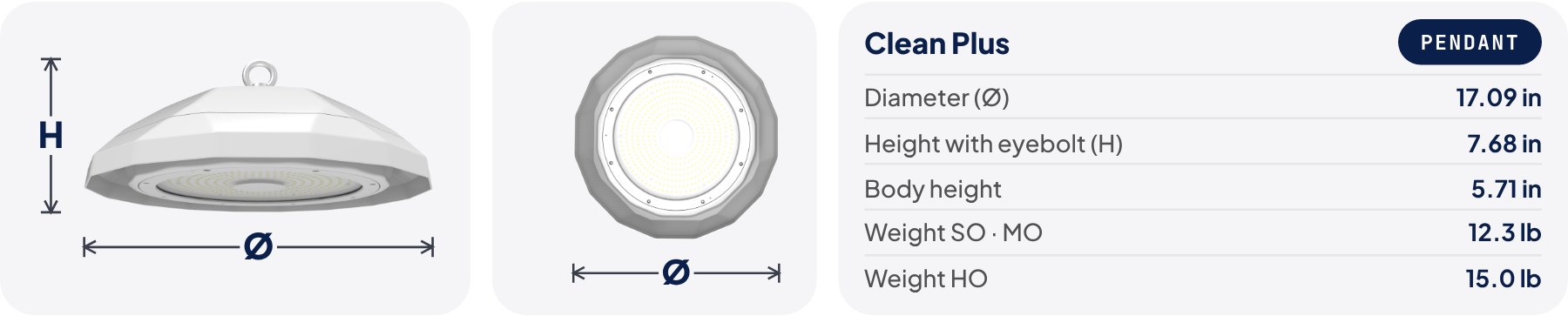

DIMENSIONS · TECHNICAL DRAWING
SO · MO · HO · 100–200 W Ø 17.09 in · 7.68 in with eye bolt · 12.3 to 15.0 lb
05 — MOUNTING AND INCLUDED

Hang it and go.

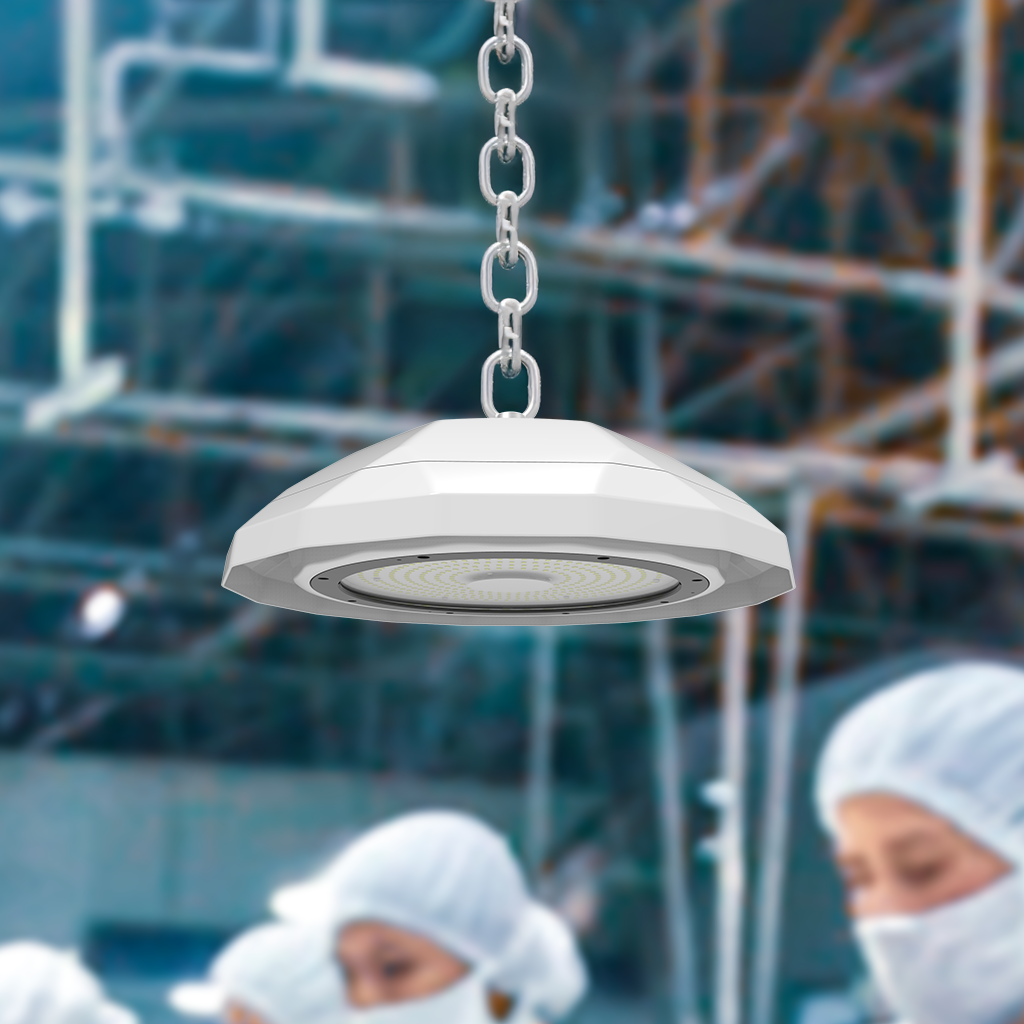

It hangs from the included eye bolt on a hook or chain, at mounting heights over 20 ft. The steel safety cable comes in the box and the supply cable enters through a gland into a sealed box.

Clean Plus suspendida con argolla y cadena - Jungo Lighting
Eye-bolt pendant INCLUDED
Stainless steel eye bolt: thread it, tighten it and hang it from a hook or chain. STANDARD ACROSS THE SERIES
Safety cable A second steel attachment, recommended over processing lines and equipment. INCLUDED IN THE BOX
0–10 V dimmable version Driver D dims with the plant’s 0–10 V controls. Chosen in the ordering code. OPTIONAL AT ORDER · CODE D

06 — ESPECIFICADORES

Everything to specify it.

Certified and verifiable.

Download the spec sheet, the installation guide and the 18 IES files for your DIALux or AGi32 layout. UL listing can be verified in the public UL Product iQ directory.

PDF

Spec sheet

PDF · ENGLISH (US)

↓

IES

IES files

ZIP · 18 FILES · LM-63

↓

PDF

Installation guide

PDF · ENGLISH (US)

↓

DLX

Photometric study

FREE · FOR YOUR PROJECT

→

UL 1598

UL SOLUTIONS · FILE E497790

UL listed general-use luminaires. Verifiable in the public UL Product iQ directory.

Verify on UL Product iQ →

NSF

NSF/ANSI 2

FOOD EQUIPMENT

Splash zone and non-food zone, with the polycarbonate optic.

07 — PREGUNTAS FRECUENTES

About the Clean Plus

Have another question? An advisor will answer you on WhatsApp.

What does IP69K mean?

It is the highest rating against water: the fixture withstands 176 °F jets at 1,160 to 1,450 psi from 4 to 6 in away. The Clean Plus is also IP66 (dust and powerful jets) and IK08 (impact).

What does NSF/ANSI 2 cover?

NSF/ANSI 2 is the food equipment standard. The Clean Plus is certified for the splash zone and non-food zone with the polycarbonate optic, so it can be installed over meat, dairy, beverage and fresh produce processing lines.

Does it work in cold storage?

Yes. It operates from −40 to 113 °F, so it suits freezers, coolers, refrigerated docks and processing areas.

Is it certified?

Yes. It is UL listed to UL 1598 (UL Solutions, File E497790), verifiable in the public UL Product iQ directory, NSF/ANSI 2 certified and TAA compliant.

Can it be dimmed?

Yes, with version D (0–10 V dimmable driver), selected in the ordering code. Version S is on/off.
