Nova.

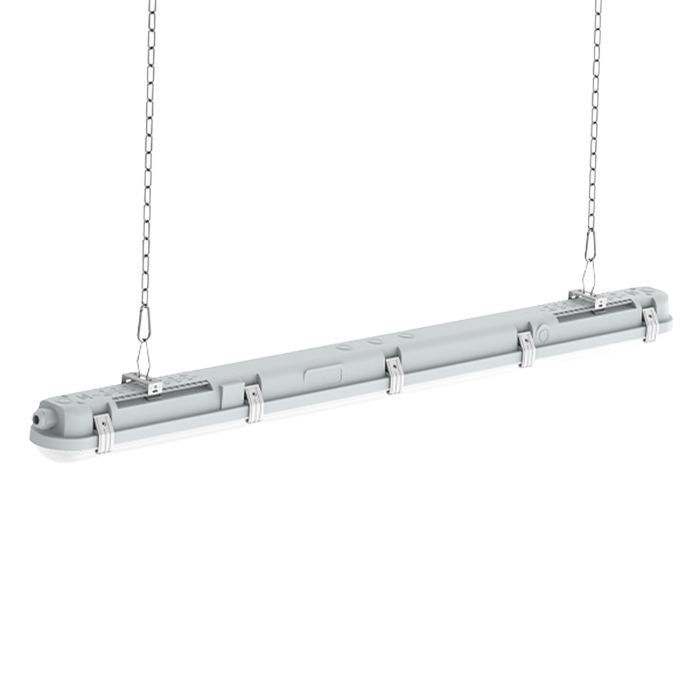

Vapor tight linear for the task. 15 to 100 W.Low-mount task lighting: the second layer below the high bays, close to the workbench, the inspection line or the paint booth. IP66 and IK08, field-selectable wattage and CCT, and 150 lm/W. Replaces fluorescent vapor tight fixtures.
Pick your Nova.
Length at order; wattage and CCT in the field.Three lengths with the same 120° opal polycarbonate lens: 2FT from 15 to 25 W, 4FT from 20 to 45 W and 8FT from 60 to 100 W. Wattage and color temperature are set with the internal switch to match mounting height and task.

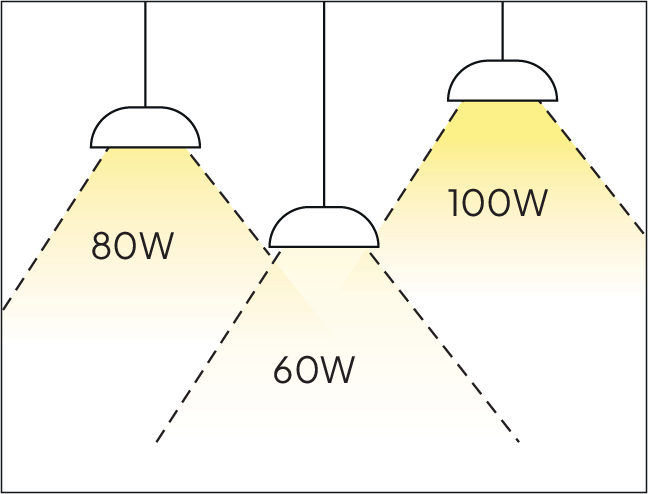

Output for each configuration at 150 lm/W per the spec sheet, with a 120° opal polycarbonate lens: up to 15,000 lm on the 100 W 8FT. The scene is illustrative; actual levels depend on mounting height and spacing.
IP66 vapor tight
against dust, water and impact.Polycarbonate body and lens with stainless steel clips that seal the lens against the gasket: IP66 and IK08 for damp, cold or frequent-washdown areas.
NOVA
LOW BAY VAPOR TIGHT · 15 TO 100 W
Full light where people are,

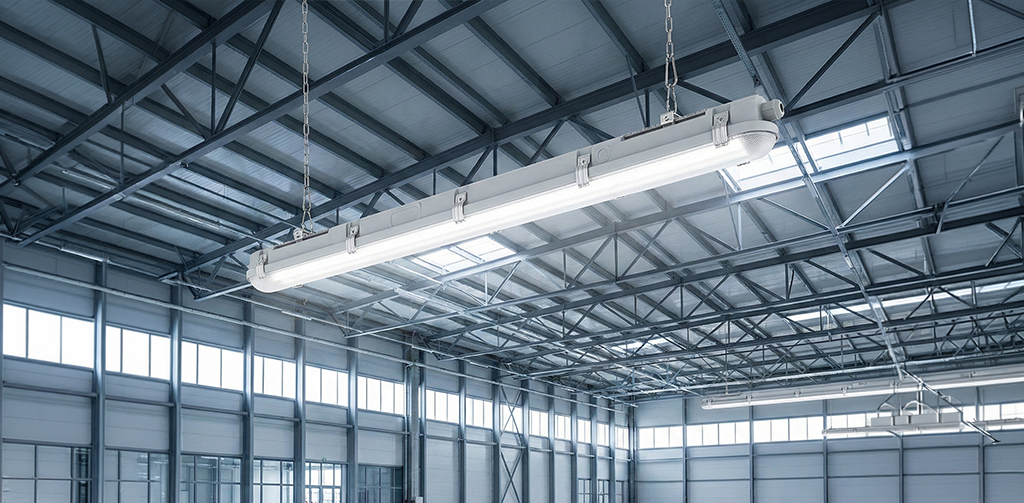

low level where they are not.With the optional microwave sensor, each Nova goes to 100 % when it detects motion below it and, after a hold time with no one present, steps down to a standby level. Only the occupied zone gets full light: parking garages, service tunnels and corridors that sit empty for hours.
Three lengths. One optic.
The 2FT is 23.7 in long and weighs 2.6 lb; the 4FT, 47.3 in and 4.0 lb; the 8FT, 94.1 in and 9.4 lb. All are 3.78 in wide and 3.31–3.35 in tall. Wattage and CCT are set with the switch.
2FT · 4FT · 8FT · 15–100 W
23.7 / 47.3 / 94.1 in · 3.78 × 3.31–3.35 in · 2.6 / 4.0 / 9.4 lb
Surface mount as standard.

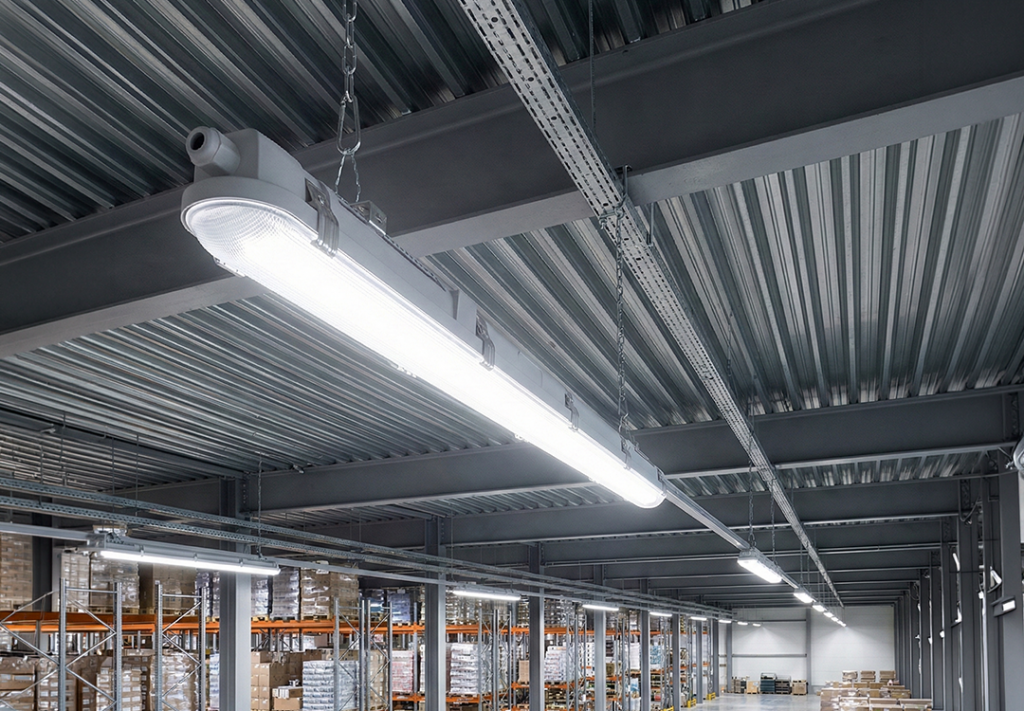

It ships for surface mounting on ceilings or walls with the included steel brackets. To hang it over a bench or a line, order the chain kit accessory. Options when ordering: 4, 8 or 15 W emergency battery and microwave sensor.
06 — SPECIFIERS
Everything to specify it.
Ready for your project.
Download the spec sheet, the installation guide and the 27 IES files (2FT, 4FT and 8FT, every wattage and CCT) for your DIALux or AGi32 layout.
Spec sheet
PDF · ENGLISH (US)
↓
IES
IES files
ZIP · 27 FILES · LM-63
↓
Installation guide
PDF · ENGLISH (US)
↓
DLX
Photometric study
FREE · FOR YOUR PROJECT
→
UL 1598
UL · LISTED · E497790
LED luminaire listed by UL to the UL 1598 standard.
Verify on UL Product iQ →
−40 °F
Cold rooms
OPERATING TEMPERATURE
Operates from −40 to 113 °F: cold rooms, loading docks and parking garages.
07 — FAQ
About the Nova
Have another question? An advisor will answer you on WhatsApp.
What is the Nova used for?
What is the Nova used for?
It is low-mount task lighting: the second layer below the high bays, close to the task. It is used in paint inspection tunnels and booths, assembly and inspection benches, production lines, service tunnels, parking garages and cold rooms, and it replaces fluorescent vapor tight fixtures.
How do I change wattage and CCT?
How do I change wattage and CCT?
With the internal switch and the power off: 3 wattages per length (2FT 15/20/25 W, 4FT 20/30/45 W and 8FT 60/80/100 W) and 3 CCTs: 3500, 4000 and 5000 K.
How does the microwave sensor work?
How does the microwave sensor work?
It is an optional sensor built into the fixture. It brings the Nova to 100 % when it detects motion and, after a hold time with no one present, steps it down to a standby level. Order it in the code (MMS).
Is it certified?
Is it certified?
Yes. It is UL listed to UL 1598 (file E497790), TAA compliant and USMCA compliant.
Is there an emergency backup?
Is there an emergency backup?
Yes, with an optional 4 W (2FT, 4FT and 8FT), 8 W or 15 W (4FT and 8FT) battery that keeps the light on during a power outage. Chosen in the ordering code.
08 — COMPLETE YOUR PLANT
Related products
NOVA
How many Novas does your plant need?
We run the photometric study at no cost for inspection lines, assembly benches, tunnels and parking garages, and help you choose length, wattage and CCT.
