Wall Pack Architectural.

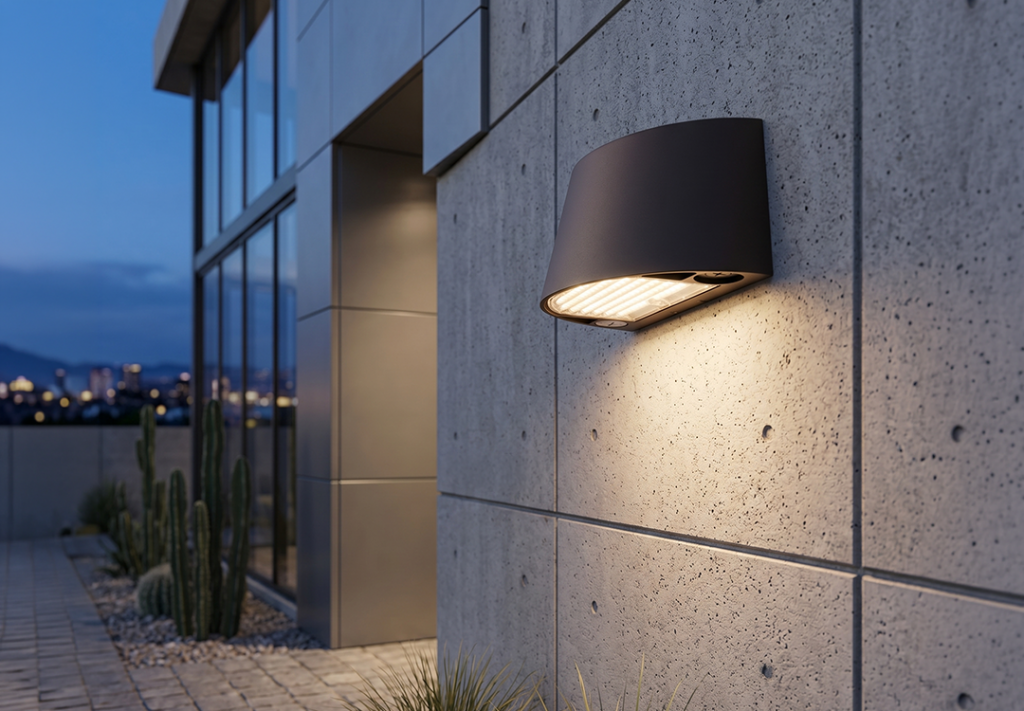

Field-selectable 60–120 W, up/down or downlight.Built for facades, columns, entrances and walls of corporate offices and manufacturing plants. A 4-in-1 switch sets wattage, CCT, light distribution and photocell in the field.
IN ONE MODEL
Set it on site.
Wattage, CCT, distribution and photocell at install.One model covers 60 to 120 W. In the field, the 4-in-1 switch sets wattage, color temperature, light distribution (up/down or downlight only) and photocell; the optic is Type III. Factory setting: 120 W, 5000 K, up/down and photocell on.
Flux and efficacy for each combination per the laboratory LM-63 IES files (4 wattages × 3 CCTs, Type III optic, up/down and downlight only); the photocell does not change the photometry. We run the photometric layout for your project at no cost.
Architectural,

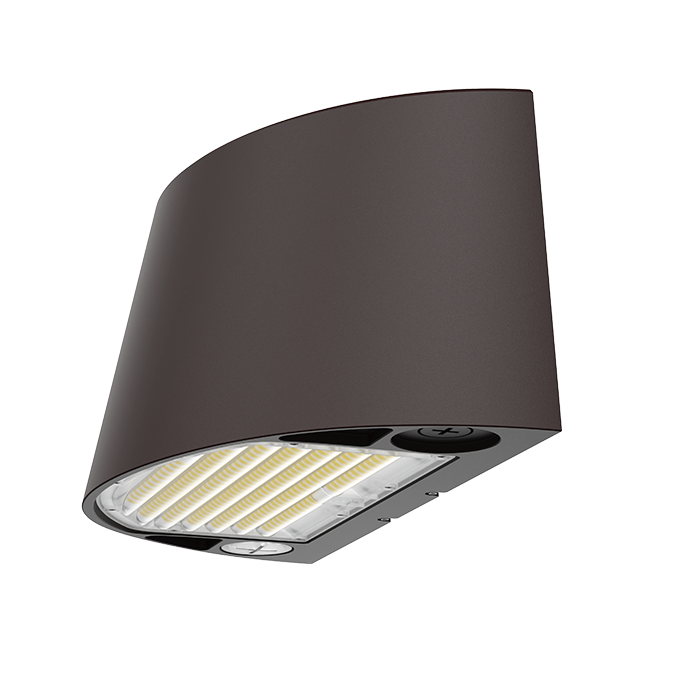

sealed and field-adjustable.Die-cast aluminum body with an architectural bronze form, sealed to IP65, an LED module of up to 163 lm/W and a 4-in-1 switch to set wattage, CCT, distribution and photocell in the field.
WALL PACK ARCHITECTURAL
LED WALL PACK · 6.1 LB · UP/DOWN LIGHT
Light only

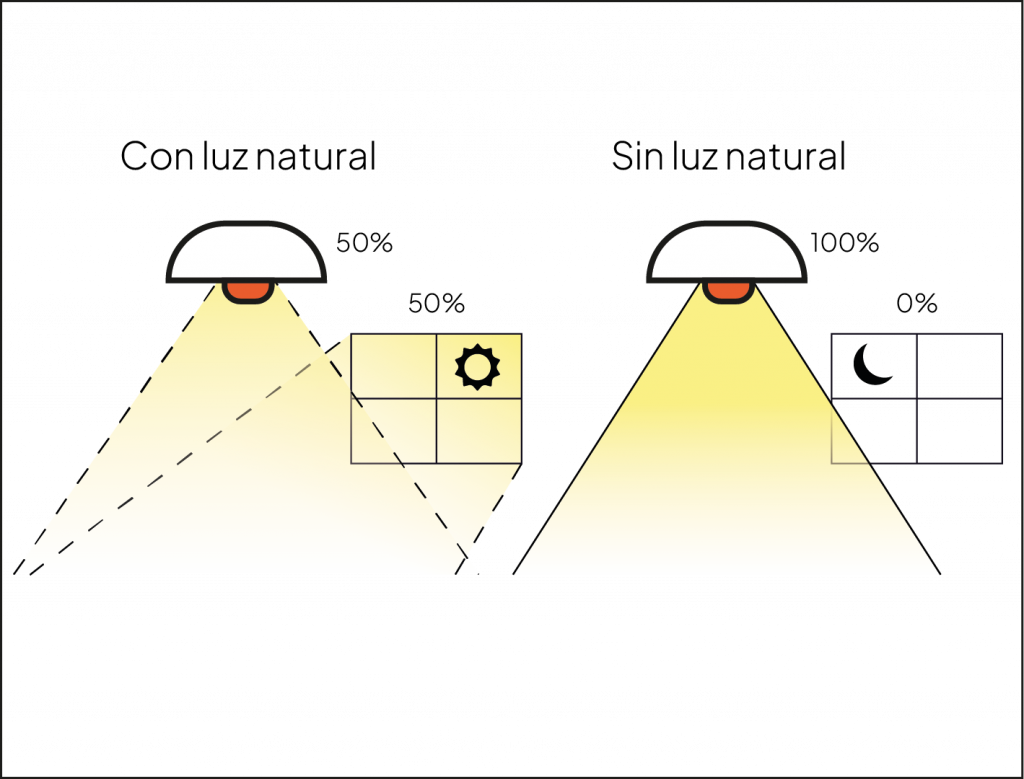

where it's needed.The Jungo Connect One controller is built into the luminaire and combines Bluetooth Mesh® (SIG Mesh) connectivity with two sensors: microwave for occupancy and illuminance for daylight. No schedules to program: set the rule once and the system runs on its own, 24/7.
One model. Four wattages.

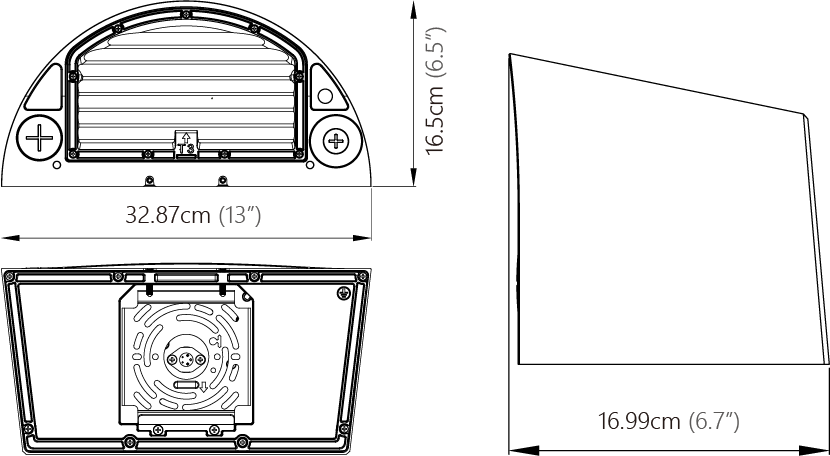

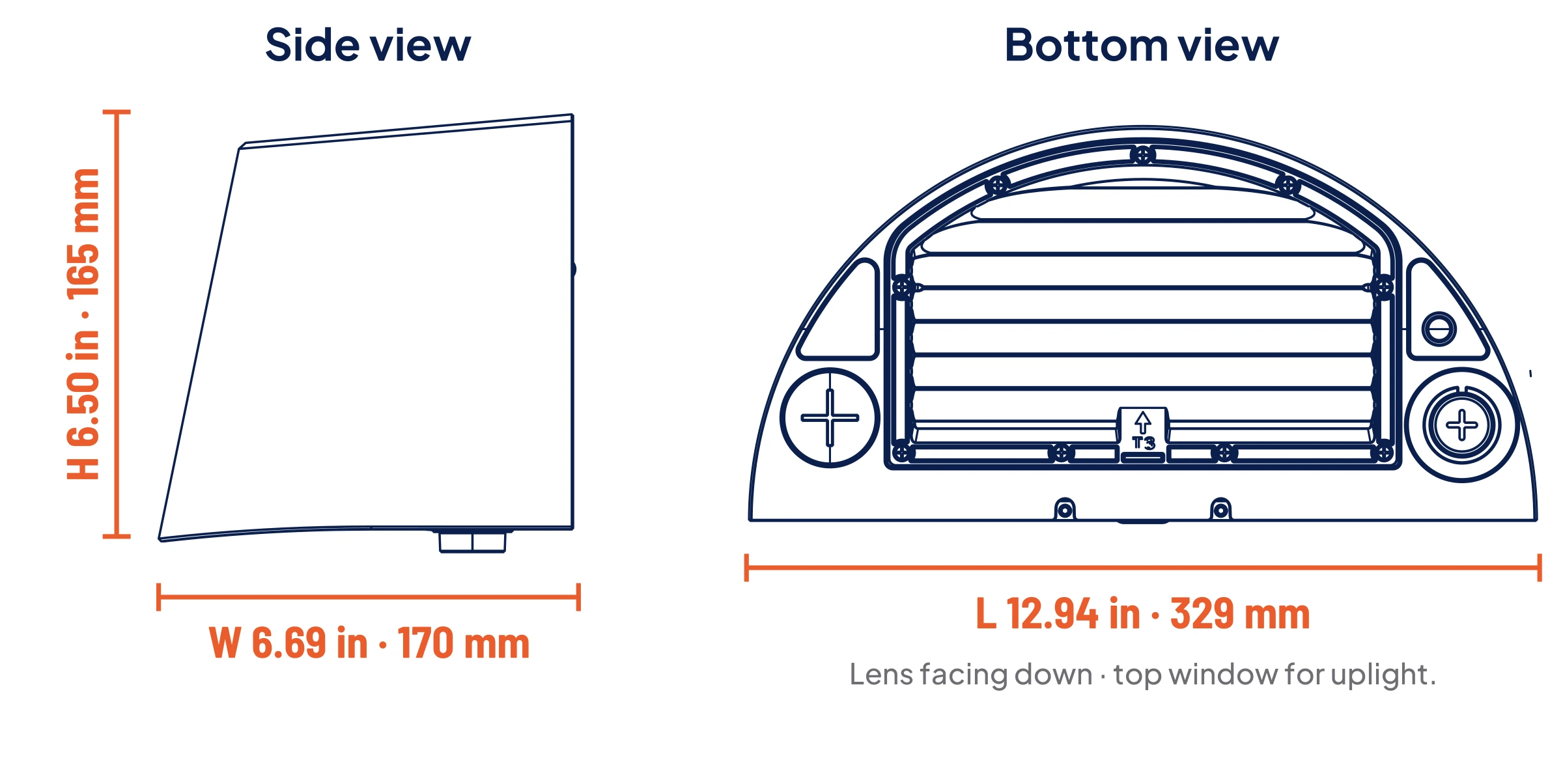

The SO model measures 12.94 × 6.69 × 6.50 in and weighs 6.1 lb. Wattage, CCT, distribution and photocell are set in the field with the 4-in-1 switch; the optic is Type III.
SO · 60–120 W
12.94 × 6.69 × 6.50 in · 6.1 lb

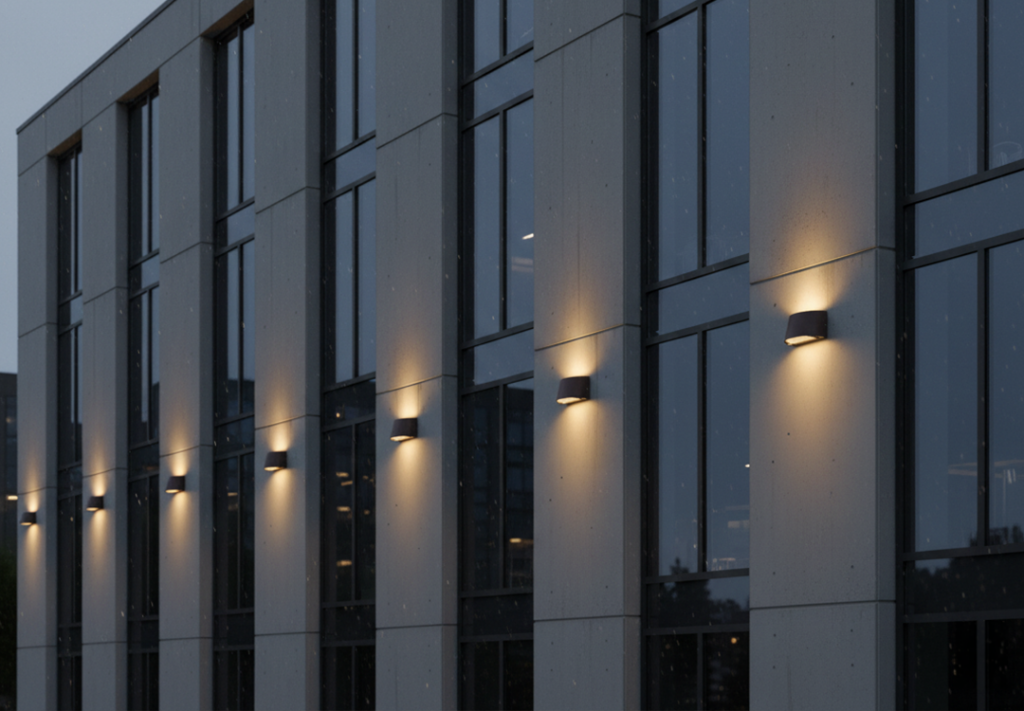

Ready for the wall.
Mounts to the wall over a junction box or with anchors; ships with 4 UNC screws, 4 self-tapping screws and 5 wire nuts. The emergency battery and the Jungo Connect One sensor are factory-installed and selected in the ordering code.
06 — FOR SPECIFIERS
Everything to specify it.
Certified and verifiable.
Download the spec sheet, the installation guide and the 24 IES files (up/down and downlight only) for your DIALux or AGi32 layout.
Spec sheet
PDF · ENGLISH (US)
↓
Installation guide
PDF · ENGLISH (US)
↓
IES
IES files
ZIP · 24 FILES · LM-63
↓
DLX
Photometric layout
FREE · FOR YOUR PROJECT
→
TAA
TRADE AGREEMENTS ACT
TAA compliant for U.S. federal and public-sector projects.
IP65
Ingress protection
IP RATING

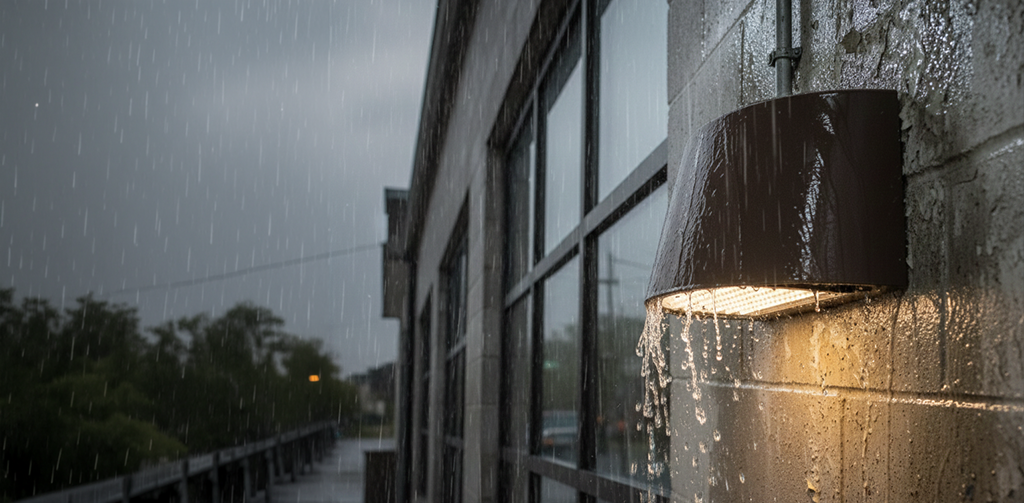

Rain and dust on facades and exterior walls, from −40 to 122 °F.
07 — FAQ
About the Wall Pack Architectural
Have another question? An advisor will answer you on WhatsApp.
What does the 4-in-1 switch set?
What does the 4-in-1 switch set?
Wattage (60, 90, 100 or 120 W), color temperature (3000, 4000 or 5000 K), light distribution (up/down or downlight only) and photocell (on or off). Factory setting: 120 W, 5000 K, up/down and photocell on.

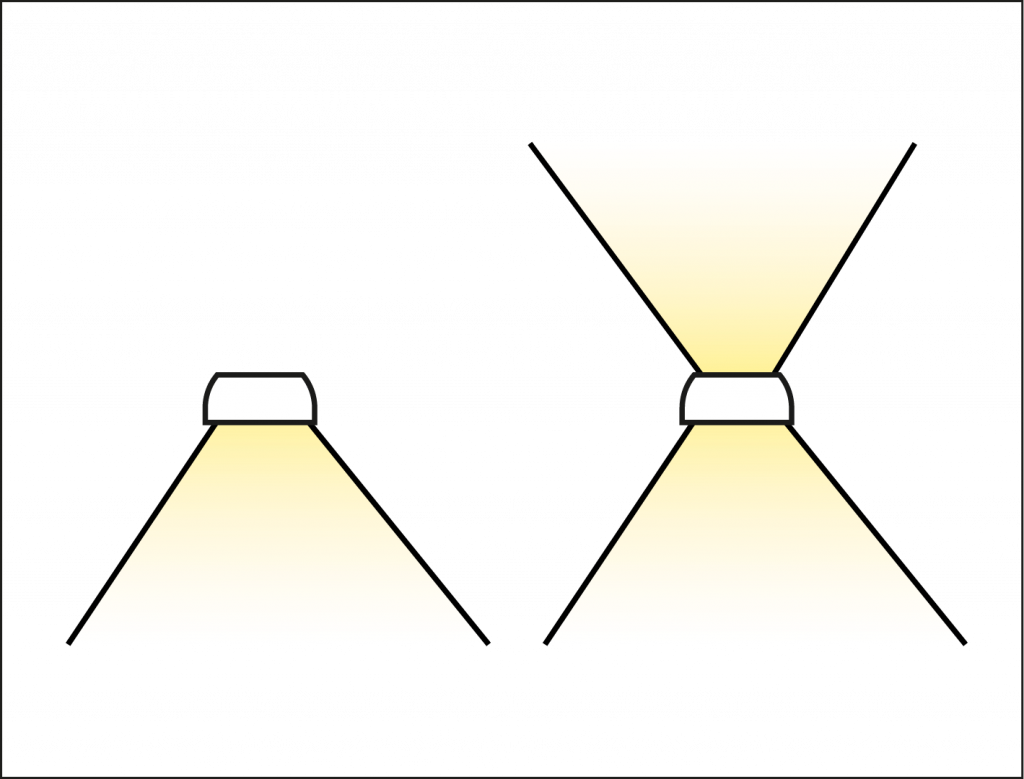

What is the up/down light for?
What is the up/down light for?

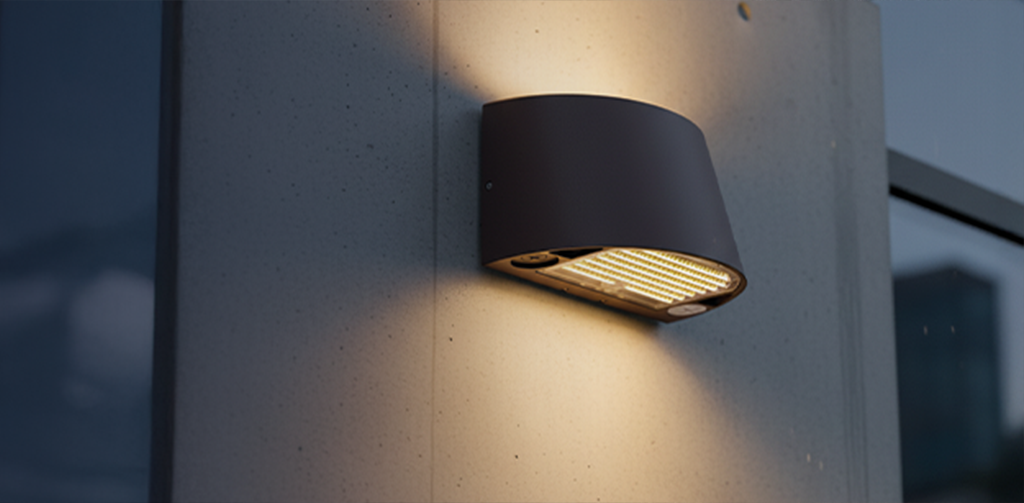

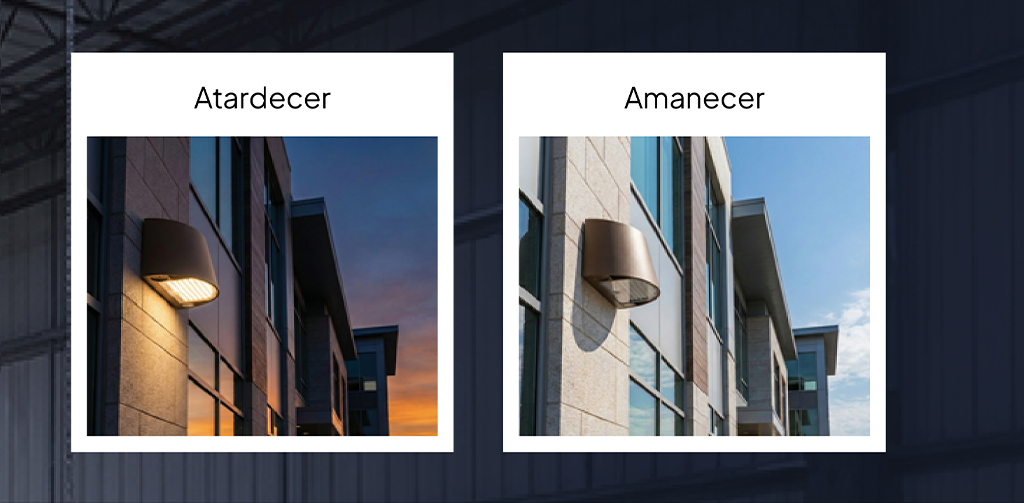

It washes the wall up and down with two symmetric beams, the architectural effect for facades, columns and entrances. If you only need light on the ground, the same switch sets it to downlight only. The built-in mini photocell turns it on at dusk and off at dawn.
Can the Wall Pack Architectural be controlled with Jungo Connect®?
Can the Wall Pack Architectural be controlled with Jungo Connect®?
Yes. It is compatible with Jungo Connect One: the smart version (code I) integrates the sensor for occupancy and daylight, managed from the app or the web platform.
What certifications does it have?
What certifications does it have?
It is IP65 rated for wet locations and TAA compliant. For project submittals, ask an advisor for the documentation.
Is emergency backup available?
Is emergency backup available?
Yes, as a factory-installed option: a 4 W battery (code 2) or an 8 W battery (code 3) in the ordering guide. With a battery, the fixture operates from 32 to 104 °F.
08 — COMPLETE YOUR PROJECT
Related products
WALL PACK ARCHITECTURAL
How many Wall Pack Architectural fixtures does your facade need?
We run the photometric layout at no cost with the ideal configuration for each zone.
