Nova Wide.

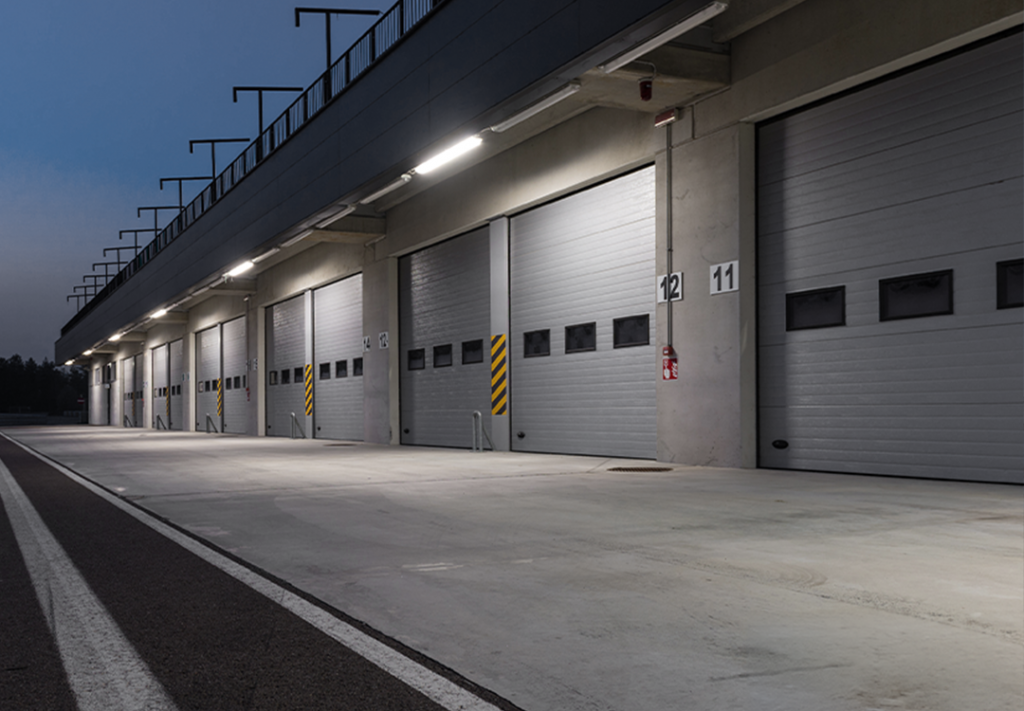

IP66 vapor tight for close-up work. 45 to 75 W.4FT vapor-tight LED fixture for assembly and inspection stations, paint inspection tunnels, distribution centers, cold storage, loading docks and covered parking. It is the second layer of light: mounted low, close to the task, below the high bays. Field-selectable wattage and CCT; IP66 and IK08.
Build your Nova Wide.

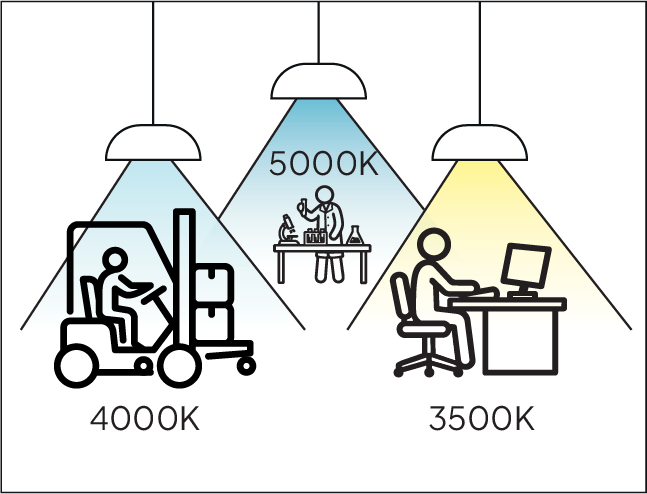

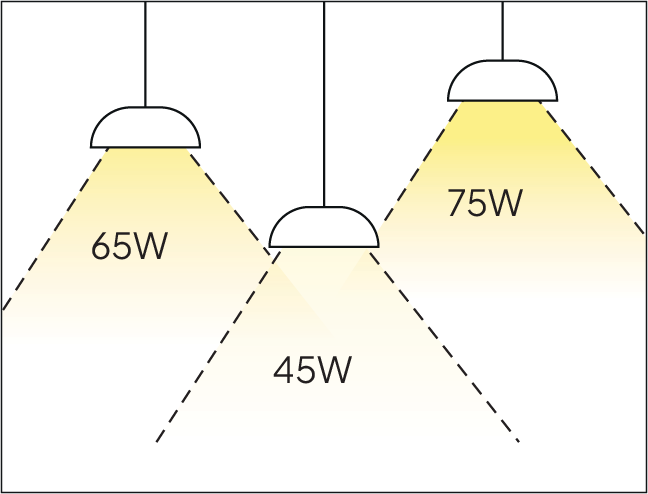

Wattage and CCT in the field; sensor at order.One 4FT fixture with a 120° opal polycarbonate diffuser: 45, 65 or 75 W and 3500, 4000 or 5000 K, at 150 lm/W on all three wattages. Set them with the switch on the fixture to match mounting height and task, without changing products.
Lumen output for each configuration at 150 lm/W per the spec sheet, with the 120° opal polycarbonate diffuser: 6,750, 9,750 and 11,250 lm. The scene is illustrative; actual levels depend on mounting height and spacing.
Sealed, light

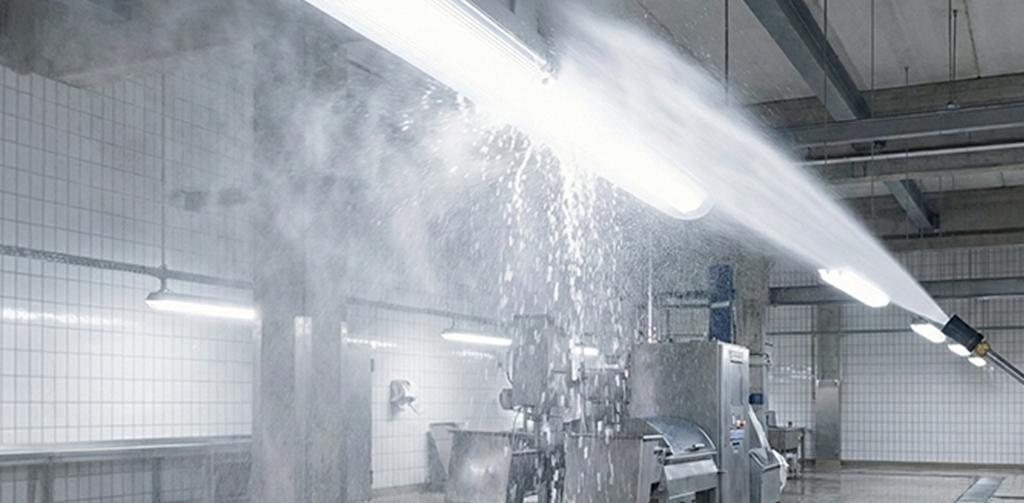

and built for the cold.Polycarbonate housing and diffuser, stainless steel latches and a built-in switch: it stands up to moisture, dust, impact and cold. IP66 against water jets and dust, IK08 against impact, and operation from −40 to 113 °F.
NOVA WIDE
VAPOR-TIGHT LED LOW BAY · 45 TO 75 W
Full light when someone is there,
a low level when no one is.With the MMS microwave sensor, the Nova Wide goes to 100 % when it detects motion and, after a period with no one present, steps down to a standby level instead of staying at full output. Ideal for cold storage, loading docks and warehouse aisles that sit empty for hours.
One length. Three wattages.

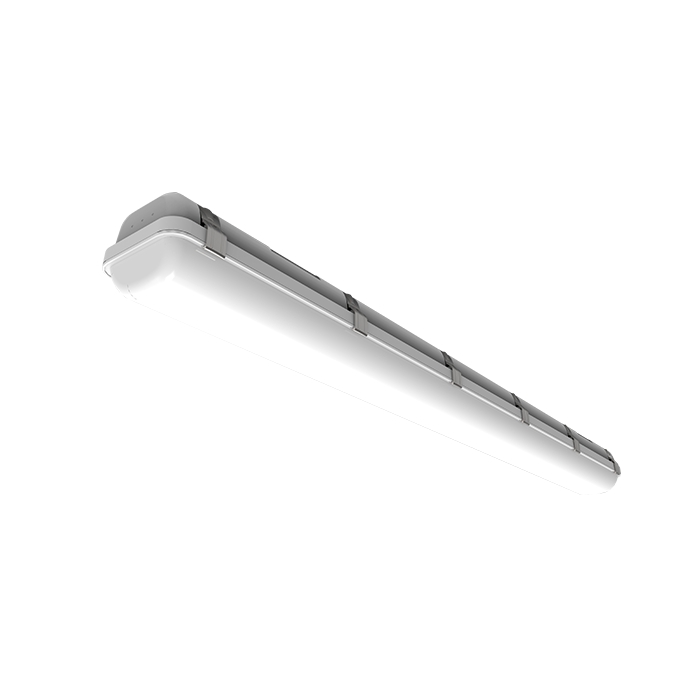

The Nova Wide 4FT is 47.3 in long, 4.9 in wide and 3.7 in tall, and weighs 5.47 lb. Wattage and CCT are set with the switch on the fixture.
NOVA WIDE · 4FT
47.3 × 4.9 × 3.7 in · 5.47 lb

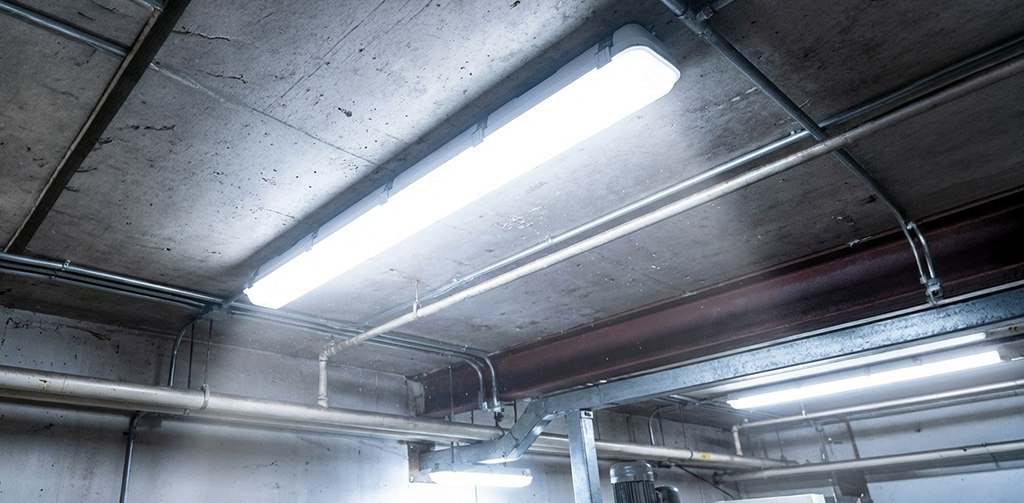

Surface or suspended.

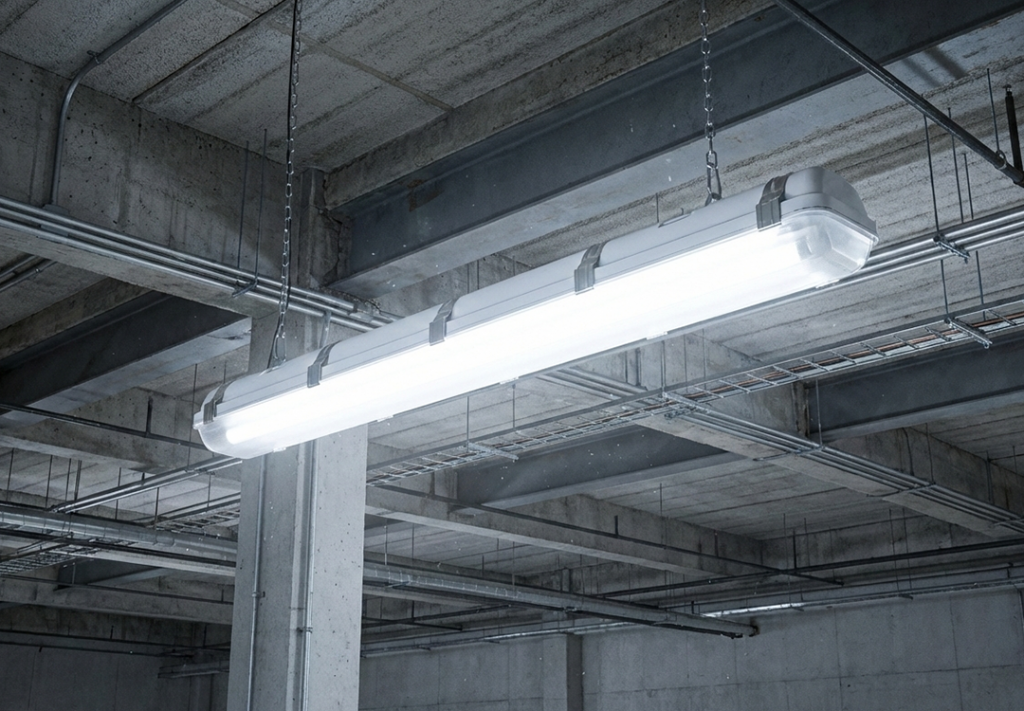

Standard: surface mounted to the ceiling or structure with the included clips. Accessories: chain or cable kit to bring it down close to the task, and a bracket. Options at order: MMS microwave sensor and an 8 W or 15 W emergency battery.
06 — SPECIFIERS
Everything to specify it.
Sealed and verifiable.
Download the spec sheet, the installation guide and the 9 IES files (every wattage and CCT) for your DIALux or AGi32 layout.
Spec sheet
PDF · ENGLISH (US)
↓
IES
IES files
ZIP · 9 FILES · LM-63
↓
Installation guide
PDF · ENGLISH (US)
↓
DLX
Photometric study
FREE · FOR YOUR PROJECT
→
UL 1598
UL · LISTED · E497790
LED luminaire listed by UL to the UL 1598 standard.
Verify on UL Product iQ →
WET
Wet locations
INDOOR AND COVERED OUTDOOR
Cold storage, loading docks, washdown areas and covered parking.
07 — FAQ
About the Nova Wide
Have another question? An advisor will answer you on WhatsApp.
Where is the Nova Wide used?
Where is the Nova Wide used?
As a second layer of light, close to the task: assembly and inspection stations and paint inspection tunnels, below the high bays. Also in distribution centers, cold storage, loading docks and covered parking, where moisture, dust or cold call for an IP66 vapor-tight fixture.
How do I change the wattage and CCT?
How do I change the wattage and CCT?
With the built-in switch on the fixture, with the power off: 3 wattages (45, 65 or 75 W) and 3 CCTs (3500, 4000 or 5000 K), to match mounting height and task.
How does the microwave sensor work?
How does the microwave sensor work?
The MMS sensor is built into the fixture and chosen at order. It brings the fixture to 100 % when it detects motion and, after a period with no one present, steps it down to a standby level.
Is it certified?
Is it certified?
Yes. It is UL listed to UL 1598 (file E497790), IP66 and IK08 rated, TAA compliant and USMCA compliant.
Does it have emergency backup?
Does it have emergency backup?

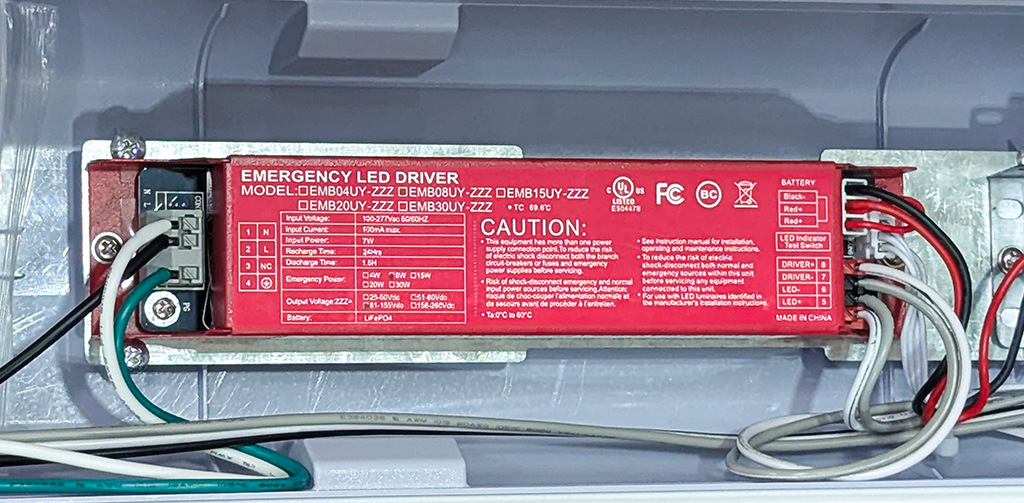

Yes, with an optional 8 W (EMB8) or 15 W (EMB15) battery that keeps the light on during a power outage. It is chosen in the ordering code.
08 — COMPLETE YOUR PLANT
Related products
NOVA WIDE
How many Nova Wide fixtures does your facility need?
We run a free photometric layout for your assembly and inspection lines, warehouses, cold storage and loading docks, and help you choose the wattage, CCT and options.
