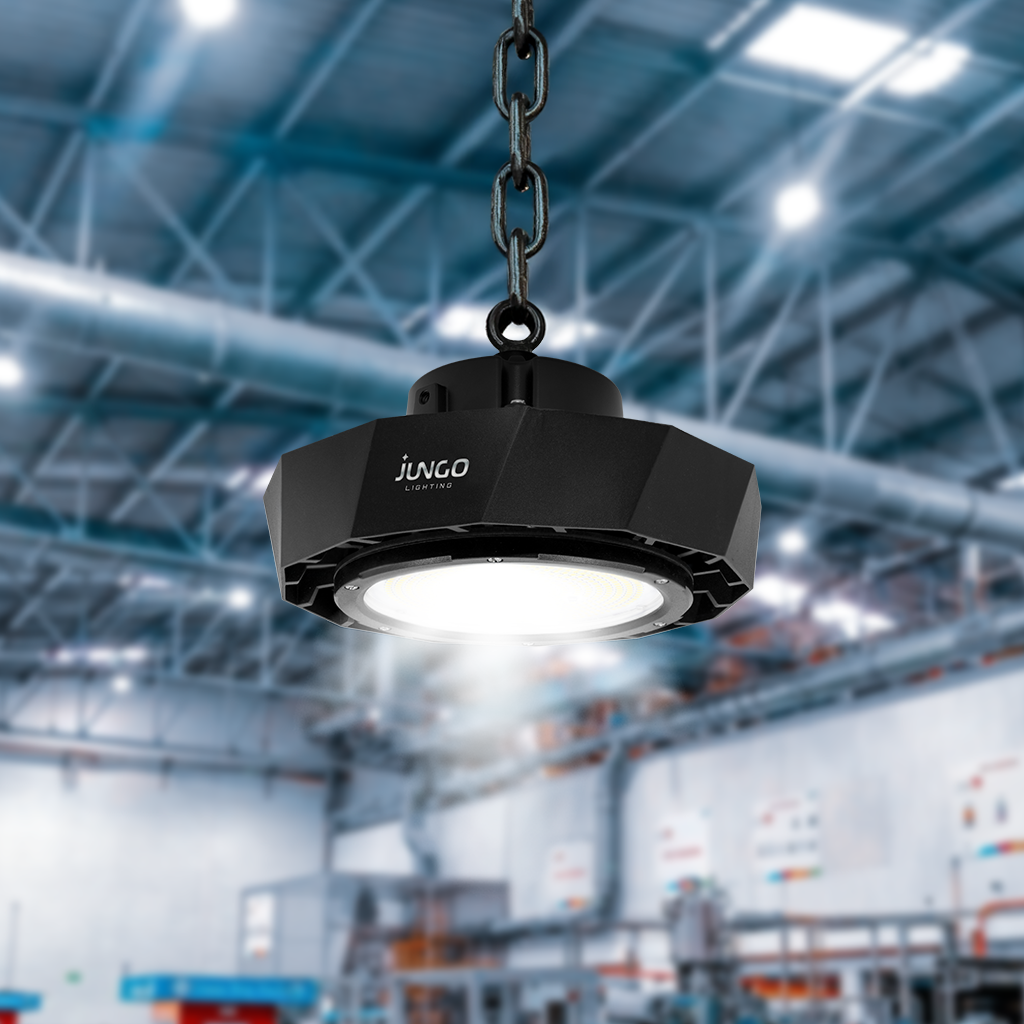

Venus V4
High & Low Bay
Designed for maximum performance in demanding industrial environments, it combines energy efficiency, high light output and intelligent control in a single unit.
Its modular design allows for easy installation and maintenance, while its compatibility with sensors and automation systems makes it an ideal solution for projects requiring efficiency, durability and connectivity.
IP65 Splash resistant
IK08 Impact resistant
180LM/W
Luminous Efficiency
Jungo Connect
Ready
Luminous Efficiency
180LM/W
Polycarbonate
Optics
Opening angle
120°.
Luminous flux
15,000lm/W
Easily adjust the power of your luminaire in the field.
Venus V4 has a power switch that allows you to easily adjust the power of your luminaire at any time, adapting it to your environment and height.
Durability and Resistance
With an IP65 rating, Venus is immune to dust and water, IK08 impact resistance, and is robust against the most demanding conditions. In addition, it is equipped with surge protection up to 4 kV.
Stay illuminated in unexpected situations.

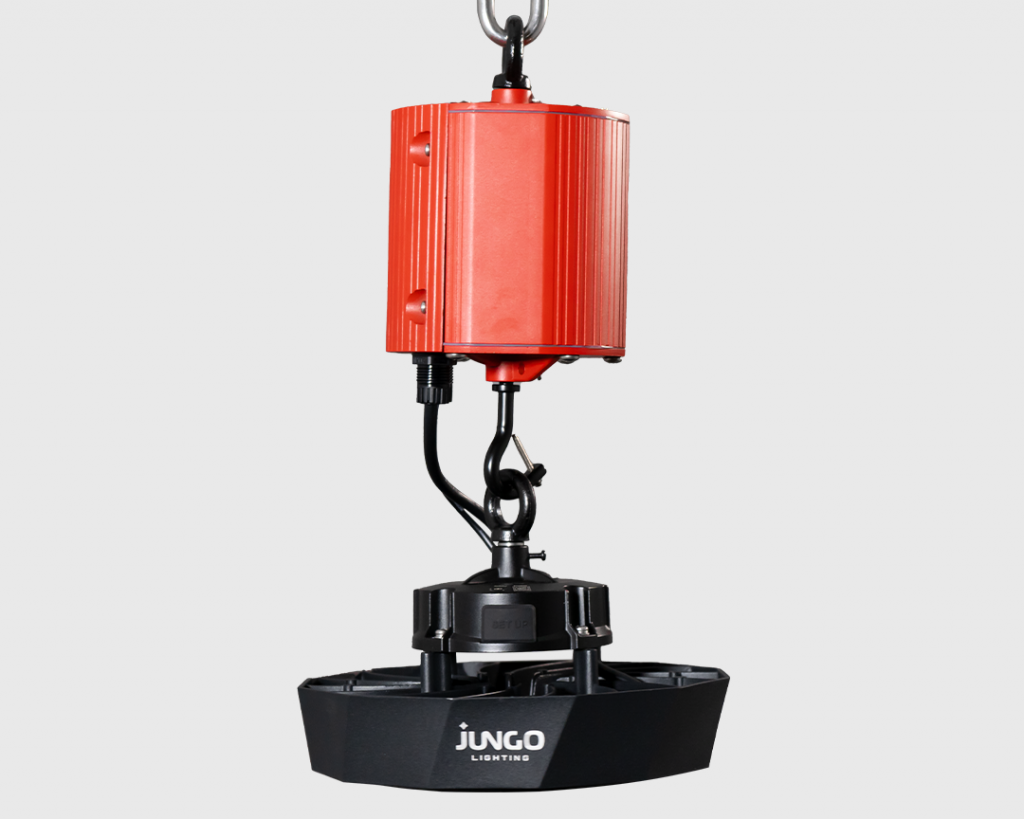

Venus V4 is compatible with emergency battery that allows the luminaire to operate for a minimum of 90 minutes. It has two operating wattages (25W / 40W).
Receive expert care.
Connect with one of our consultants and receive expert guidance to select, configure and implement the ideal lighting in your space. We are here to provide you with confidence and customized solutions.

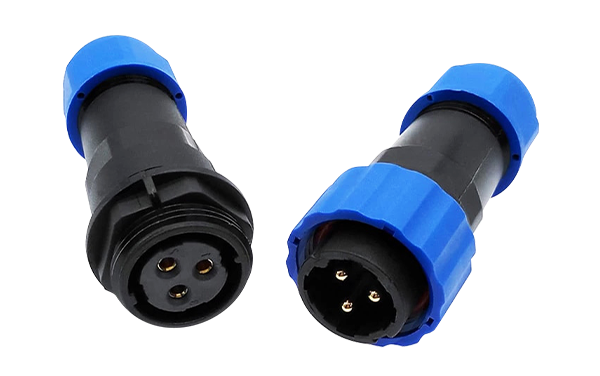

Quick connector IP68
QCONNECTOR

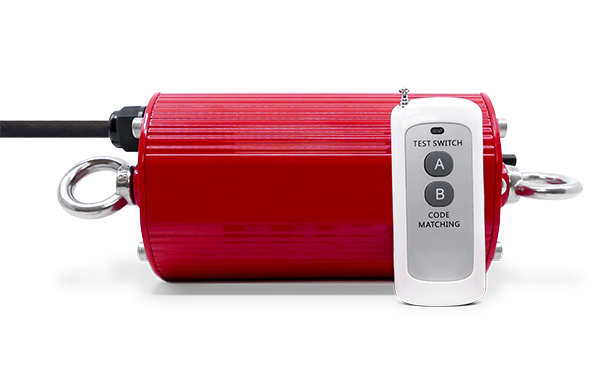

Emergency battery
EMUFO-25170-TT (25 W)
EMUFO-40170-TT (40 W)
Remote control for emergency battery
RCEMA

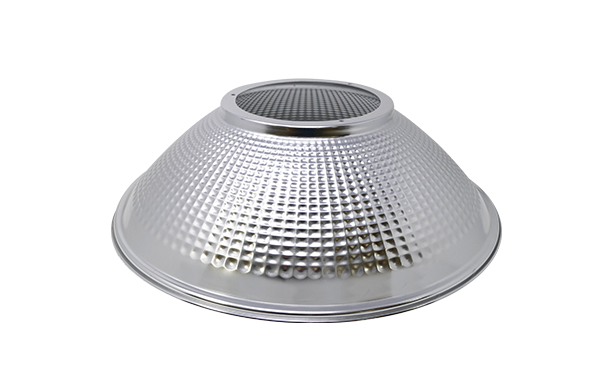

Aluminum reflector
VN3AL60 (60°)
VN3AL90 (90°)
VN3AL120 (120°)

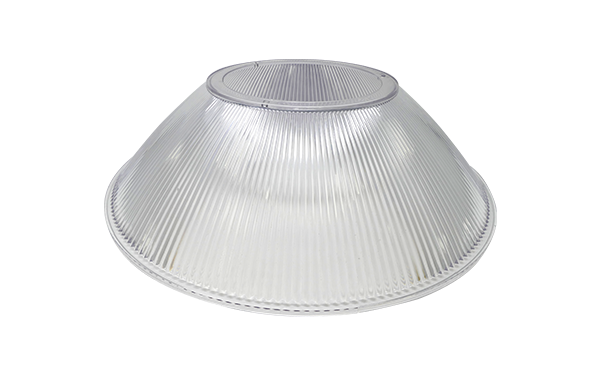

Polycarbonate reflector
VN3AL60 (60°)
VN3AL90 (90°)
VN3AL120 (120°)

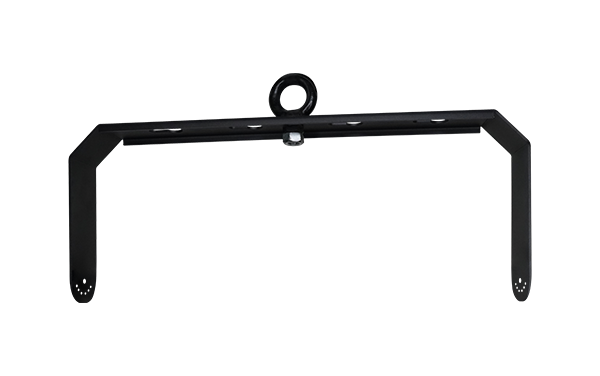

Double bracket
VN3BRDOB

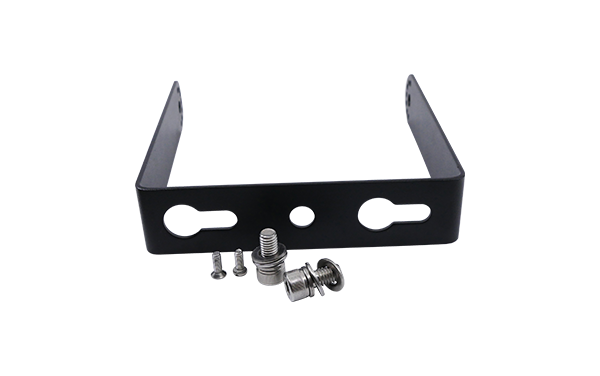

Rotatable bracket
VN3BR
Rotatable bracket
VN3BR
Rotatable bracket
VN3BR
| Luminous efficacy | 150 LM/W |
| Input voltage | 100 - 277 V~ / 200 - 480 V~ / 200 - 480 V~ |
| Dimmable | 0 - 10 V |
| IRC | >80 |
| Beam Angle | 120° |
| Operating temperature | -20 to 50 °C |
| Mounting | Suspended: Eyebolt (included) Overlapped: Rotating Bracket and Double Bracket |
| Optics | Borosilicate |
| Protection | IP65 |
| Resistance | IK08 |
