TRI-PROOF

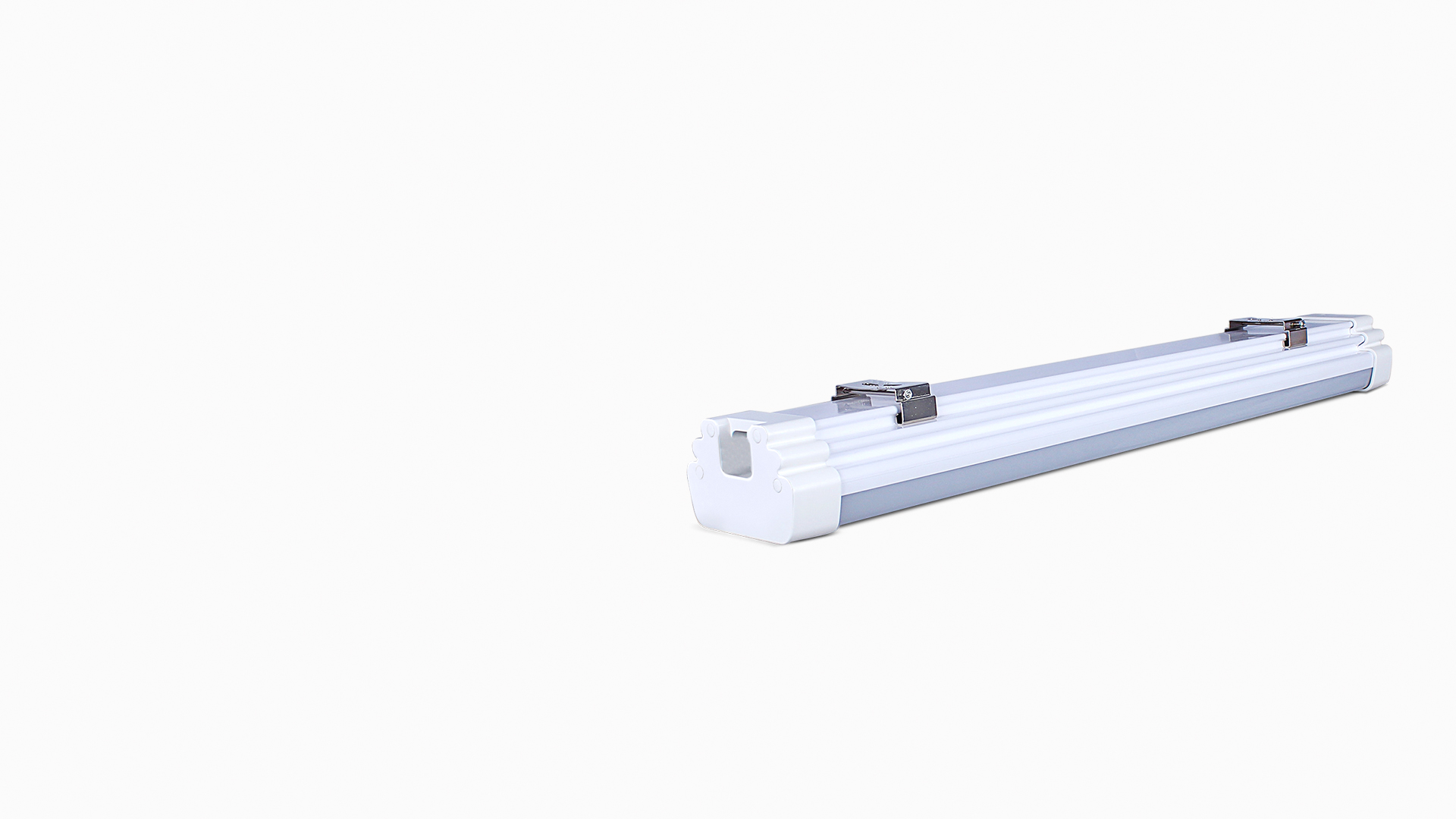

The Serie TRI-PROOF It is a luminaire with a linear design that is dust, water and corrosion proof, since its casing has IP65 ingress protection and NSF certification. These characteristics allow it to work in various applications such as the mining or food industry.
tri-proof
key features
1. IP65 protection
Withstands pressure washing thanks to its IP65 protection.
2. Protection
IK09 impact protection
3. wide angle
Wide opening angle of 120°
4. Battery
Internal emergency battery (optional) allows 90 minutes of lighting, only for 4 FT and 8 FT models
5. Sensor
Motion sensor and smart photocell functions, integrated within the luminaire
6. hanging kit
Suspension hanging kit (additional accessory)
7. nsf
Meets NSF public health standards for food processing applications.
SPECS
three models
2FT
20W
3,000lm
4FT
36W
5,400lm
8FT
70W
10,500lm
Luminous Efficacy
150lm/W
Input voltage
100 – 277V~
dimmable
0-10V
Color Temperature
3000K
4000K
5000K
irc
>80
Optics
polycarbonate
Opening angle
120°
Operating Temperature
-30 to 40°C
Mounting
Overlay (included)
Discontinued
CUSTOMIZE YOUR LUMINAIRE
guide to order
1
Series
TP – Tri-Proof
2
Model
2FT – 3,000 lumens
4FT – 5,400 lumens
8FT – 10,500 lumens
3
Power supply
D. – Dimmable 0-10V
4
Color Temperature
30 – 3000 Kelvin
40 – 4000 Kelvin
50 – 5000 Kelvin
5
cables and connectors
1 – Cable 30 cm
2 – Long custom cable
6
Emergency battery
1 - Neither
2 – Emergency Battery*
7
Control
No. - Neither
S - Motion sensor
Example: TP-2FT-D-40-1-1-N (Tri-Proof, 2FT 20W, 3000 lm, 4000K, Dimmable 0-10V, 30 cm Cable, 120° Polycarbonate Optics)
Example: TP-4FT-D-50-2-2-S (Tri-Proof, 4FT 36W, 5400 lm, 5000K, Custom Long Cable, Emergency Battery, Sensor
Movement, Optics 120° Polycarbonate)
Example: TP-8FT-D-30-1-2-N (Tri-Proof, 8FT 70W, 10,500 lm, 3000K, 30 cm Cable, Emergency Battery, 120° Polycarbonate Optics)
TP-4FT-D-50-1-1-N
Dimensions per power
2FT
20W / 3,000lm
0.8kg
4FT
36W / 5,420lm
1.4kg
8FT
70W / 10,500lm
2.7kg
ACCESSORIES & COMPLEMENTS
Control & Suspension
TCPR
Remote control compatible with TRI-PROOF Series luminaires, integrates settings for ambient light sensor, motion sensor and emergency battery.
Code: RCTP
suspension hanging kit
2FT/4FT/8FT
Code: HANGKIT
Certifications & Guarantees
NOM-003-SCFI-2014
